Description

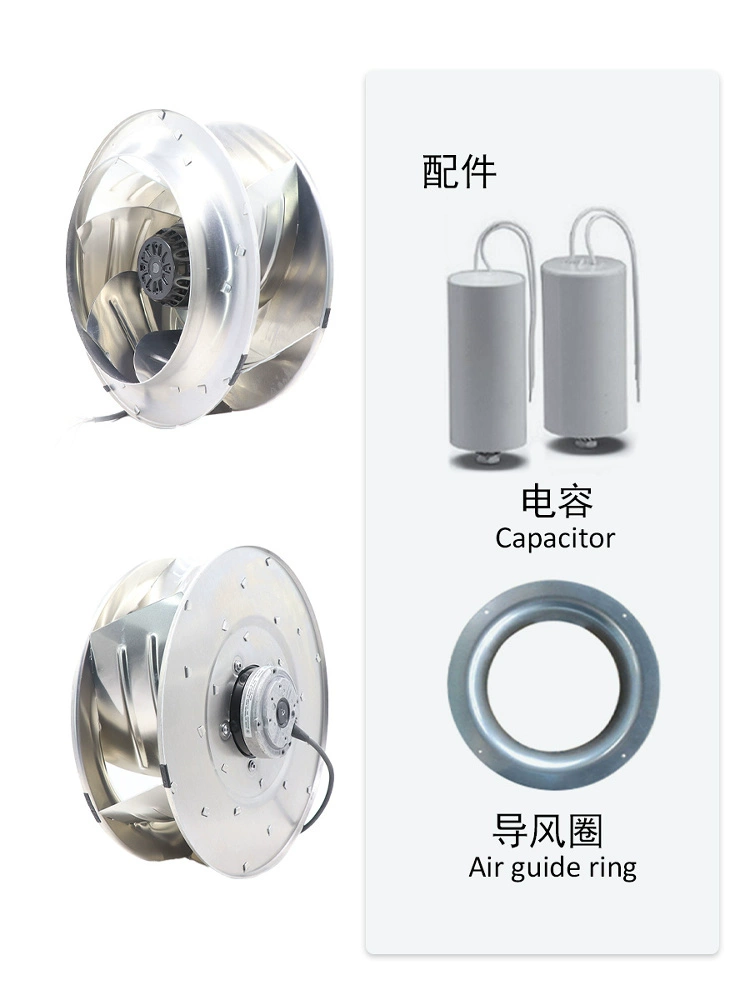

The ebmpapst R4E355-AK05-05 is a powerful 230V AC centrifugal fan with backward-curved blades, widely used as a motorized impeller for duct installations. It has an impeller diameter of 355mm and overall dimensions of Ø360mm x 172mm. Operating at 230V AC, its performance varies with frequency: at 50Hz, it consumes 180W of power, drawing 0.8A of current, and spins at 1400 RPM; at 60Hz, it consumes 260W of power, drawing 1.14A of current, and spins at 1600 RPM. This fan delivers a substantial airflow of 1730 m³/h / 1018 CFM at 50Hz and operates with a noise level of 66 – 69 dBA. It is rated IP44 for protection, features robust ball bearings, and utilizes an aluminum impeller with a black-coated rotor surface, making it an ideal medical clean FFU purification fan and suitable for other demanding ventilation tasks.
R4E355-AK05-05 Fan Parameters

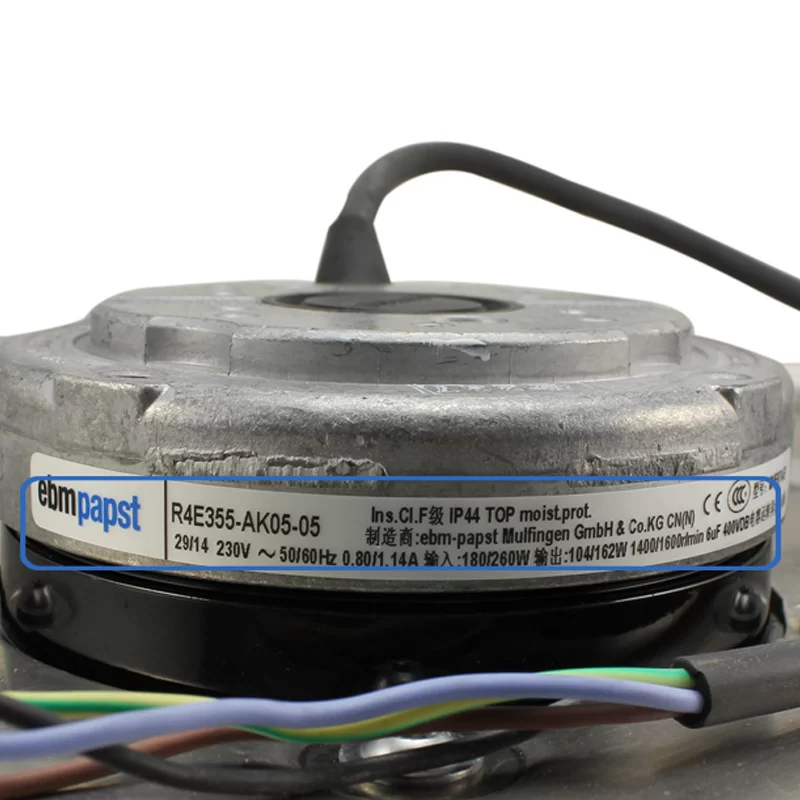

Model Number: R4E355-AK05-05
Manufacturer: ebmpapst
Type: AC Centrifugal Fan / Motorized Impeller (Backward-Curved, Single Inlet)
Overall Dimensions: Ø360mm x 172mm
Impeller Diameter: 355mm
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Rated Current:
50Hz: 0.8A
60Hz: 1.14A
Rated Power:
50Hz: 180W
60Hz: 260W
Speed:
50Hz: 1400 RPM
60Hz: 1600 RPM
Airflow (Free Air, at 50Hz): 1730 m³/h / 1018 CFM
Static Pressure (at 50Hz): Up to 201 Pa
Noise Level: 66 – 69 dBA
IP Rating: IP44
Connector: 4 Wire Leads
Bearing Type: Ball Bearing
Impeller Material: Aluminum sheet, laser-welded
Rotor Surface: Black coated
Operating Temperature: -25°C to +55°C
Weight: 4.7 kg
Features: External rotor motor, Thermal Overload Protector, Impedance protected
Approvals/Certifications: CE, CCC, UL, CSA, VDE
Key Application: Medical clean FFU purification fan
