Description

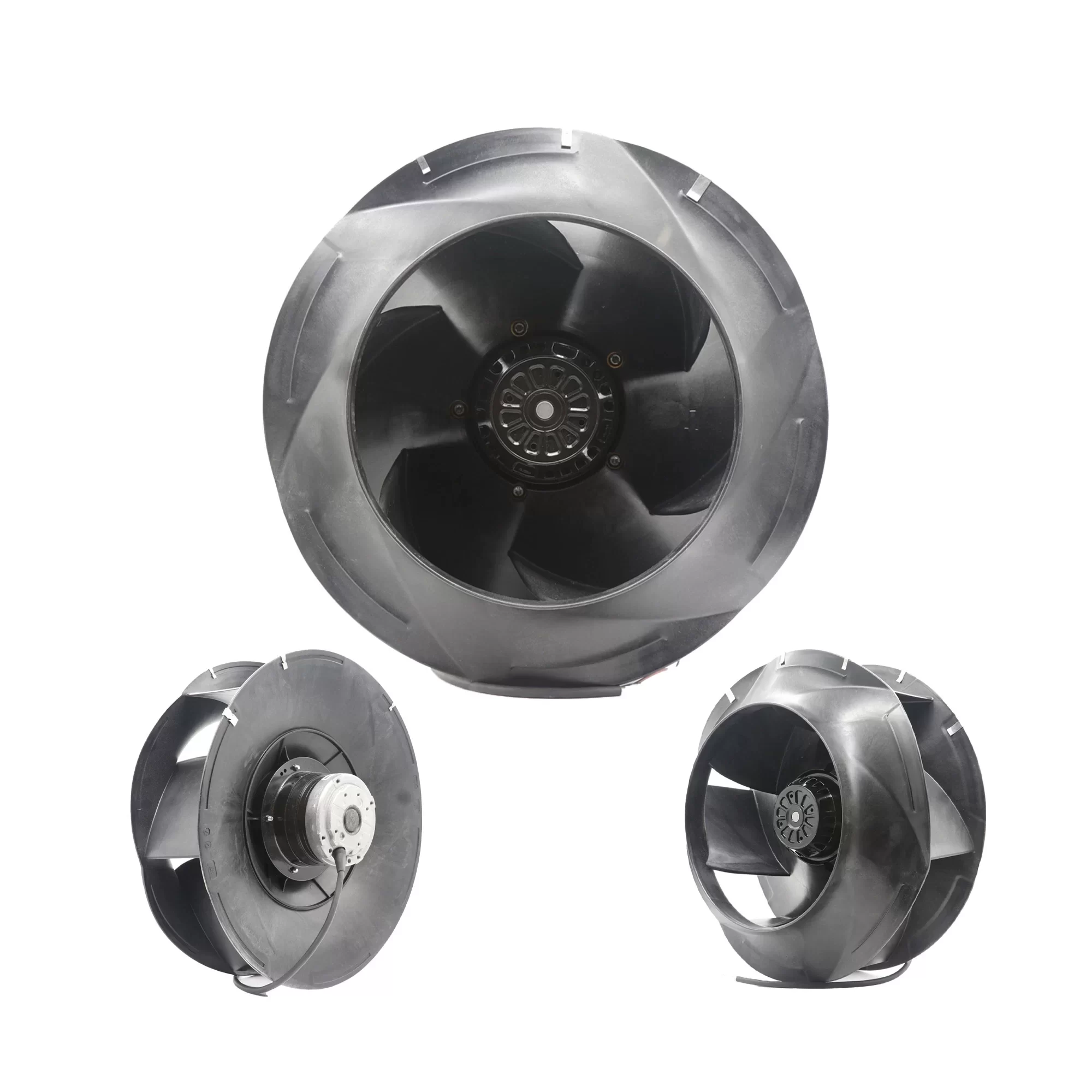

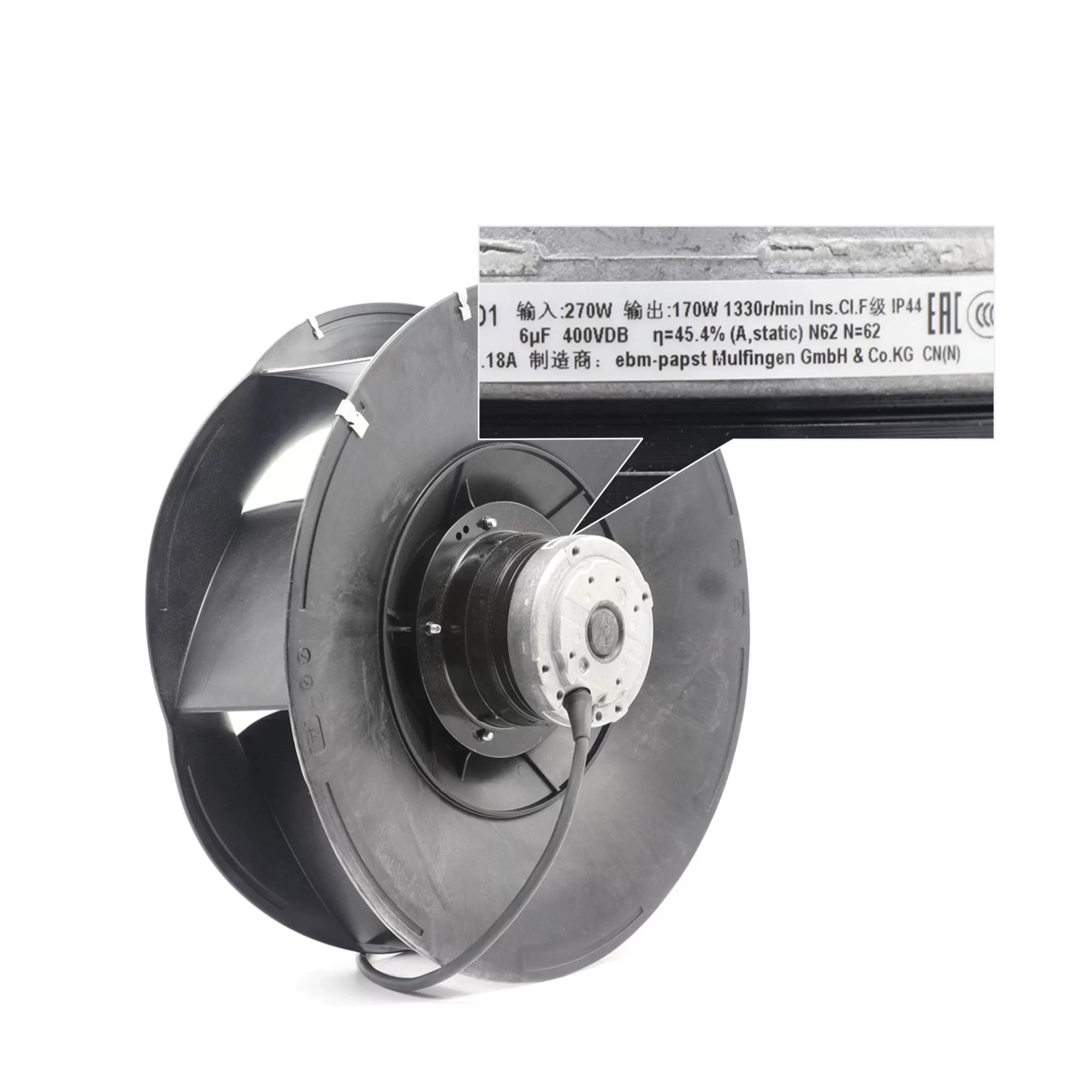

The ebmpapst R4E355-RB10-01 is an AC Centrifugal Fan with a single-phase motor with a 355mm diameter. It operates on 230VAC at 50Hz, drawing 1.18A of current, consuming 270W of power, and achieving a speed of 1330 RPM. This fan has a protection class of I and an IP44 ingress protection level. The fan features a durable ball bearing system and includes a thermal overload protector. It has a die-cast aluminum housing and a PP plastic impeller. The fan’s key features include an F insulation class and F1-2 humidity class, making it a reliable solution for various industrial and air handling applications.
R4E355-RB10-01 Fan Parameters
Model: R4E355-RB10-01
Manufacturer: ebmpapst
Type: AC Centrifugal Fan with Single-Phase Motor
Motor: M4E074-GA
Dimensions: 355 mm diameter
Number of blades: 6
Rated Voltage: 230 VAC
Frequency: 50 Hz
Current Draw: 1.18 A
Power Input: 270 W
Fan Speed: 1330 RPM
Starting Current: 2.2 A
Motor Capacitor: 6 µF
Capacitor Voltage: 400 VDB
Weight: 7.5 kg
Bearing Type: Ball Bearing
Protection Level: IP44
Protection Class: I (if protective earth is connected by customer)
Insulation Class: F
Humidity Class: F1-2
Motor Protection: Thermal overload protector (TOP) wired internally
Termination: Terminal box
Cable Exit: Variable
Housing Material: Die-cast aluminum
Impeller Material: PP plastic
Surface of Rotor: Thick layer passivated
Direction of Rotation: Clockwise, seen on rotor
Mounting Position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensate Discharge Holes: Rotor-side
Operation Mode: S1
Touch Current: < 0.75 mA
Operating Temperature: -25 to 60 °C
Product Conforming to Standard: CE
Approval: CCC
Application: Industrial and air handling applications.
