Description

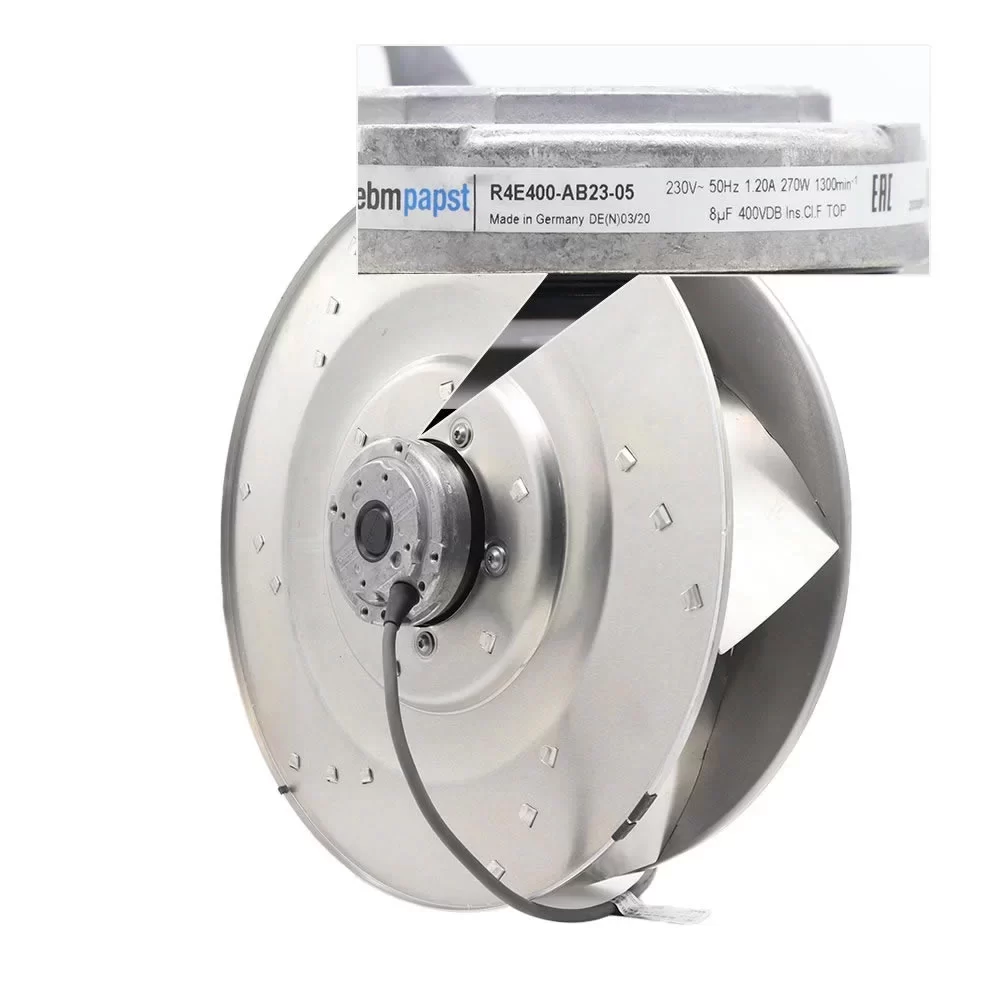

The ebmpapst R4E400-AB23-05 is a high-performance 230VAC single-phase AC Centrifugal Fan featuring 6 backward-curved blades with an Impeller Size of 400 mm and overall Dimensions of 404 x 404 x 162 mm. Specifically engineered for mission-critical industrial ventilation and air handling units, this unit is driven by the M4E074-EI external rotor motor with maintenance-free ball bearings and an 8.0 µF / 400 VDB (P0 CE) capacitor connection. Operating on a 230 VAC 50 Hz supply, it delivers a Power Input of 270 W and a Current Draw of 1.2 A at a rated speed of 1300 RPM under running at free air (fa) conditions. Featuring a rugged aluminum sheet impeller joined by tabs and a black coated rotor surface, it ensures superior thermal management with IP44 protection, F1-2 humidity class, and an extended service life in continuous S1 environments at the end.
R4E400-AB23-05 Fan Parameters
Model Number: R4E400-AB23-05
Motor Model: M4E074-EI
Manufacturer: ebmpapst
Type: AC Centrifugal Fan – Backward-curved
Impeller Size: 400 mm
Dimensions: 404 x 404 x 162 mm
Weight: 5.1 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 Hz
Method of Obtaining Data: fa (Running at free air)
Current Draw: 1.2 A
Power Input: 270 W
Rated Speed: 1300 RPM
Max. Air Flow: 1971.8 CFM (3350.0 m³/h / 55.83 m³/min)
Max. Static Pressure: 0.0 Pa (at fa condition)
Capacitor: 8.0 µF / 400 VDB
Capacitor Standard: P0 (CE)
Number of Blades: 6
Impeller Material: Aluminum sheet, joined by tabs
Rotor Surface: Coated in black
Direction of Rotation: Clockwise (viewed toward rotor)
Insulation Class: “F”
Degree of Protection: IP44
Humidity Class: F1-2
Touch Current: < 0.75 mA
Motor Protection: Thermal overload protector (TOP) wired internally
Condensate Discharge Holes: None
Installation Position: Any
Mode: S1
Protection Class: I
Max. Ambient Temperature: 45 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC
Application
The ebmpapst R4E400-AB23-05 fan is the primary cooling component for industrial air handling units, large-scale ventilation systems, and specialized fume extraction requiring high-static 230V 50Hz single-phase centrifugal airflow with a 404mm backward-curved aluminum impeller.
