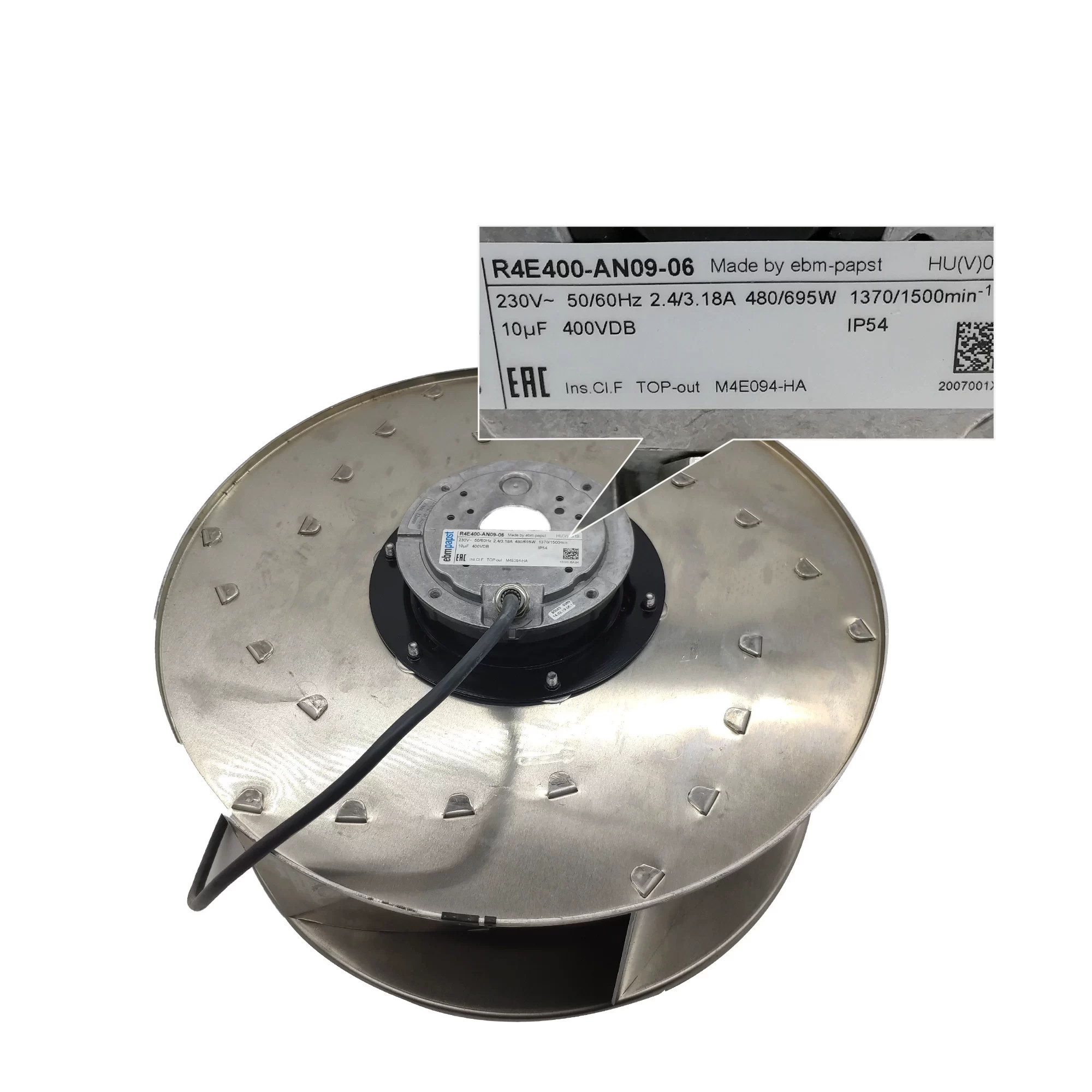

R4E400-AN09-06 ebmpapst 230V AC Centrifugal Fan

Description

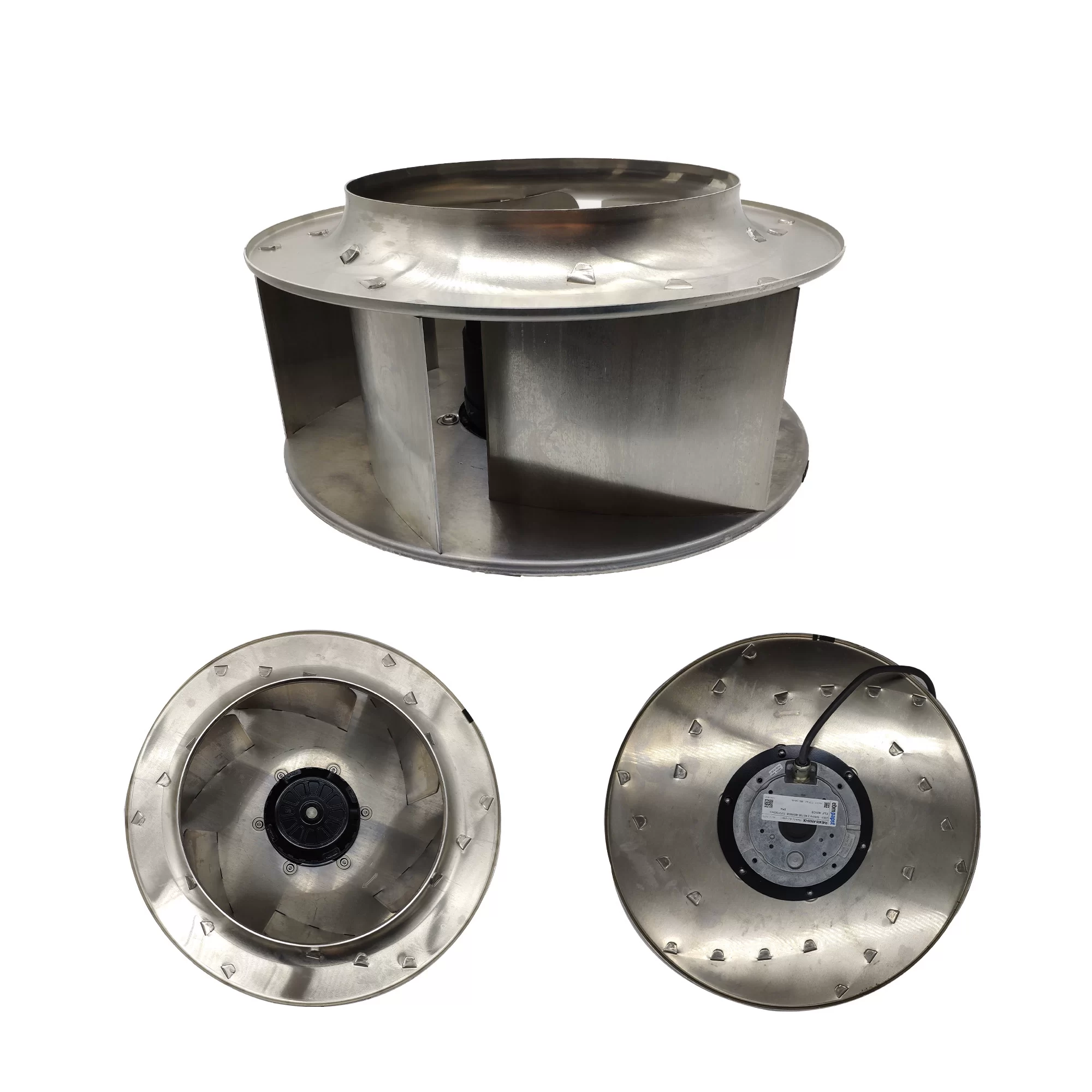

The ebmpapst R4E400-AN09-06 is an AC Centrifugal Fan with a 400mm diameter. It is a dual-frequency product operating on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 2.4A of current, consumes 480W of power, and achieves a speed of 1370 RPM. When running at 60Hz, the current is 3.18A, power is 695W, and the speed reaches 1500 RPM. This fan weighs 9.1 kg and features a durable ball bearing system and an IP54 ingress protection level. With its backward-curved design, it is ideal for demanding ventilation, air conditioning, and industrial process applications.

R4E400-AN09-06 Fan Parameters
Model: R4E400-AN09-06
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Dimensions: 404 x 100 x 188 mm
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Weight: 9.1 kg
Bearing Type: Ball Bearing
Protection Level: IP54
Operating Temperature: -25 to 45°C
Direction of Rotation: Clockwise, seen on rotor

At 230V/50Hz:
Current Draw: 2.4 A
Power Input: 480 W
Fan Speed: 1370 RPM
Airflow: 4120 m³/h

At 230V/60Hz:
Current Draw: 3.18 A
Power Input: 695 W
Fan Speed: 1500 RPM

Application: Ventilation, air conditioning, industrial process applications.
