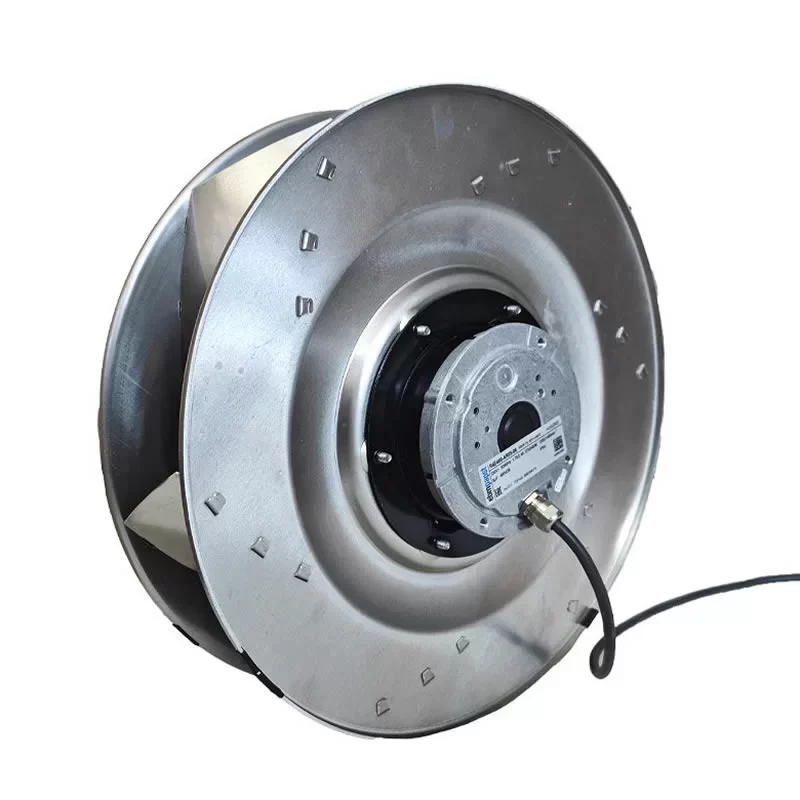

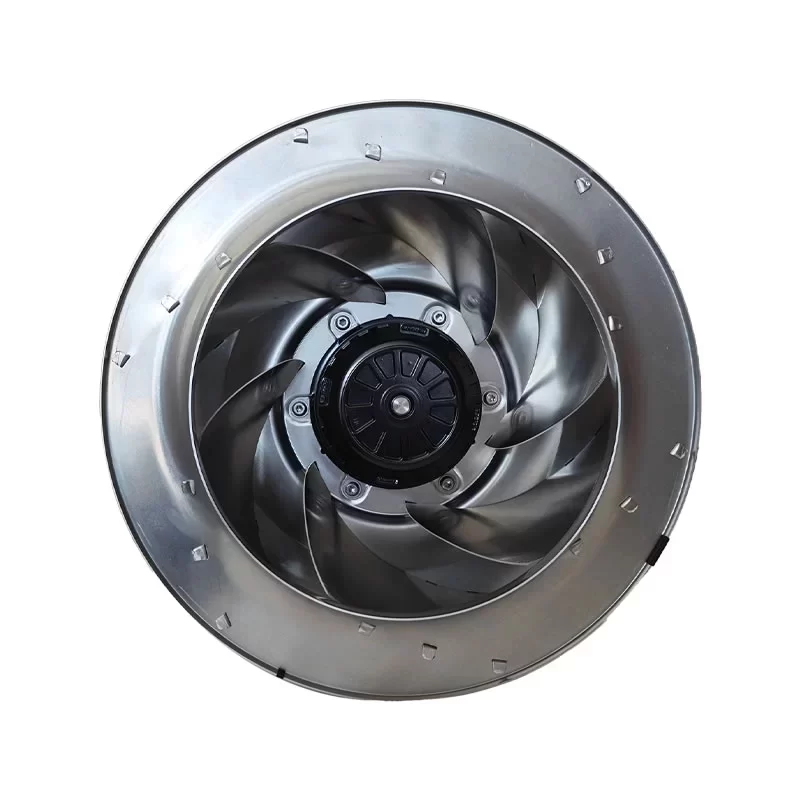

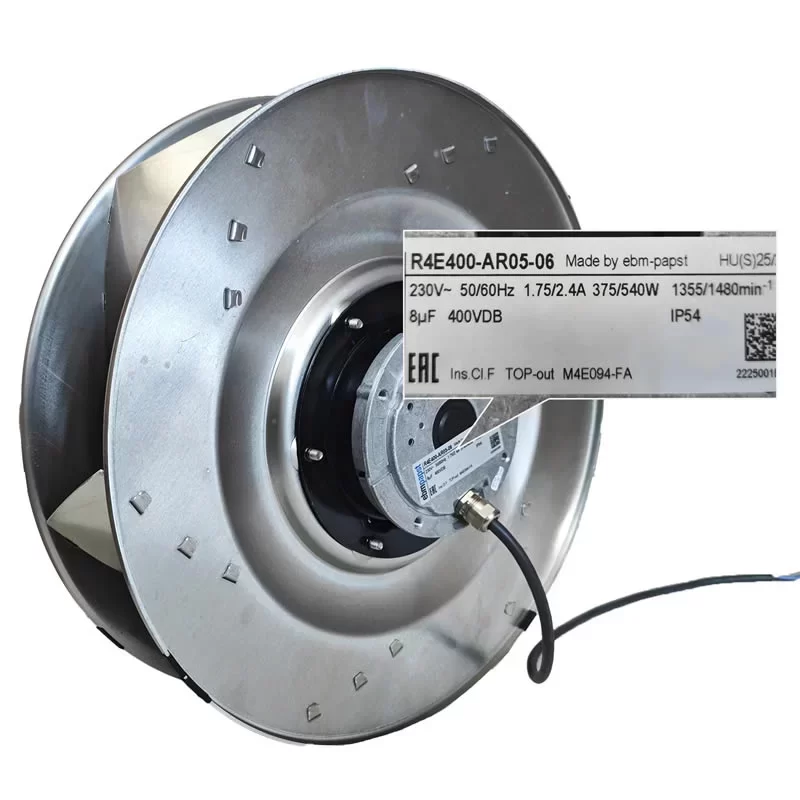

R4E400-AR05-06 ebmpapst 230V 400mm AC Centrifugal Fan

Description

The ebmpapst R4E400-AR05-06 is a heavy-duty single-phase AC centrifugal fan with backward-curved blades, powered by the high-torque M4E094-FA external rotor motor. This 400 mm unit is engineered for high-pressure air displacement, delivering a static efficiency of 43% (reaching a grade of N62 per 2015 standards). Unlike standard plastic models, it features a robust 6-blade impeller constructed from aluminum plate and a black-painted rotor surface, ensuring maximum durability for S1 continuous operation in demanding environments. Optimized for 230 VAC operation, it requires an 8 µF capacitor and supports a wide ambient temperature range down to -40 °C. Equipped with premium ball bearings, IP54 protection, and internal thermal overload monitoring via a temperature wire (TW), the R4E400-AR05-06 provides a professional-grade, high-capacity cooling solution for industrial ventilation and HVAC systems.

R4E400-AR05-06 Fan Parameters
Model Number: R4E400-AR05-06
Motor Number: M4E094-FA
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved)
Size: 400 mm
Weight: 7 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Power Consumption: 375 W (@ 50 Hz) / 540 W (@ 60 Hz)
Nominal Current: 1.75 A (@ 50 Hz) / 2.4 A (@ 60 Hz)
Starting Current: 3.7 A (@ 50 Hz) / 3.3 A (@ 60 Hz)
Required Capacitor: 8 µF / 400 VDB (P0)
Speed: 1355 RPM (@ 50 Hz) / 1480 RPM (@ 60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 1870 m³/h (At optimum point)
Actual Static Pressure: 300 Pa (At optimum point)
Efficiency: ηes 43% / Efficiency Grade N62
Motor Design: External rotor motor with black paint
Motor Protection: Thermal overload protector (TW)
Insulation Class: Class F
Moisture/Env. Protection: F4-1
Electrical Hookup: Variable cable
Number of Blades: 6
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Radial
Impeller Material: Aluminum plate
Installation Position: Any
Degree of Protection: IP54
Operating Temperature: -40 – +60 °C (50 Hz) / -40 – +50 °C (60 Hz)
Mode: S1
Touch Current: <= 3.5 mA
Standard Compliance: EN 60034-1, CE
Approval Agency: CCC, EAC

Application
The ebmpapst R4E400-AR05-06 centrifugal fan is primarily utilized in precision air conditioning units, industrial ventilation systems, air handlers, cleanroom technology, and high-capacity heat exchangers.
