Description

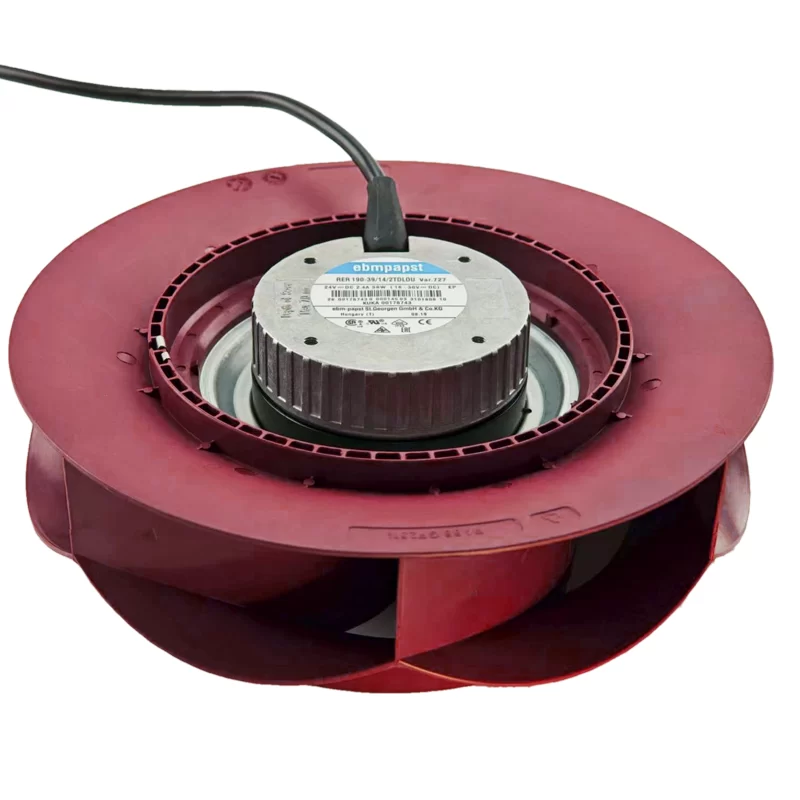

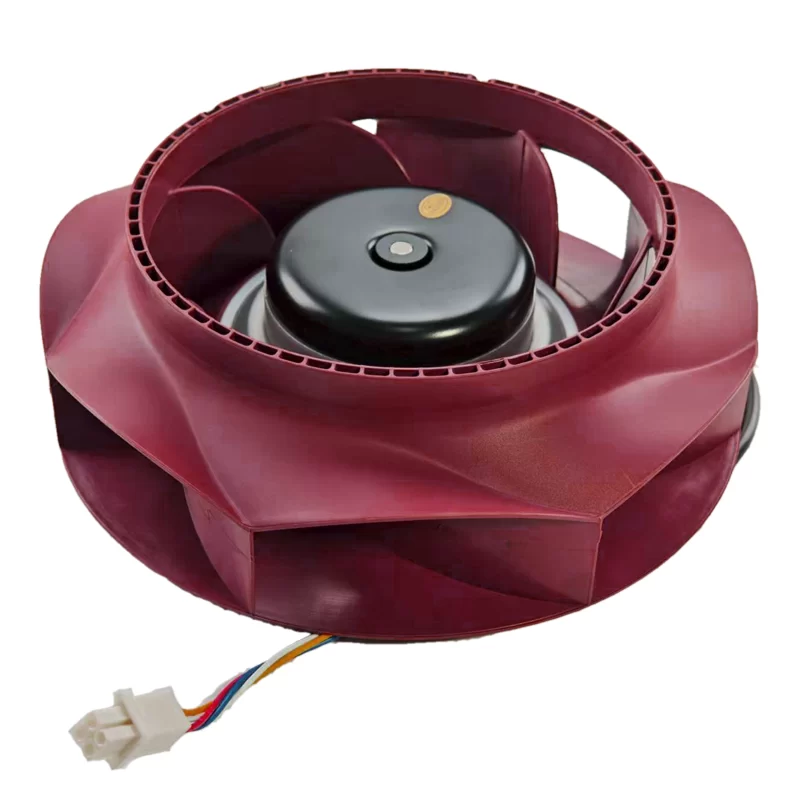

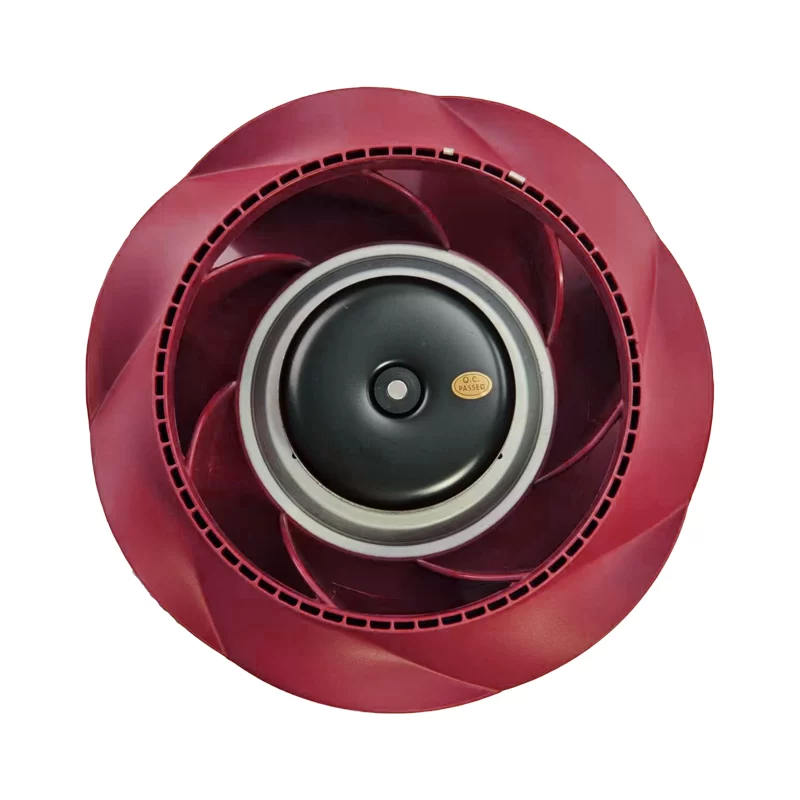

The ebmpapst RER190-39/14/2TDLOU is a high-performance DC Backward Curved Centrifugal Fan with dimensions of 190mm diameter and 69mm depth. Operating on 24VDC, it draws 1.98A of current and consumes 57.1W of power. The fan achieves a speed of 2900 RPM, generating a powerful airflow of 640 m³/h (376.7 CFM) and a high static pressure of 360 Pa. With a low noise level of 68 dBA, a durable ball bearing system, and an IP68 rating for robust protection, this fan is a reliable air movement solution with a life expectancy of 40,000 hours at 40°C, making it ideal for high-pressure applications in demanding environments.
RER190-39/14/2TDLOU Fan Parameters
Model: RER190-39/14/2TDLOU
Manufacturer: ebmpapst
Type: DC Backward Curved Centrifugal Fan
Dimensions: 190 x 69 mm
Rated Voltage: 24 VDC
Current Draw: 1.98 A
Power Input: 57.1 W
Fan Speed: 2900 RPM
Airflow: 640 m³/h (376.7 CFM)
Static Pressure: 360 Pa
Noise Level: 68 dB(A)
Bearing Type: Ball Bearing
Protection: IP68
Termination: 4-wire lead
Life Expectancy: 40,000 hours at 40°C
Application: Ventilation systems, Air conditioners, HVAC, Industrial machinery in harsh environments
