Description

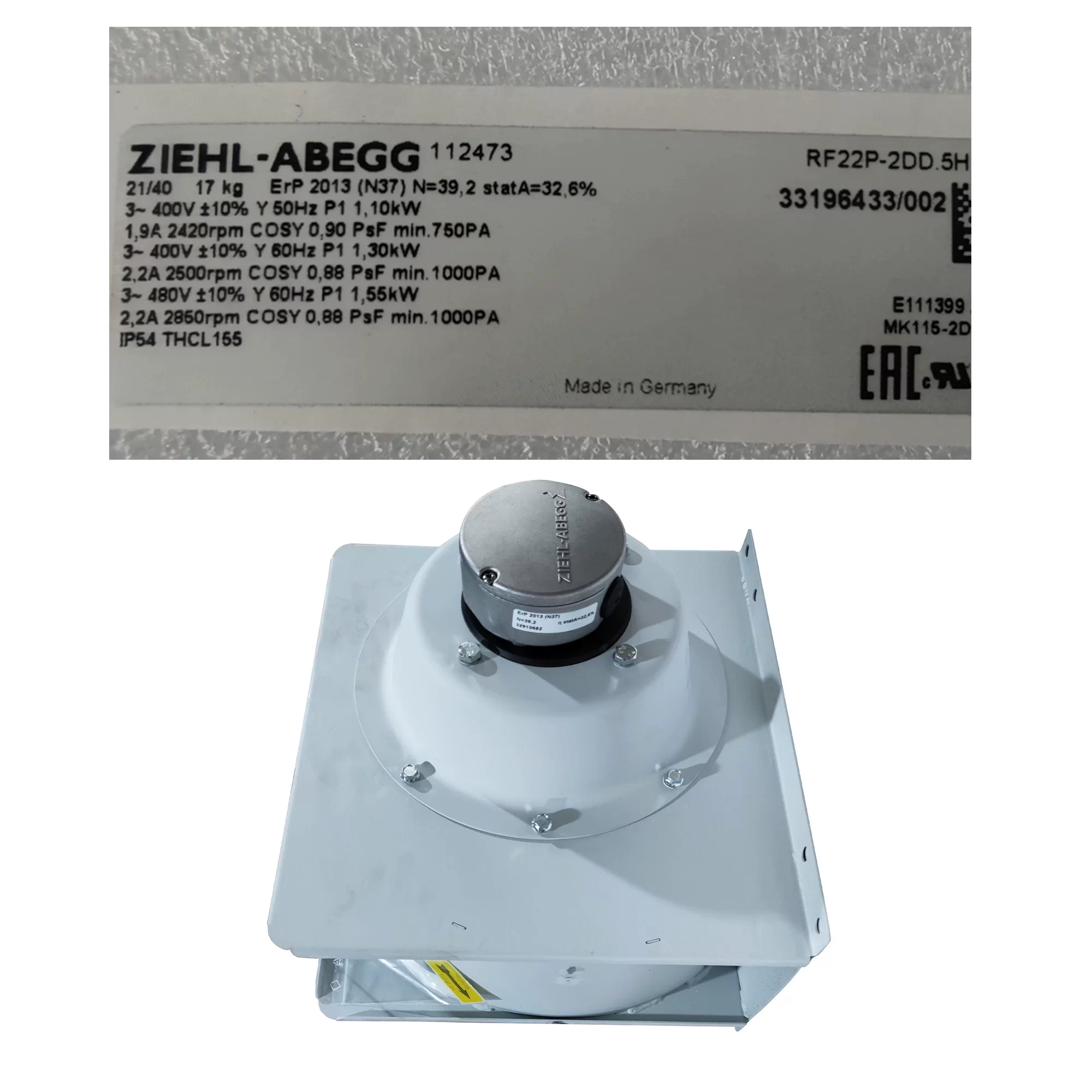

The ZIEHL-ABEGG RF22P-2DD.5H.1R is a high-performance 3-phase AC Centrifugal Fan with a 225 mm impeller, specifically engineered for intensive thermal management in industrial frequency converters and high-density power conversion systems. Driven by a high-torque external rotor motor with THCL 155 (Class F) insulation and IP54 protection, this unit features flexible power ratings up to 1.55 kW at 480 V (60 Hz). Operating at a high rated speed of 2850 RPM, it requires a significant Minimum Static Pressure (PsF min. 1000 Pa) at 60 Hz to ensure optimal motor cooling and operational stability. Constructed with a heavy-duty galvanized sheet steel impeller and a rugged die-cast aluminum motor housing, this 17.0 kg German-engineered unit ensures maximum mechanical stability and long-term performance for mission-critical industrial applications at the end.
RF22P-2DD.5H.1R Fan Parameters
Model Number: RF22P-2DD.5H.1R
Manufacturer: ZIEHL-ABEGG (Made in Germany)
Type: 3-Phase AC Centrifugal Fan (Backward-curved)
Impeller Size: 225.0 mm
Weight: 17.0 kg
Bearing Type: Ball bearing with long-time lubrication
Nominal Voltage: 3~ 400 – 480 VAC ±10% (Y)
Phase: 3~
Frequency: 50/60 Hz
Rated Performance (50 Hz 400V): 1.10 kW | 1.9 A | 2420 RPM | cos φ 0.90
Rated Performance (60 Hz 400V): 1.30 kW | 2.2 A | 2500 RPM | cos φ 0.88
Rated Performance (60 Hz 480V): 1.55 kW | 2.2 A | 2850 RPM | cos φ 0.88
Max. Air Flow: 794.6 CFM (1350.0 m³/h)
Max. Static Pressure: 122.4 mmH₂O (1200.0 Pa)
Working Air Flow: 1350.0 m³/h
Static Pressure Increase: 1200.0 Pa
Minimum Static Pressure (PsF min): 750.0 Pa (at 50 Hz) / 1000.0 Pa (at 60 Hz)
Efficiency Grade (ErP): N=39.2 (ErP 2013 compliant)
Static Efficiency (η statA): 32.6 %
Motor Type: External rotor motor
Motor Protection: Integrated thermal protection
Insulation Class: THCL155 (Class F)
Degree of Protection: IP54
Electrical Hookup: Lead wires (Star connection)
Number of Blades: 7 (Backward-curved)
Direction of Rotation: Clockwise (viewed toward rotor)
Impeller Material: Sheet steel, galvanized
Housing Material: Die-cast aluminum (Motor portion)
Operation Mode: S1 (Continuous operation)
Sound Pressure Level: 74.0 dB(A)
Service Life (L10): 40,000 h (at 40 °C)
Operating Temperature: -20 – +40 °C
Storage Temperature: -40 – +80 °C (at 65% RH)
Standard Compliance: ErP 2013; CE; EN 60335-1
Approval Agency: VDE; UL; CCC; EAC
Application
The ZIEHL-ABEGG RF22P-2DD.5H.1R 3-phase fan is the primary cooling component for heavy-duty industrial frequency converters and power distribution cabinets requiring high-velocity radial airflow and strict minimum static pressure levels for operational safety.
