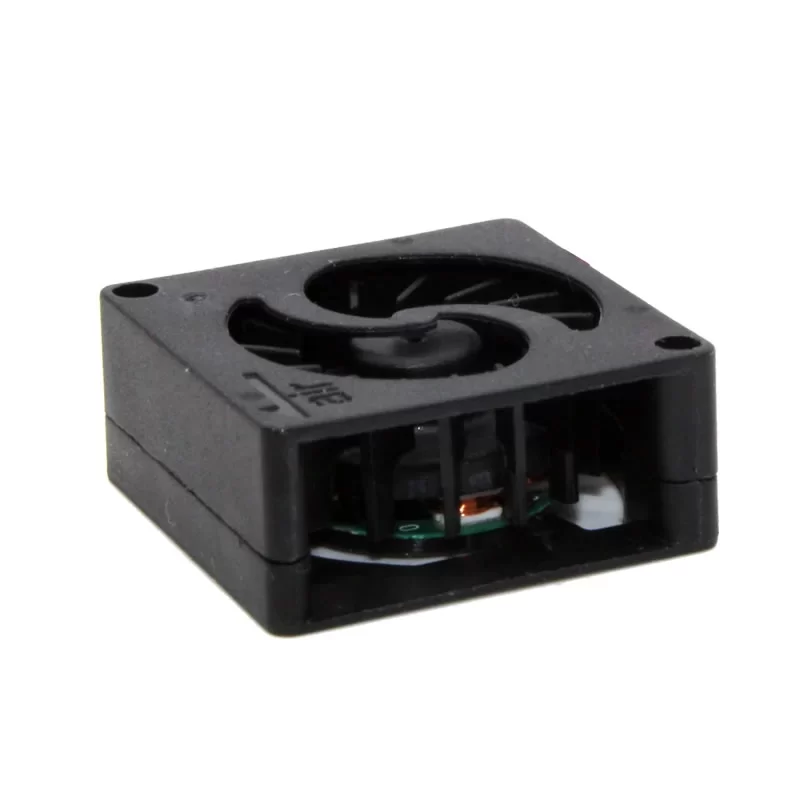

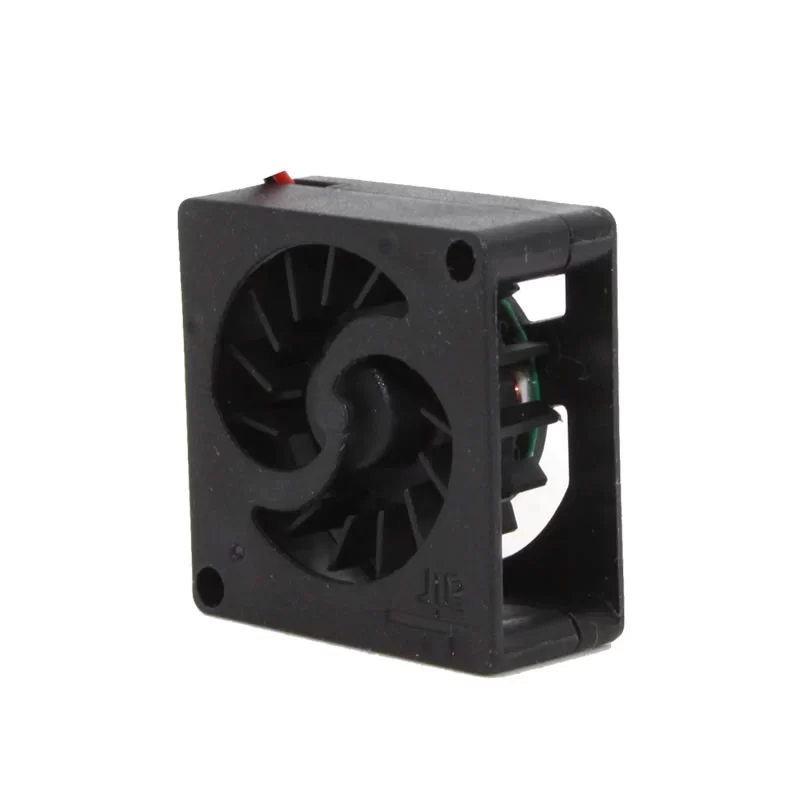

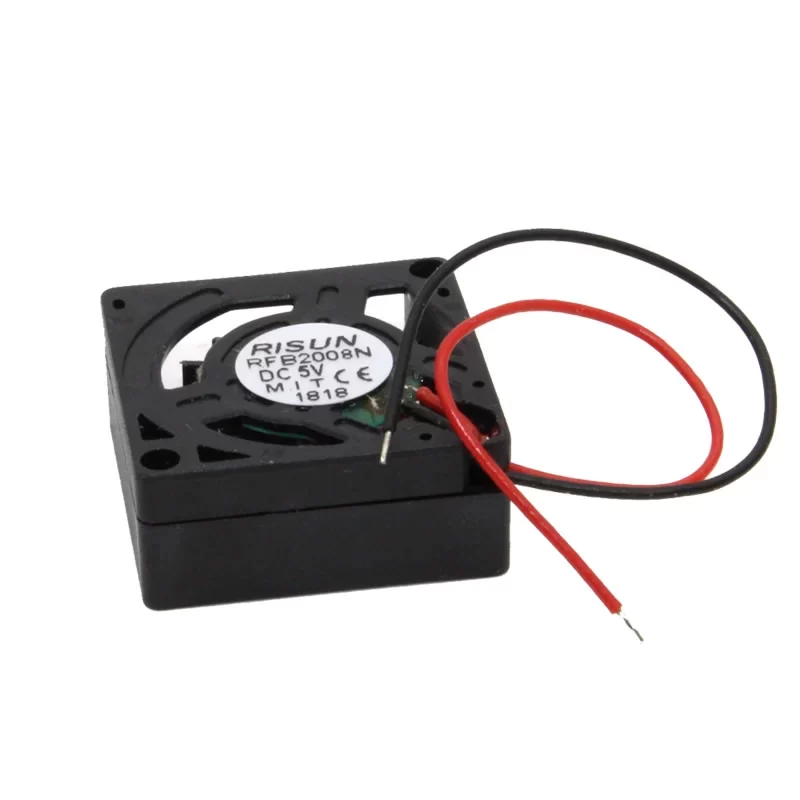

RFB2008N RISUN 5V DC Micro Blower 20mm

Description

The RISUN RFB2008N is a Micro Blower (Centrifugal Blower) with dimensions of 20 x 20 x 8.5 mm. It operates on a nominal voltage of 5.0 VDC. The blower achieves a high speed of 14,000 RPM, consuming 0.625 W of power and drawing a maximum current of 0.145 A. It delivers an air flow of 1.51 m³/h (0.89 CFM) and a maximum static pressure of 73.6 Pa (0.294 inAq). This two-wire fan is protected by an IP58 rating and includes Lock Rotor and Auto Restart protection, making it ideal for extremely compact, high-pressure ventilation in portable electronics.

RFB2008N Fan Parameters
Model: RFB2008N
Manufacturer: RISUN
Type: Micro DC Blower (Centrifugal Blower)
Dimensions (measuring): 20 x 20 x 8.5 mm
Nominal Voltage: 5.0 VDC
Voltage Range: 4.5 VDC ~ 5.5 VDC
Speed: 14000 RPM
Power Consumption: 0.625 W
Current Draw: 0.125 A (Max 0.145 A)
Max. Airflow: 1.51 m³/h (0.89 CFM)
Max. Static Pressure: 73.6 Pa (0.294 inAq)
Noise Level: 31.1 dB(A)
Weight: 2.9 g
Bearing Type: Self-lubricative bearing
Motor Design: Brushless DC Motor
Motor Protection: Lock rotor, Auto Restart, Polarity
Termination: 2 Wire Leads (Standard 50 mm length)
Service Life L10 at 45 °C: 25000 h
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 60 °C
Approvals: CE, RoHS
IP Rating: IP58

Application
The RISUN RFB2008N Micro Blower is a specialized, low-profile component designed for high-static pressure applications within miniature electronics. Primary applications include cooling pico projectors, micro fuel cells, portable gas/particulate detectors, specialized mask/goggle ventilation, and other compact embedded systems requiring focused, dust/water-protected airflow.
