Description

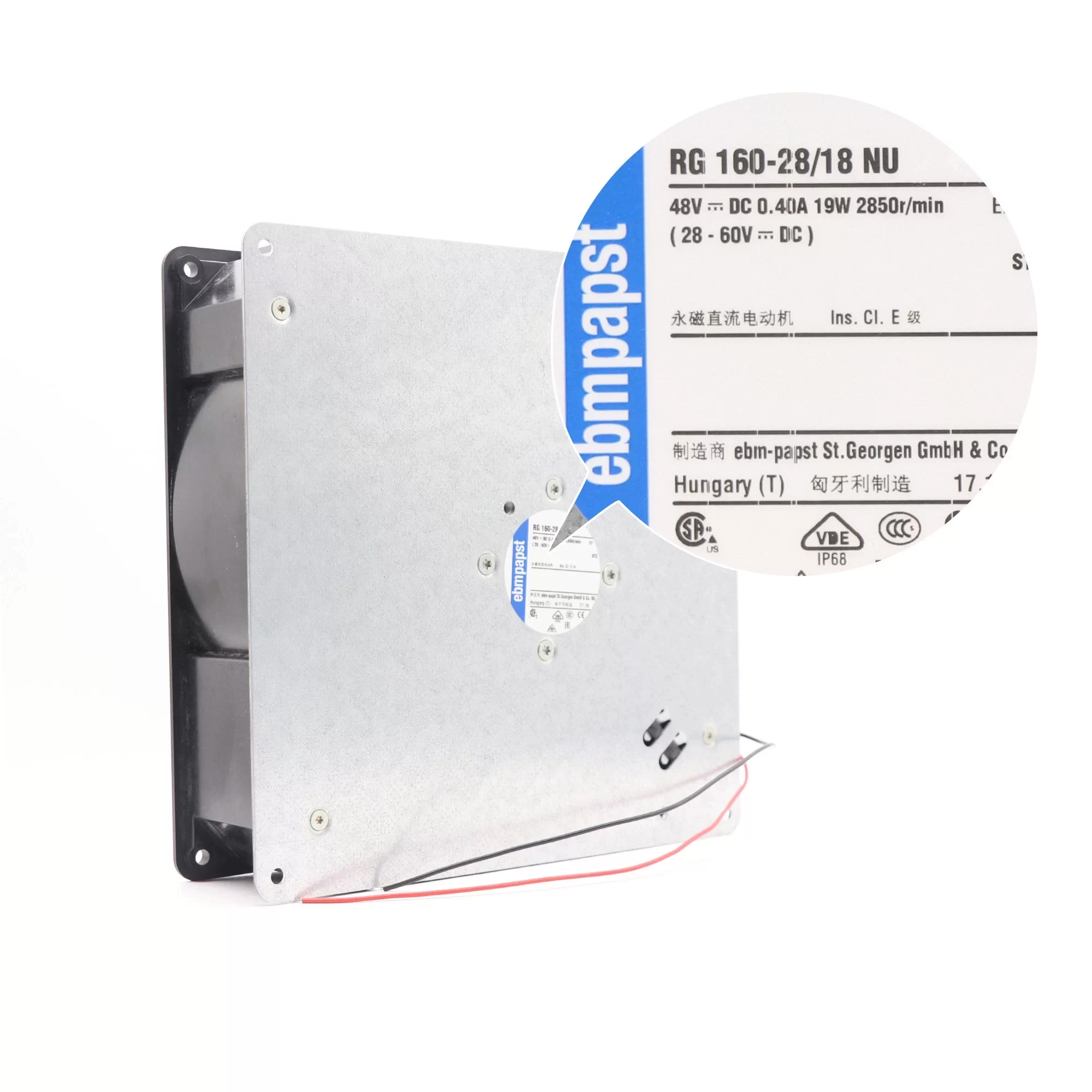

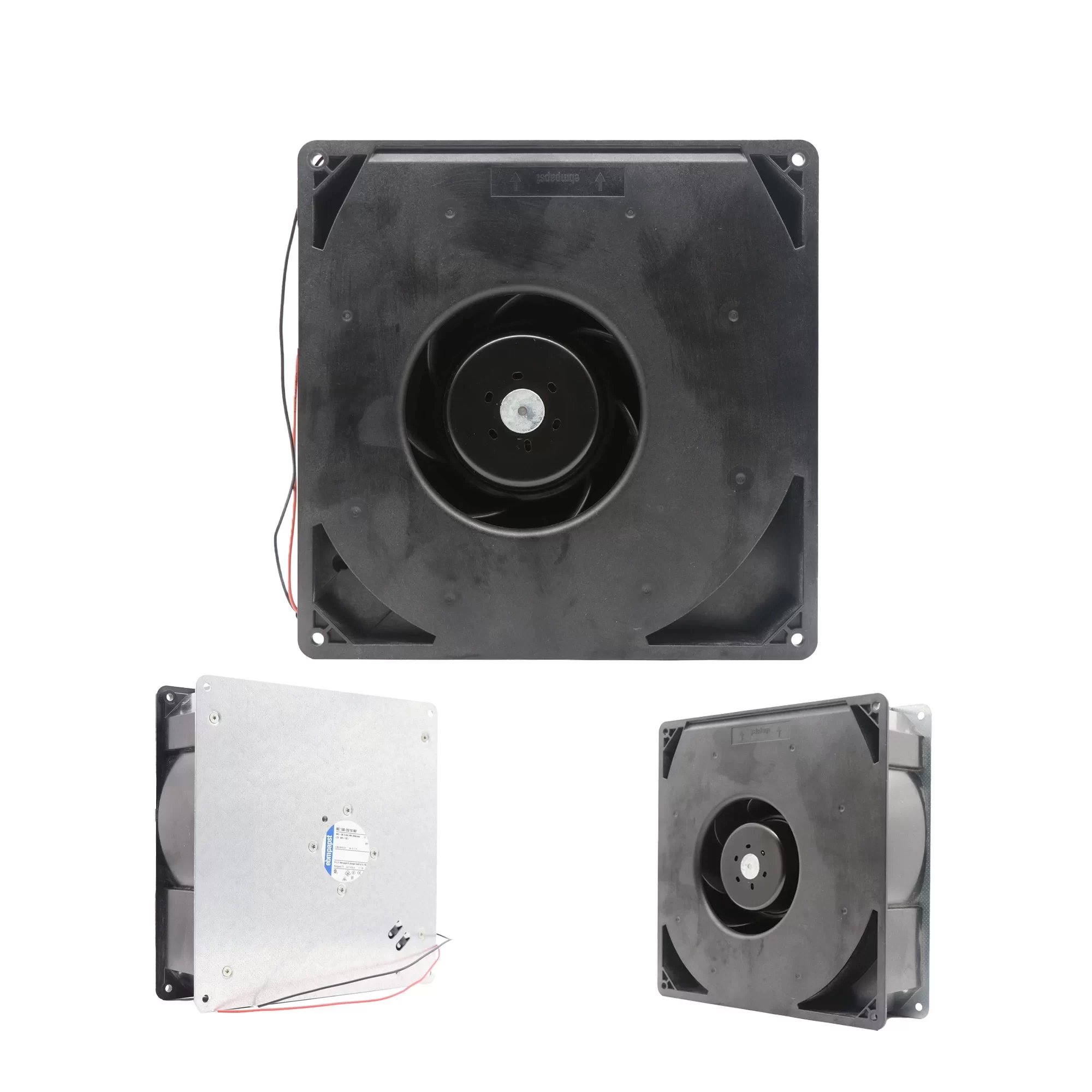

The ebmpapst RG160-28/18NU is a DC Centrifugal Blower measuring 220x220x56mm. It operates on 48VDC with a wide operating voltage range of 28 to 60VDC. This fan draws 0.40A of current, consumes 19W of power, and achieves a speed of 2850 RPM. It provides an airflow of 123 CFM (3.44 m³/min) at a noise level of 66 dBA. The fan features a durable ball bearing system and has a high IP68 ingress protection level, making it suitable for harsh environments. With a glass-fiber reinforced plastic impeller, it is a reliable solution for various industrial and electronic applications requiring powerful airflow.
RG160-28/18NU Fan Parameters
Model: RG160-28/18NU
Manufacturer: ebmpapst
Type: DC Centrifugal Blower
Dimensions: 220 x 220 x 56 mm
Rated Voltage: 48 VDC
Operating Voltage Range: 28 to 60 VDC
Current Draw: 0.40 A
Power Input: 19 W
Fan Speed: 2850 RPM
Airflow: 123 CFM (3.44 m³/min)
Noise Level: 66 dBA
Bearing Type: Ball Bearing
Protection Level: IP68
Weight: 1.4 kg
Termination: 2 Wire Leads
Impeller Material: Glass-fiber reinforced plastic
Operating Temperature: -20 to 70 °C
Application: Industrial and electronic applications.
