Description

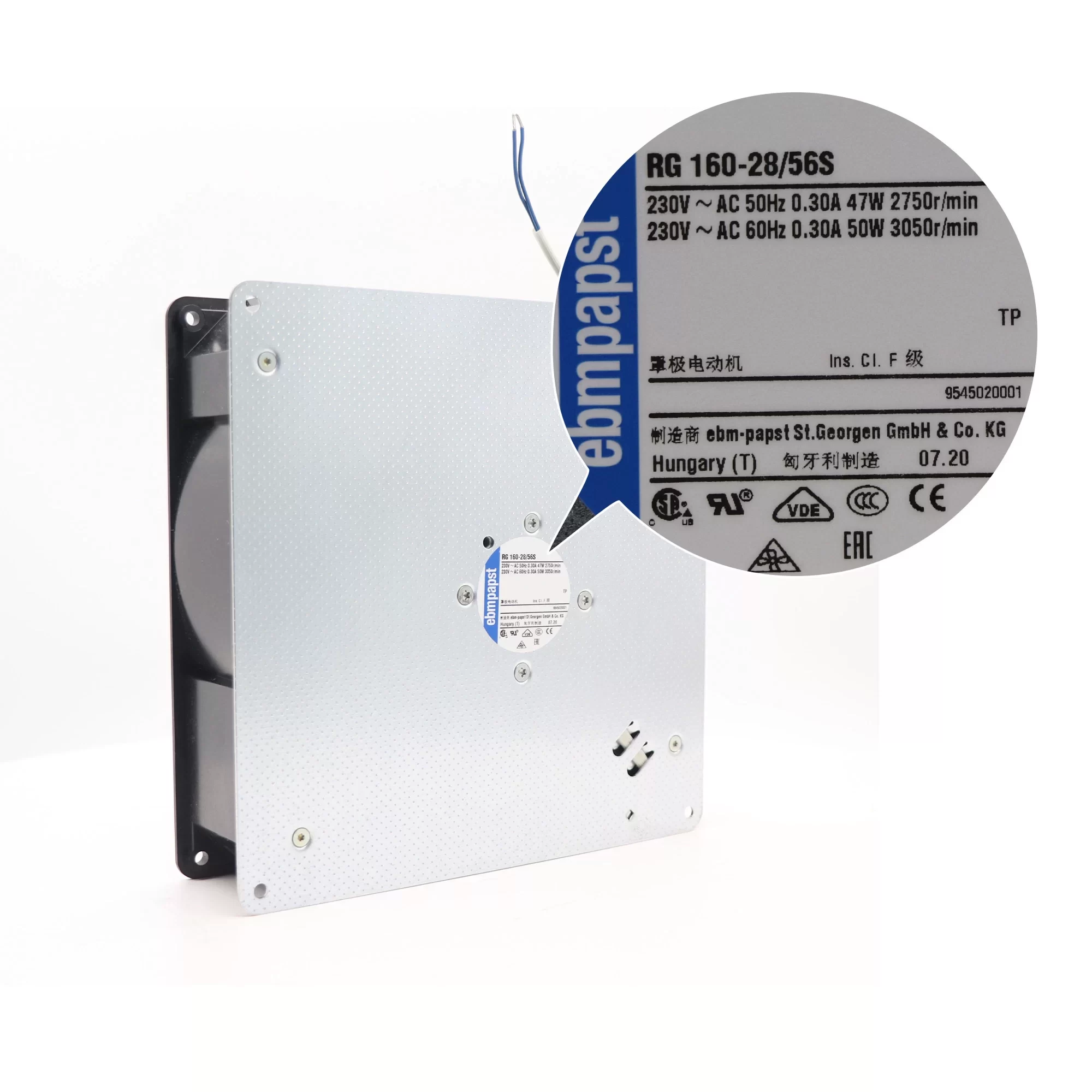

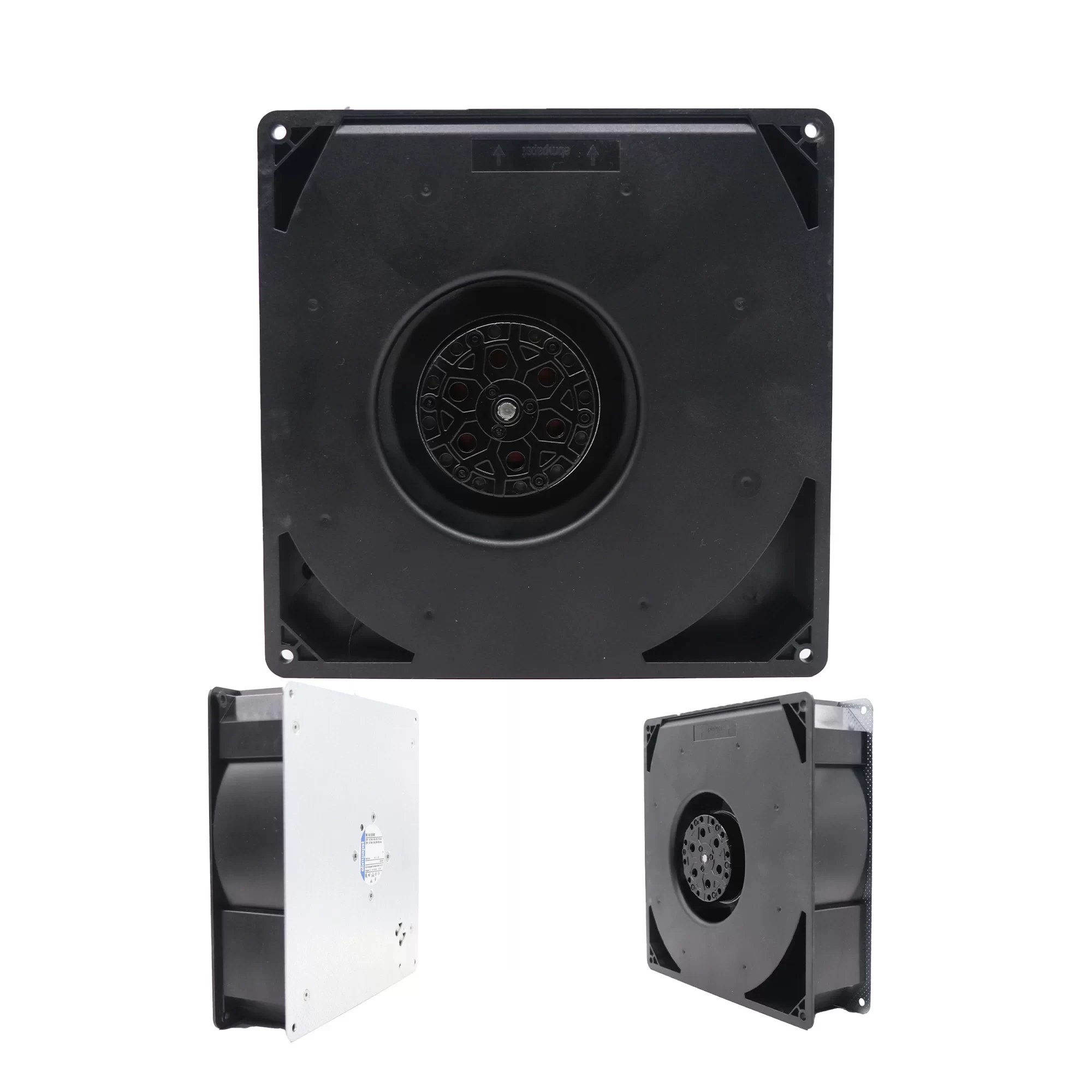

The ebmpapst RG160-28/56S is a robust 230VAC Centrifugal Fan with dimensions of 220x220x56mm, featuring a backward-curved impeller and radial airflow discharge through a housing window. This versatile fan operates on 230VAC and adapts its performance based on frequency: at 50Hz, it draws 0.20A of current and consumes 47.0W of power, achieving a speed of 2750RPM to deliver 202m³/h (118.9CFM) of airflow with a sound level of 66dB(A). When operating at 60Hz, its performance increases to 0.22A of current and 50W of power, with a speed of 3050RPM, providing 240m³/h (141.2CFM) of airflow and a sound level of 69dB(A). Constructed with durable ball bearings, a glass-fiber reinforced PA plastic impeller, and a scroll housing made of glass-fiber reinforced plastic with a galvanized sheet steel base, the RG160-28/56S ensures reliable, long-term operation with a service life of 30000hours at 40°C. Its motor is protected from overload by a thermal switch, and it comes with 2leadsAWG18 for connection, making it an ideal solution for various ventilation and air conditioning systems requiring adaptable and efficient air movement.
RG160-28/56S Fan Parameters
Model: RG160-28/56S
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved impeller)
Phase: 1~
Dimensions: 220 x 220 x 56 mm
Nominal Voltage: 230 V AC
Frequency: 50/60 Hz
Rated Current (50/60 Hz): 0.20 A / 0.22 A
Power Consumption (50/60 Hz): 47.0 W / 50 W
Speed (50/60 Hz): 2750 RPM / 3050 RPM
Airflow (50/60 Hz): 202 m³/h (118.9 CFM) / 240 m³/h (141.2 CFM)
Sound Power Level (50/60 Hz): 6.6 B (66 dB(A)) / 6.9 B (69 dB(A))
Weight: 1.700 kg
Bearing Type: Ball Bearing
Impeller Material: Glass-fiber reinforced PA plastic
Housing Material: Scroll housing made of glass-fiber reinforced plastic, housing base made of galvanized sheet steel
Airflow Direction: Radial (discharge through window in housing)
Direction of Rotation: Counterclockwise, viewed toward rotor
Min. Ambient Temperature: -30 °C
Max. Ambient Temperature: 70 °C
Service Life L10 at 40 °C: 30000 h
Service Life L10 at Maximum Temperature: 15000 h
Termination: 2 leads AWG18
Motor Protection: Protected from overload by thermal switch
Approval: VDE, CSA, UL, CE
Application: Various ventilation and air conditioning systems.
