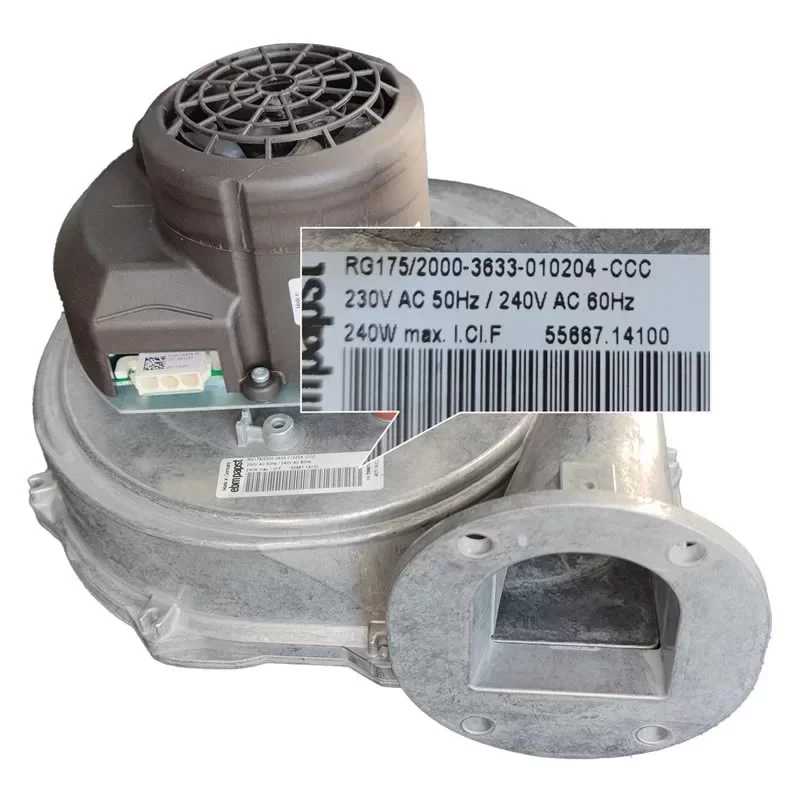

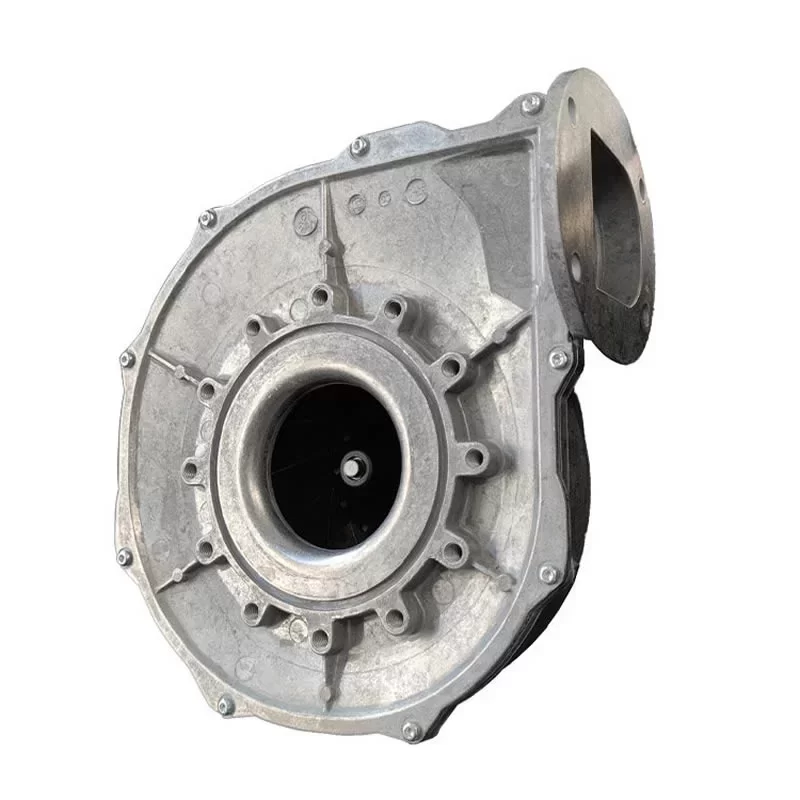

RG175/2000-3633-010204 ebmpapst 230V EC Centrifugal Fan

Description

The ebmpapst RG175/2000-3633-010204 is a high-performance 230VAC EC Centrifugal Fan featuring a 175 mm specialized backward-curved RadiCal impeller and a fully encapsulated EC external rotor motor, specifically engineered for mission-critical cooling in Industrial Frequency Converters and high-pressure AHU systems. Driven by an integrated high-speed electronic commutation system with maintenance-free ball bearings and IP68-rated environmental protection, this 1.45 kg unit operates at 230 VAC delivering a Max. Power Consumption of 240.0 W and a Max. Current Draw of 1.05 A at a rated speed of 8400 RPM. This High-performance unit achieves a Max. Air Flow of 216.0 m³/h (127.1 CFM / 3.60 m³/min) and a Max. Static Pressure of 428.28 mmH₂O (4200.0 Pa / 16.86 inAq). Featuring integrated PWM speed control and a tachometer signal output (4-wire), this unit is optimized for environments requiring extreme reliability, industrial-grade moisture resistance, and high-static pressure management in VFD systems at the end.

RG175/2000-3633-010204 Fan Parameters
Model Number: RG175/2000-3633-010204
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (Backward-curved)
Impeller Size: 175 mm
Weight: 1.45 kg
Origin: Germany
Bearing Type: Ball bearing (Long-time lubrication)
Phase: 1~
Nominal Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Connection Type: 4-wire (PWM speed control / Tachometer signal)
Frequency: 50 Hz
Max. Current Draw: 1.05 A
Max. Power Consumption: 240.0 W
Rated Speed: 8400 RPM
Max. Air Flow: 127.1 CFM (216.0 m³/h / 3.60 m³/min)
Max. Static Pressure: 428.28 mmH₂O (4200.0 Pa / 16.86 inAq)
Working Air Flow: 216.0 m³/h
Static Pressure Increase: 4200.0 Pa
Motor Protection: Electronic blocking / Over-temperature protection
Insulation Class: Class B
Degree of Protection: IP68 (Fully encapsulated motor)
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Impeller Material: PA plastic (Glass-fiber reinforced)
Ambient Temperature (Max.): 60 °C
Min. Operating Temperature: -25 °C
Standard Compliance: CE; EAC; UL; VDE

Application
The ebmpapst RG175/2000-3633-010204 centrifugal fan is the primary cooling component for industrial frequency converters and high-density electronic enclosures requiring IP68-rated waterproof protection and extreme-static pressure performance.
