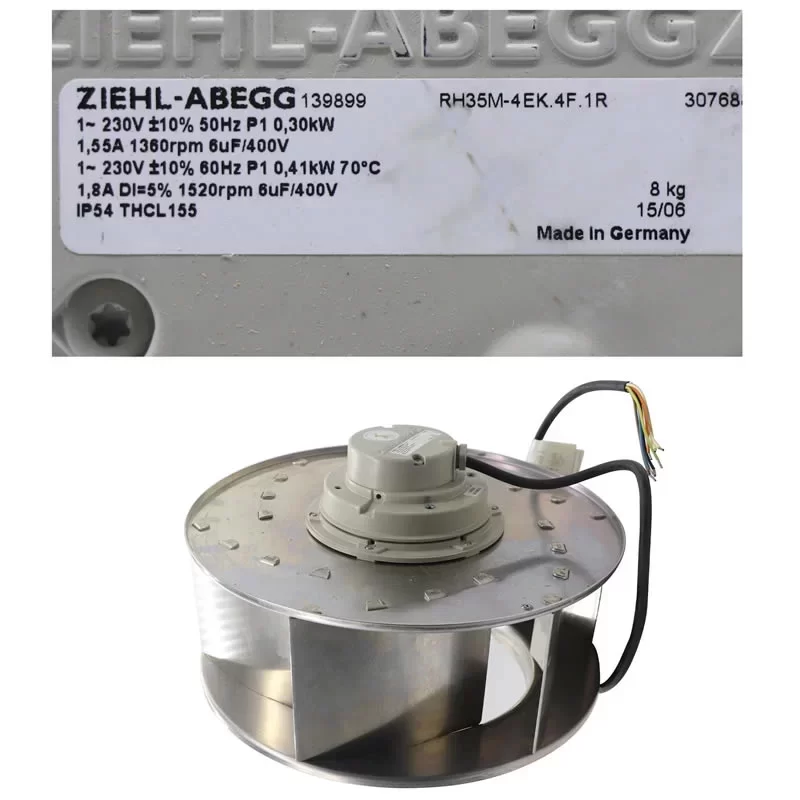

RH35M-4EK.4F.1R Ziehl-Abegg 230V 365mm AC Centrifugal Fan

Description

The Ziehl-Abegg RH35M-4EK.4F.1R is a high-efficiency single-phase AC backward-curved centrifugal fan featuring an upgraded 365 mm bionic Cpro composite impeller. Driven by a 4-pole external rotor motor, this unit is optimized for medium-duty air displacement in environments requiring single-phase (230V) power. Delivering a stable 1360 RPM at 50Hz with a nominal power input of 0.30 kW, it combines a lightweight 8 kg design with a robust IP54 protection rating. Engineered for stability in temperatures up to 70 °C, the RH35M-4EK.4F.1R utilizes specialized blue composite blades to minimize noise and turbulence, making it a reliable solution for precision cooling and commercial ventilation systems.

RH35M-4EK.4F.1R Fan Parameters
Manufacturer: Ziehl-Abegg
Model Number: RH35M-4EK.4F.1R
Type: AC backward-curved centrifugal fan
Phase: 1~
Nominal Voltage: 230 V
Nominal Voltage Range: 220 – 240 VAC
Frequency: 50/60 Hz
Impeller Size: 365 mm
Weight: 8 kg

[Electrical Data]
Input Power (50 Hz): 0.30 kW (300 W)
Input Power (60 Hz): 0.41 kW (410 W)
Nominal Speed (50 Hz): 1360 RPM
Nominal Speed (60 Hz): 1520 RPM
Current Draw (50 Hz): 1.55 A
Current Draw (60 Hz): 1.8 A
Capacitor: 8.0 µF / 400 VDB (Required for operation)
Motor Protection: Thermal contact (TB)
Insulation Class: F
Termination: Terminal box

[Performance & Acoustics]
Max. Air Flow (50 Hz): 1,942.3 CFM (3,300.0 m³/h / 55.0 m³/min)
Max. Static Pressure (50 Hz): 28.55 mmH₂O (280.0 Pa / 1.12 inH₂O)
Sound Power Level: 66 dB(A)
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Radial

[Materials & Construction]
Housing Material: None (Motorized impeller)
Impeller Material: High-performance composite material (Cpro Blue)
Motor Bearing: High-temperature ball bearings
Installation Position: Any
Degree of Protection: IP54

[Reliability & Safety Standards]
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Standard Compliance: EN 60034-1, CE
Approval Agency: UL, VDE, EAC, RoHS

Application
The Ziehl-Abegg RH35M-4EK.4F.1R centrifugal fan is used in compact air handling units, laboratory exhaust systems, commercial kitchen ventilation, electronic cabinet cooling, and heat recovery ventilation (HRV) systems.
