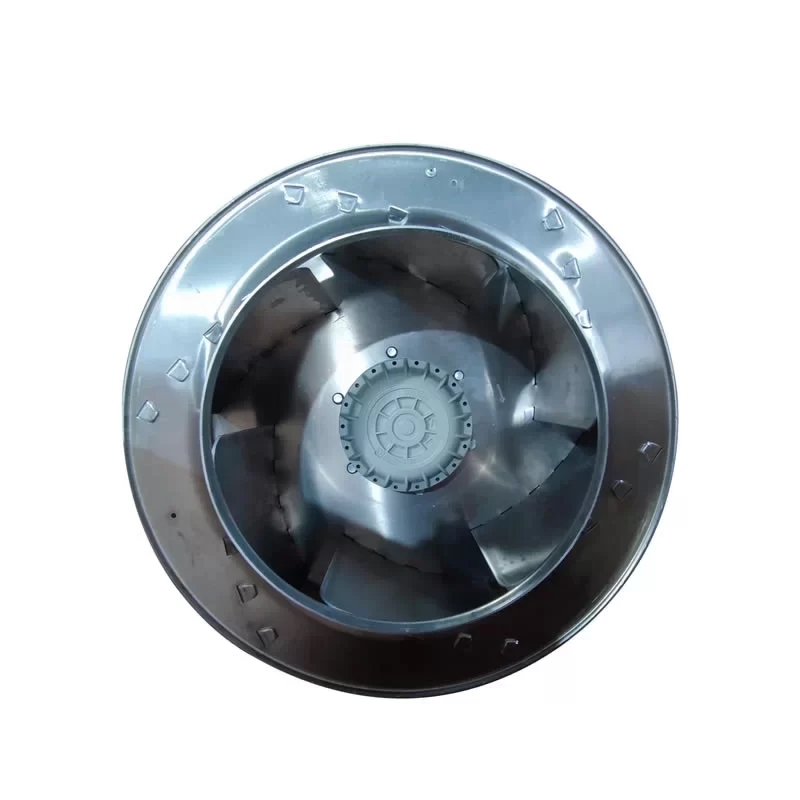

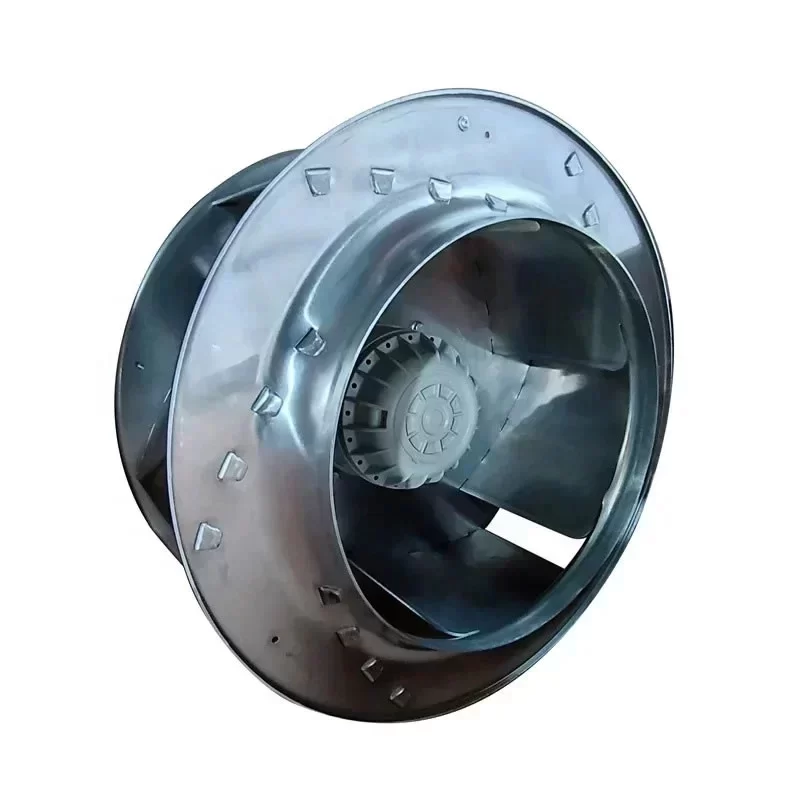

RH56M-6DK.6K.1R Ziehl-Abegg 230/400V AC Centrifugal Fan

Description

The Ziehl-Abegg RH56M-6DK.6K.1R is a professional-grade AC backward-curved centrifugal fan featuring the bionic Cpro composite impeller for optimized aerodynamic efficiency and silent operation. This 560 mm unit is equipped with a versatile three-phase external rotor motor that supports dual-voltage configurations (230V/400V) and dual-frequency operation (50/60 Hz). Delivering a nominal 0.63 kW at 900 RPM (50 Hz), it is specifically engineered for high-temperature environments, maintaining operational stability up to 70 °C. Its IP54-rated construction and high-performance blue composite blades ensure long-term durability and energy-efficient performance in specialized air handling units and industrial heat exhaustion systems.

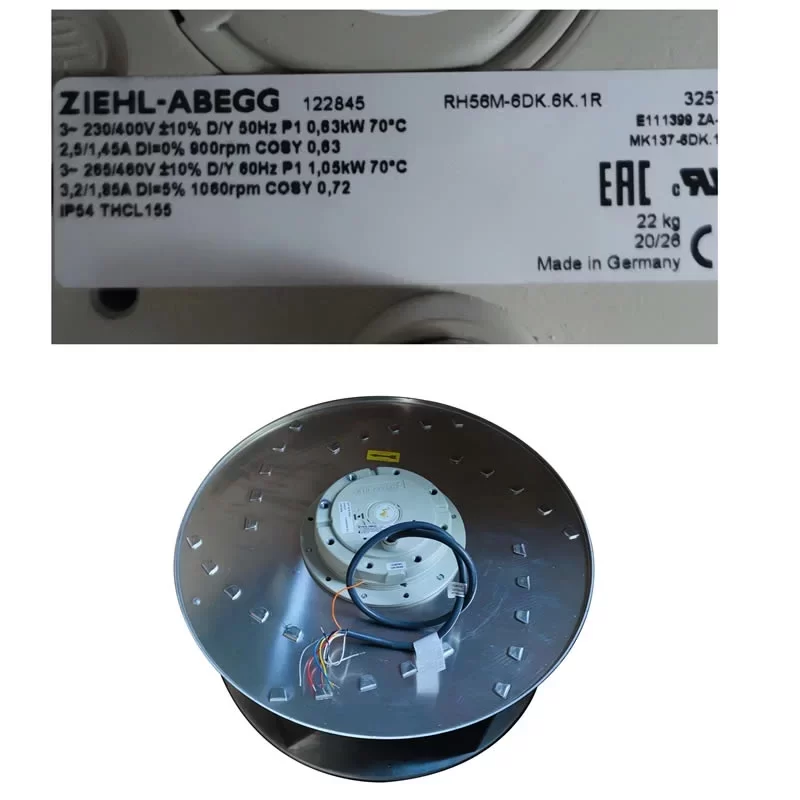

RH56M-6DK.6K.1R Fan Parameters
Manufacturer: Ziehl-Abegg
Model Number: RH56M-6DK.6K.1R
Type: AC backward-curved centrifugal fan
Phase: 3~
Nominal Voltage (50 Hz): 230/400 V (Delta/Star)
Nominal Voltage (60 Hz): 265/460 V (Delta/Star)
Frequency: 50/60 Hz
Impeller Size: 560 mm
Weight: 26.5 kg

[Electrical Data]
Input Power (50 Hz): 0.63 kW
Input Power (60 Hz): 1.05 kW
Nominal Speed (50 Hz): 900 RPM
Nominal Speed (60 Hz): 1060 RPM
Current Draw (50 Hz): 2.5/1.45 A
Current Draw (60 Hz): 3.2/1.85 A
Motor Protection: Thermal contact (TB)
Insulation Class: F
Termination: Terminal box

[Performance & Acoustics]
Max. Air Flow (50 Hz): 5,297.2 CFM (9,000.0 m³/h / 150.0 m³/min)
Max. Static Pressure (50 Hz): 35.69 mmH₂O (350.0 Pa / 1.41 inH₂O)
Sound Power Level: 71 dB(A)
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Radial

[Materials & Construction]
Housing Material: None (Motorized impeller)
Impeller Material: High-performance composite material (Cpro Blue)
Motor Bearing: High-temperature ball bearings
Installation Position: Any
Degree of Protection: IP54

[Reliability & Safety Standards]
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Standard Compliance: EN 60034-1, CE
Approval Agency: UL, VDE, EAC, RoHS

Application
The Ziehl-Abegg RH56M-6DK.6K.1R centrifugal fan is used in large-scale HVAC air handling units, data center precision cooling systems, cleanroom ventilation, industrial drying equipment, and modular rooftop cooling units.
