RH56V-ZIK.GL.VR Ziehl-Abegg 380-480V EC Centrifugal Fan

Description

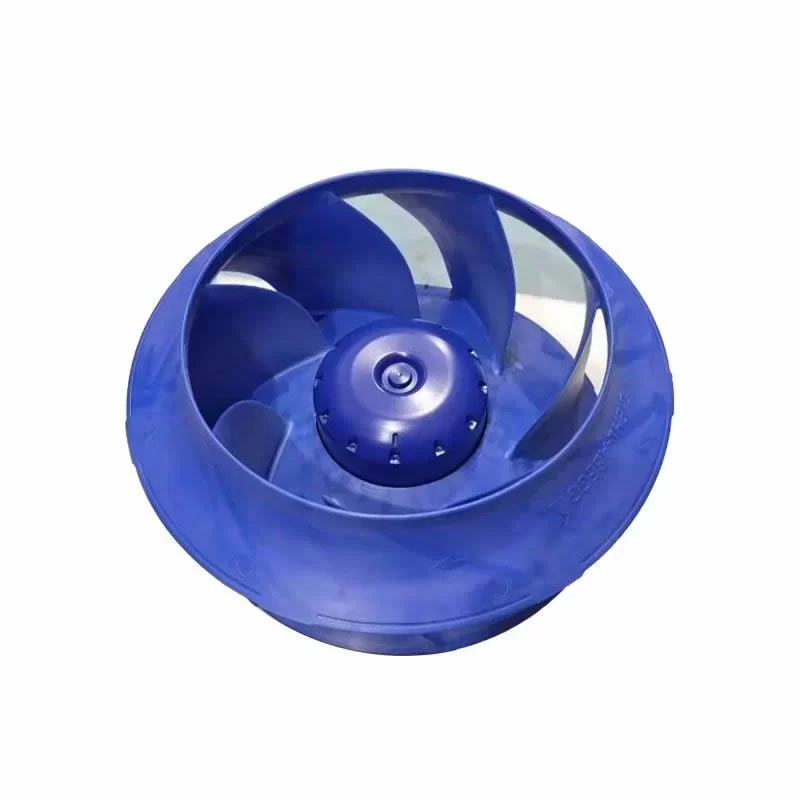

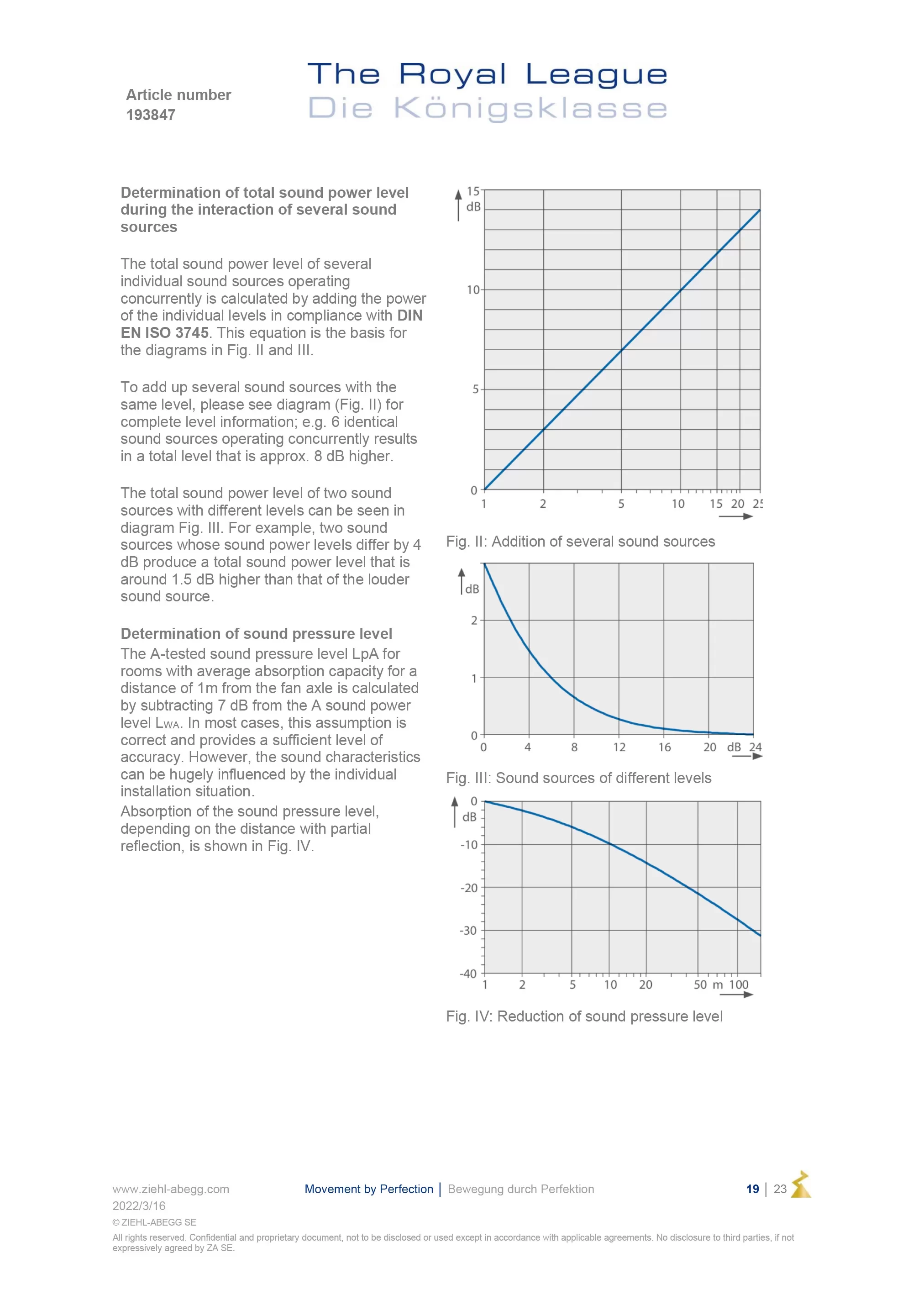

The Ziehl-Abegg RH56V-ZIK.GL.VR (Article No. 193847) is an ultra-high-efficiency 3-phase EC Centrifugal Fan module featuring a 560 mm ZAbluefin backward-curved impeller. Built with High Performance Composite Material, the impeller and rotor are finished in striking RAL 5002 ultramarine blue. Driven by the MK152-0008 motor with an integrated BASIC-MODBUS controller, this 26.00 kg unit operates on a wide 380-480 VAC supply, delivering 3.50 kW of power and a maximum airflow of 10501 m³/h at its optimum efficiency point. It meets IE5 efficiency standards with an efficiency grade of Nactual 68.1 and features integrated active temperature management for mission-critical reliability. Optimized for premium AHUs and FanGrid systems, the RH56V-ZIK.GL.VR offers IP55 protection and superior acoustic performance in temperatures as low as -15 °C.

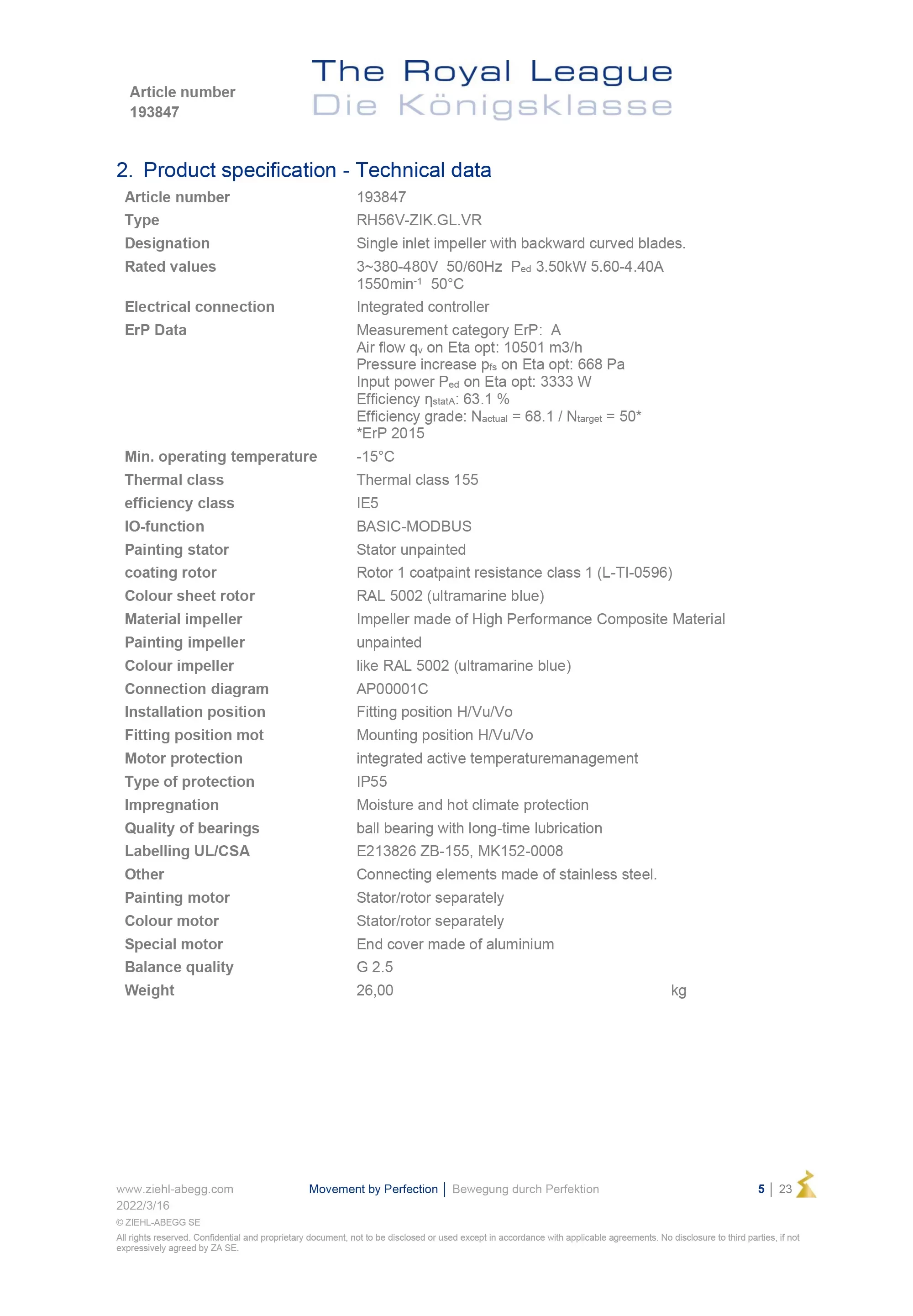

RH56V-ZIK.GL.VR Fan Parameters
Manufacturer: Ziehl-Abegg (Germany)
Motor Model: MK152-0008
Phase: 3~
Type: EC Centrifugal Fan with ZAbluefin Impeller
Impeller Size: 560 mm

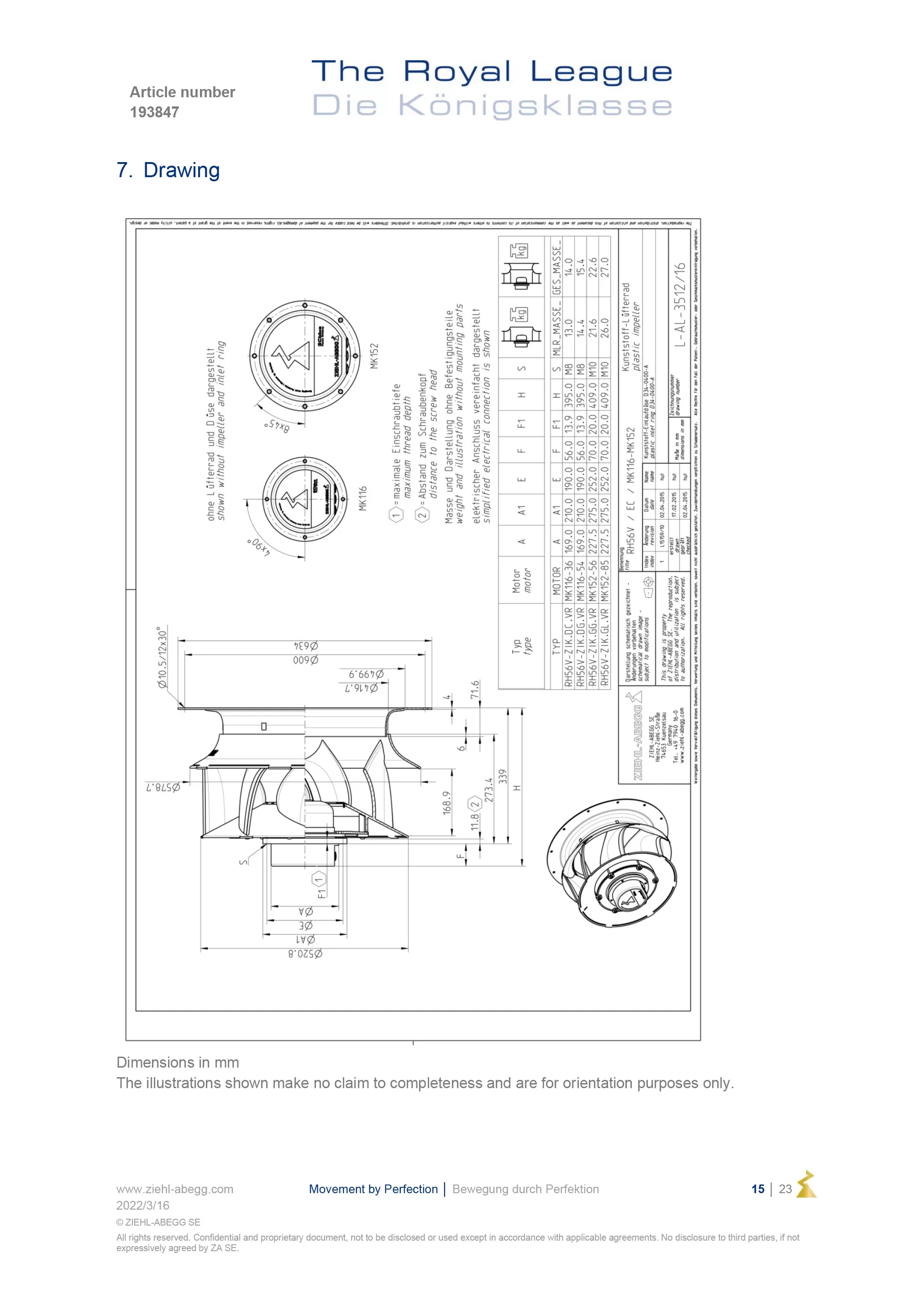

Dimensions: 560 mm (Impeller Diameter)
Weight: 26.00 kg

[Electrical Data – 50/60 Hz]
Nominal Voltage: 380 – 480 VAC
Power Input (Ped): 3.50 kW
Current Draw: 5.60 – 4.40 A
Speed: 1550 RPM
Max. Ambient Temp: 50 °C

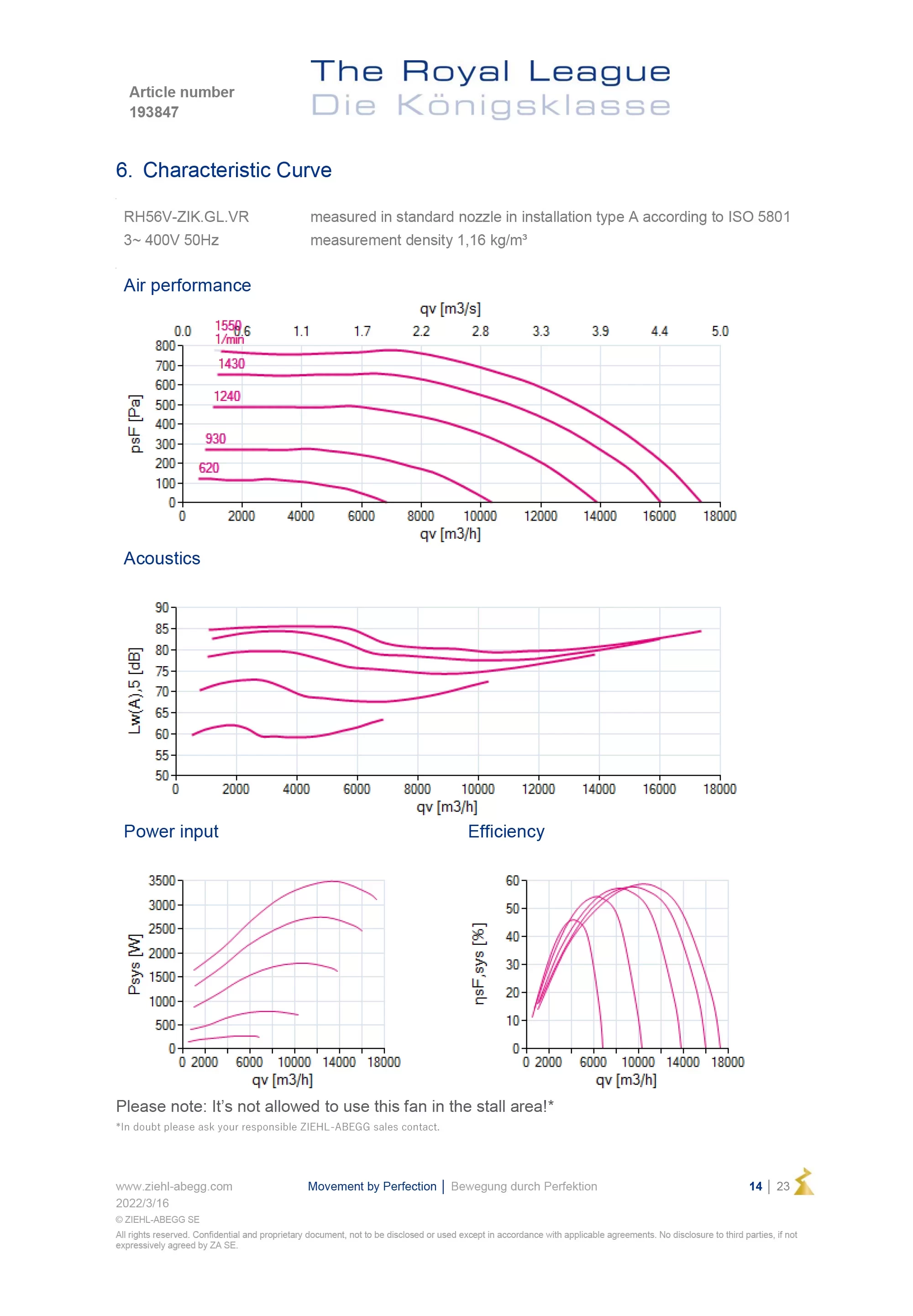

[ErP 2015 Data]
Air Flow (qv) at Eta opt: 10501 m³/h
Pressure Increase (pfs) at Eta opt: 668 Pa
Input Power (Ped) at Eta opt: 3333 W
Static Efficiency (ηstatA): 63.1 %
Efficiency Grade: Nactual = 68.1 / Ntarget = 50
Efficiency Class: IE5

[Materials & Construction]
Impeller Material: High Performance Composite Material
Colour (Rotor/Impeller): RAL 5002 (Ultramarine blue)
Stator Painting: Unpainted
Rotor Coating: 1 coat paint resistance class 1 (L-TI-0596)
Control Interface: BASIC-MODBUS
Degree of Protection: IP55
Thermal Class: 155 (Class F)
Motor Protection: Integrated active temperature management
Min. Operating Temp: -15 °C
Balance Quality: G 2.5
Installation Position: Fitting position H/Vu/Vo
Connection Diagram: AP00001C
