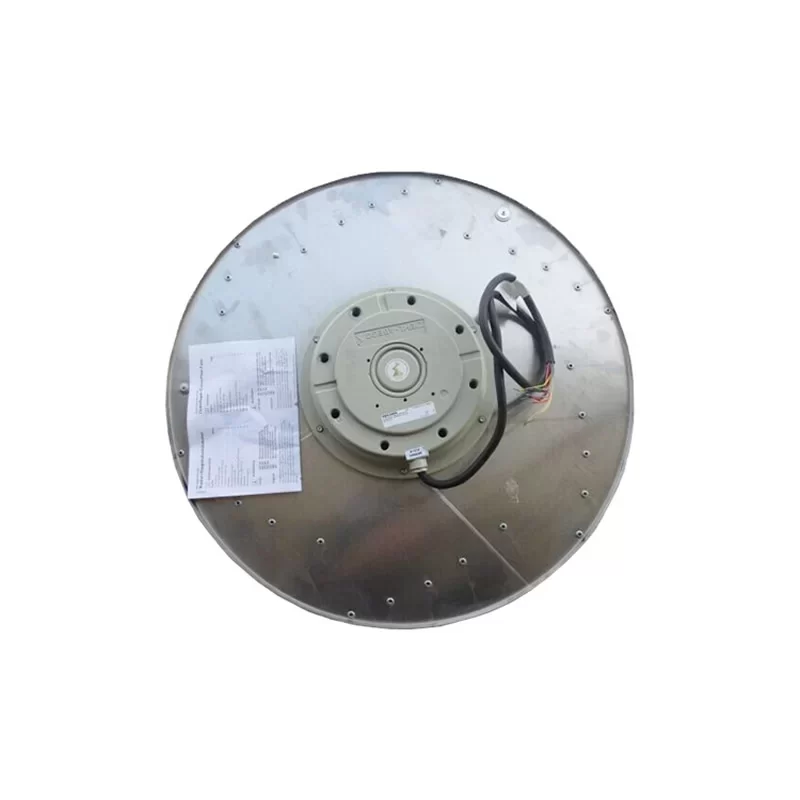

RH63M-VDK.7Q.1R Ziehl-Abegg 400V 630mm AC Centrifugal Fan

Description

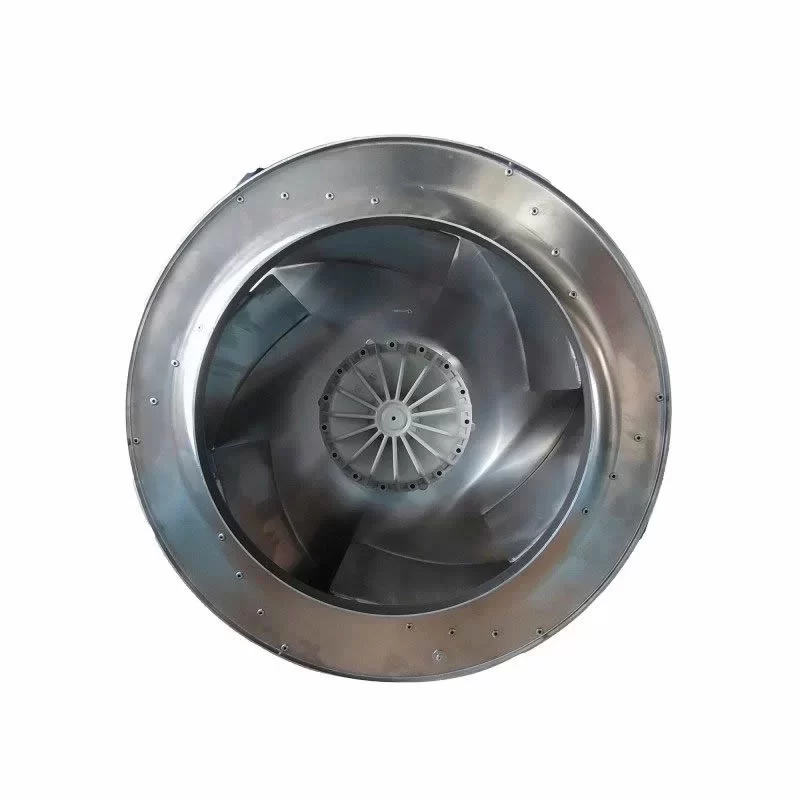

The Ziehl-Abegg RH63M-VDK.7Q.1R is a high-performance 3-phase AC Centrifugal Fan featuring a 630 mm backward-curved Cpro impeller, precision-engineered from fiberglass-reinforced composite material. Powered by the high-torque MK165-VDK.14.U external rotor motor, this unit operates on a 400 VAC supply (Delta/Star) and is optimized for the most demanding AHU (Air Handling Unit) and FanGrid applications. It delivers a maximum airflow of 14,350 m³/h at a rated speed of 1230 RPM (50Hz, Δ-connection). The Cpro series is renowned for its bionic blade geometry, which minimizes acoustic turbulence and maximizes static pressure efficiency (up to 750 Pa). With a maximum power input of 2.6 kW and IP54 protection, this 31.5 kg module provides 24/7 mission-critical reliability for 400V global industrial infrastructures, offering superior chemical resistance and reduced rotational inertia compared to traditional steel impellers.

RH63M-VDK.7Q.1R Fan Parameters
Manufacturer: Ziehl-Abegg
Model Number: RH63M-VDK.7Q.1R
Motor Model: MK165-VDK.14.U
Phase: 3~
Type: Centrifugal Fan with Cpro Impeller (Backward-curved)
Impeller Size: 630 mm
Dimensions: 630 mm (Diameter) x 394 mm (Total Axial Depth)
Nominal Voltage: 400 VAC (Δ/Y)
Frequency: 50 / 60 Hz

[50 Hz Operation Data]
– Wiring: Δ (Delta) / Y (Star)
– Speed: 1230 / 890 RPM
– Power Input (P1): 2.60 / 1.45 kW
– Current Draw: 4.80 / 2.70 A
– Max. Ambient Temp: +45 °C

[60 Hz Operation Data]
– Speed: 1250 / 820 RPM
– Power Input (P1): 3.20 / 1.65 kW
– Current Draw: 5.40 / 3.00 A
– Max. Ambient Temp: +40 °C

Efficiency Data (ErP 2015):
– Static Efficiency (ηes): 61.2 %
– Efficiency Grade: N 65.4
– Specific Ratio: 1.00
Max. Airflow: 14,350 m³/h (50 Hz) / 15,100 m³/h (60 Hz)
Max. Static Pressure: 750 Pa (3.01 inAq)
Noise Level (Inlet side): 76 dB(A)
Weight: 31.5 kg
Impeller Material: Cpro composite (Fiberglass-reinforced PP)
Number of Blades: 7
Direction of Rotation: Clockwise (viewed from suction side)
Degree of Protection: IP54
Insulation Class: F (155 °C)
Environmental Protection Class: H1 (Humidity resistant)
Motor Protection: Thermal contact (TB) wired to terminals (must be connected)
Condensation Drainage: Drainage holes on motor side (openable)
Motor Surface: Unpainted die-cast aluminum
Mode of Operation: S1 (Continuous duty)
Bearing Type: Sealed Ball Bearing (Maintenance-free)
Conformity & Approvals: CE, ErP 2015/2021, EAC, UKCA

Application
The Ziehl-Abegg RH63M-VDK.7Q.1R is the definitive air-moving solution for medium-to-large scale Air Handling Units (AHU), industrial data center cooling, and clean-room recirculation systems. Its 630 mm Cpro composite impeller is specifically engineered for low-noise operation and high resistance to aggressive environments, making it ideal for hospital ventilation and pharmaceutical production areas. The 400V 3-phase dual-speed (Δ/Y) capability allows for flexible integration into building management systems (BMS), enabling high-performance airflow at 1230 RPM or high-efficiency, reduced-noise operation at 890 RPM. With its 31.5 kg robust construction and H1 moisture protection, the RH63M provides high-velocity, reliable heat rejection and climate control for global 50/60 Hz industrial power grids.
