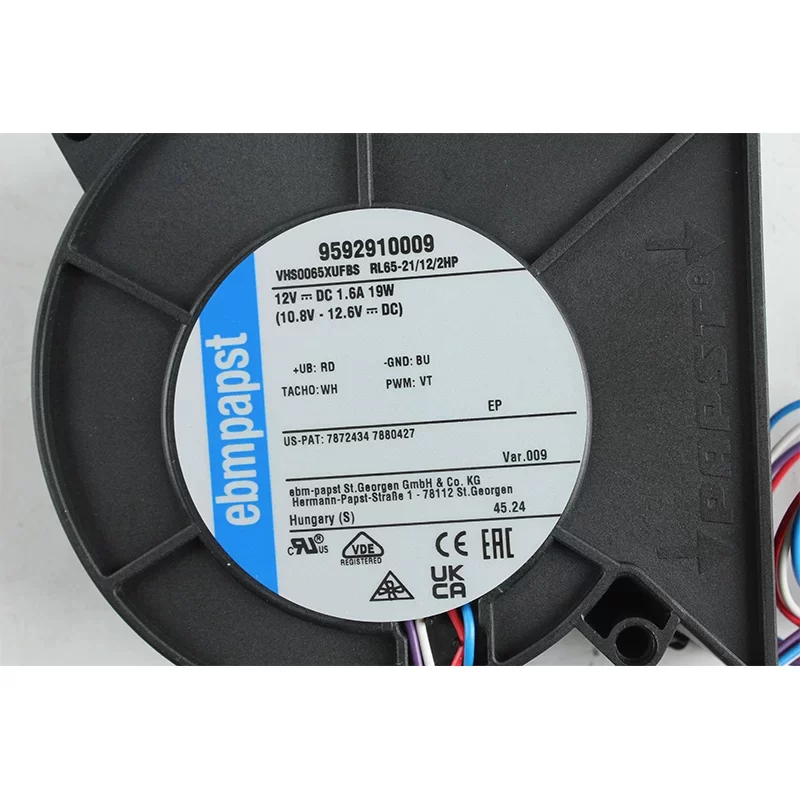

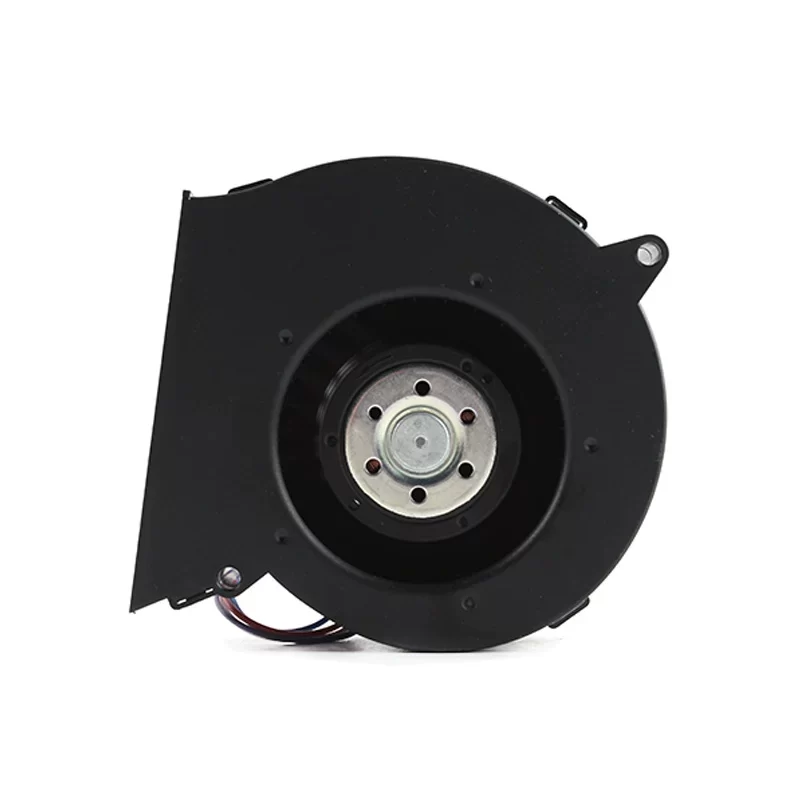

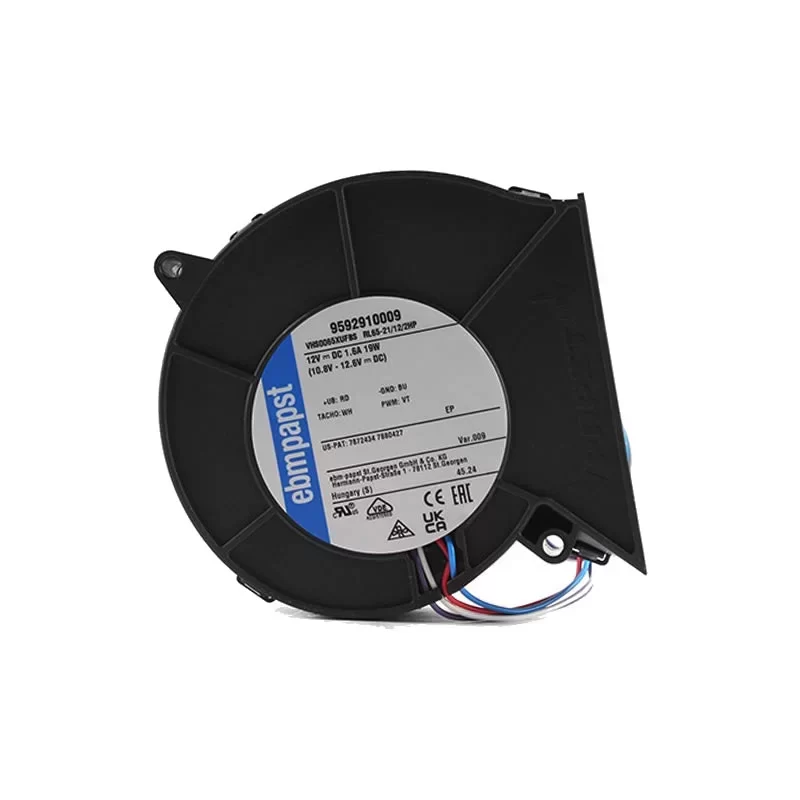

RL65-21/12/2HP ebmpapst 12V 19W 97mm DC Centrifugal Fan

Description

The ebmpapst RL65-21/12/2HP is a high-performance DC centrifugal blower engineered for precision cooling in compact, high-impedance environments. Operating on a nominal 12 VDC supply (10.8 – 12.6 VDC range), this unit features a 4-wire interface with a PWM control input for intelligent speed modulation, reaching a nominal speed of 4900 RPM at 19 W. Within its 97.0 x 94.0 x 33.0 mm plastic housing, the blower utilizes a ball bearing system to deliver an airflow of 61 m³/h (35.9 CFM) and a static pressure of 390 Pa. Designed for versatile installation, it supports any shaft mounting position and maintains a service life of up to 92500 h (IPC 9591), ensuring reliable operation in mission-critical hardware from -20 °C to 55 °C.

RL65-21/12/2HP Fan Parameters
Manufacturer: ebmpapst
Model Number: RL65-21/12/2HP
Part Number: 9592910009
Identification: VHS0065XUFBS
Type: DC Centrifugal Blower
Nominal Voltage: 12 VDC
Nominal Voltage Range: 10.8 – 12.6 VDC
Dimensions: 97.0 x 94.0 x 33.0 mm
Weight: 0.160 kg

[Electrical Data]
Nominal Speed: 4900 RPM
Power Consumption: 19 W
Current Draw: 1.6 A
Control Input: PWM (Pulse Width Modulation)
Termination: 4 leads (L = 310 mm)
Motor Protection: Electronic protection against reverse polarity and blocked rotor
Insulation Class: B

[Performance & Acoustics]
Max. Air Flow: 61 m³/h (35.9 CFM)
Max. Static Pressure: 390 Pa (1.57 inAq)
Direction of Rotation: Counterclockwise (viewed toward rotor)
Airflow Direction: Axial intake, radial discharge
Mounting Torque: Wire outlet corner: 60 Ncm; Remaining corners: 100 Ncm
Screw Size: ISO 4762 – M4 (degreased)

[Materials & Construction]
Housing Material: Plastic
Impeller Material: Plastic
Motor Bearing: Ball Bearing
Mounting Position: Any (Shaft horizontal or vertical)

[Reliability & Protection]
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 55 °C
Min. Storage Temperature: -40 °C
Max. Storage Temperature: 80 °C
Life Expectancy (L10): 55000 h at 40 °C (37500 h at 55 °C)
Life Expectancy (IPC 9591): 92500 h at 40 °C
Standard Compliance: CE, EAC, UL, VDE, CSA

Application
The ebmpapst RL65-21/12/2HP centrifugal blower is specifically engineered for precision thermal management in high-density electronics where its compact 97.0 x 94.0 x 33.0 mm plastic housing and PWM-controlled 4900 RPM motor are required to deliver a critical 61 m³/h airflow, while its ball bearing system and 19 W power consumption ensure reliable 12 VDC operation and heat dissipation in mission-critical hardware environments from -20 °C to 55 °C.
