Description

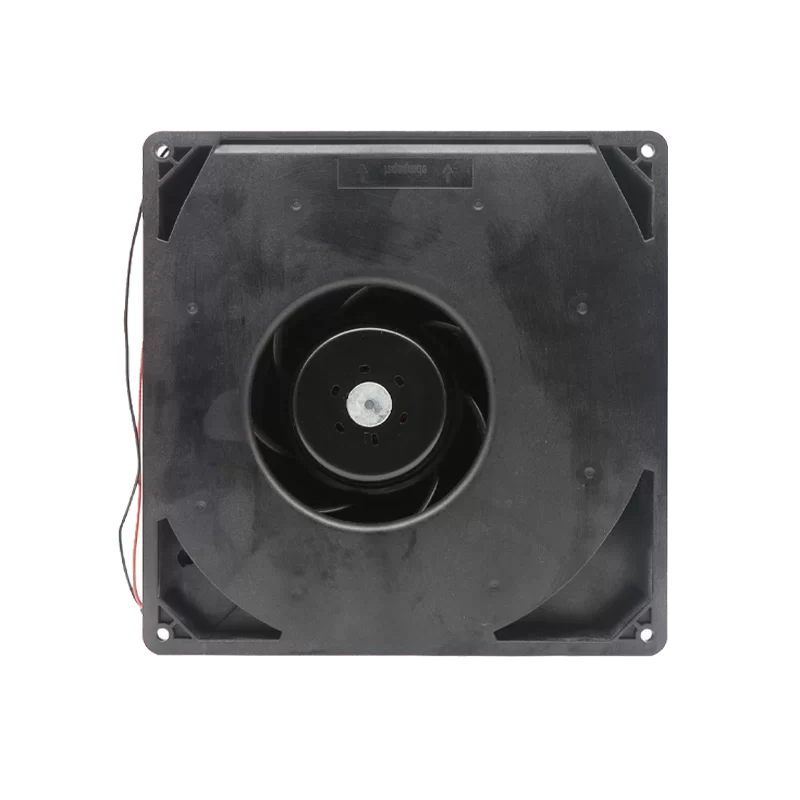

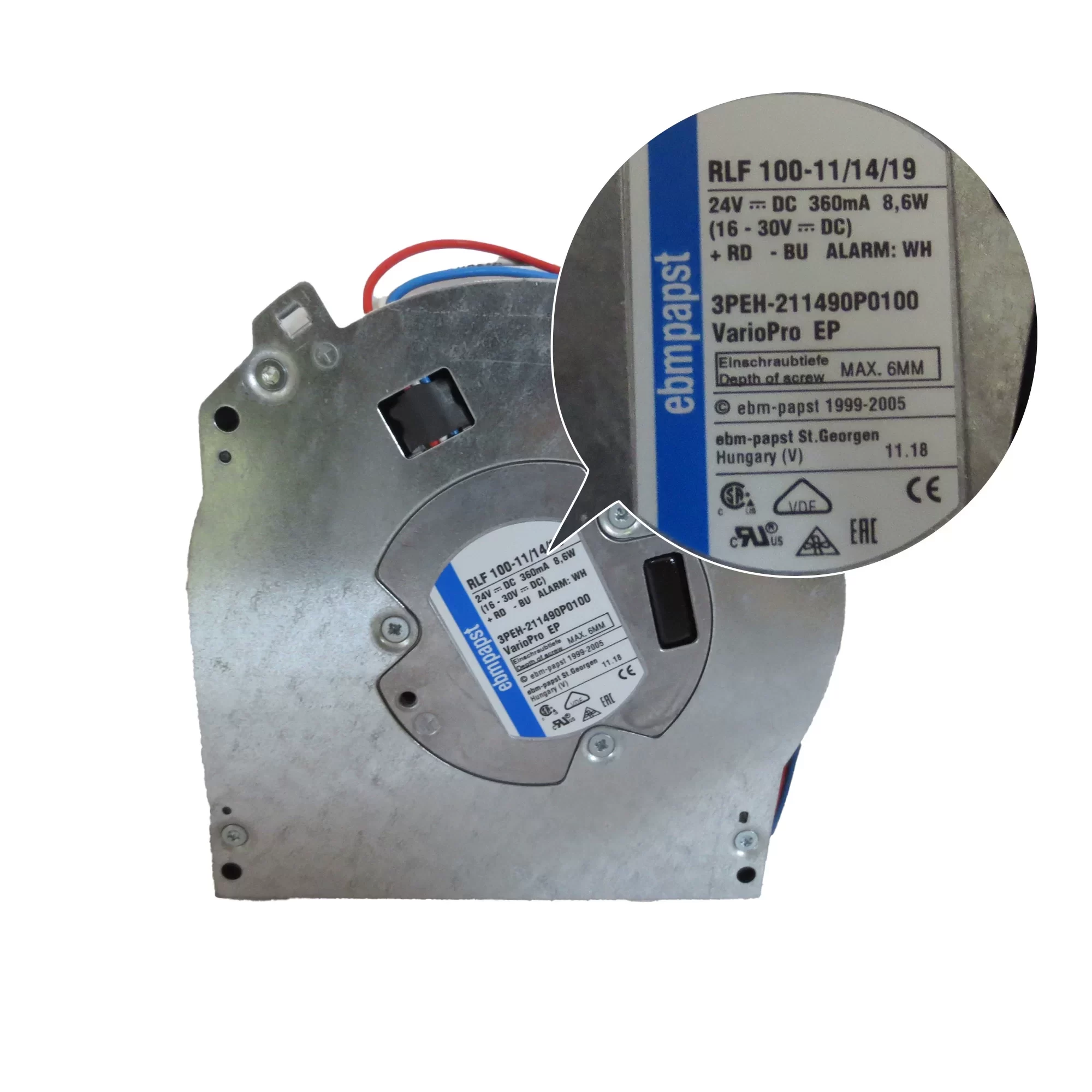

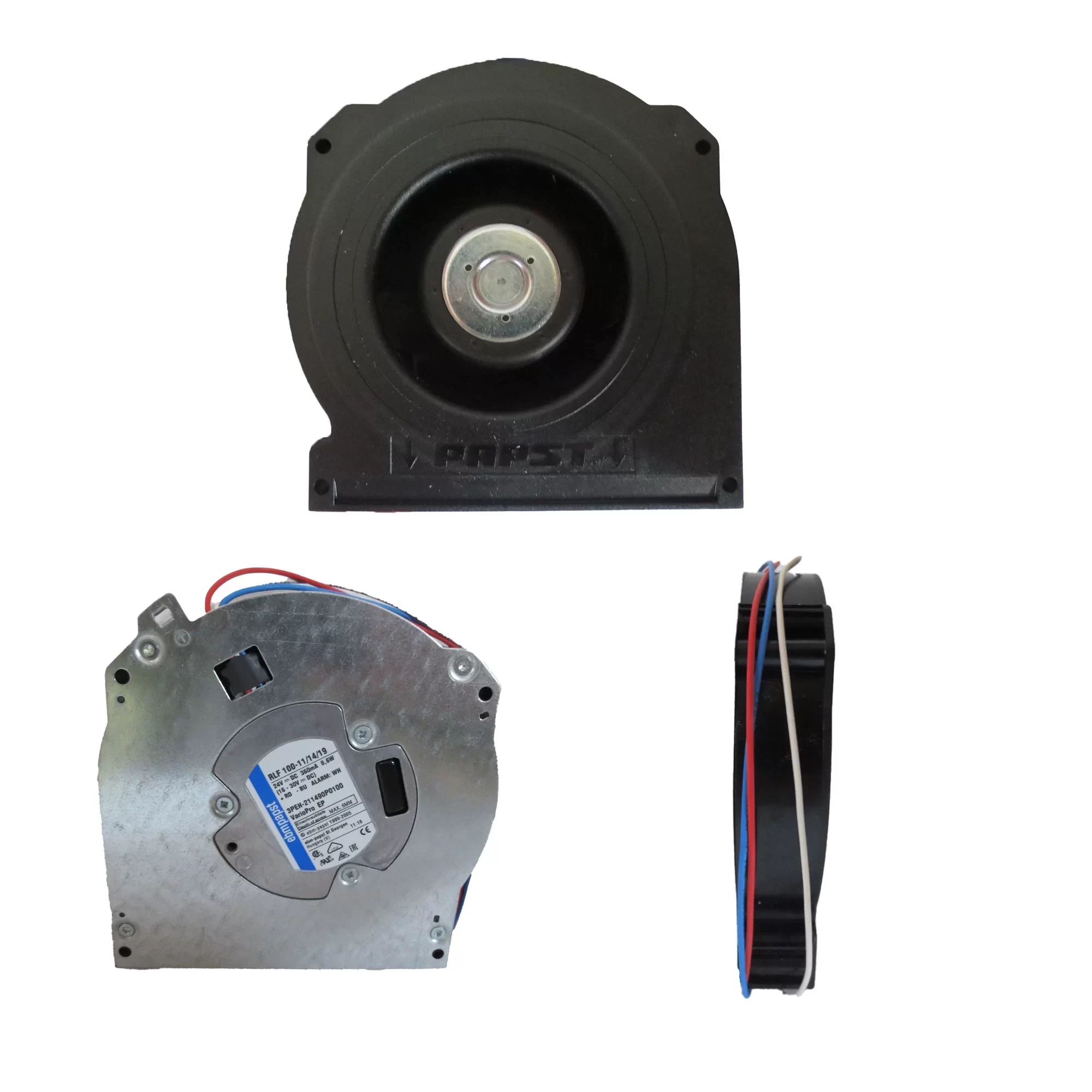

The ebmpapst RLF100-11/14/19 is a DC Centrifugal Blower measuring 127x127x25.4mm. It operates on 24VDC with a wide operating voltage range of 16 to 30VDC. This fan draws 0.36A of current, consumes 8.6W of power, and achieves a speed of 5100 RPM. It provides an airflow of 64 m³/h (37.7 CFM) with a high static pressure of 430 Pa at a noise level of 64 dB(A). It is built with a fiberglass-reinforced plastic for both the housing and the impeller. The fan features a durable ball bearing system and has a lifespan of 80000 hours at 40°C. It includes locked rotor, reverse polarity, and overload protection, along with a tachometer output, making it a reliable solution for various industrial and electronic applications requiring high-pressure airflow.
RLF100-11/14/19 Fan Parameters
Model: RLF100-11/14/19
Manufacturer: ebmpapst
Type: DC Centrifugal Blower
Dimensions: 127 x 127 x 25.4 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16 to 30 VDC
Current Draw: 0.36 A
Power Input: 8.6 W
Fan Speed: 5100 RPM
Airflow: 64 m³/h (37.7 CFM)
Static Pressure: 430 Pa
Noise Level: 64 dB(A)
Bearing Type: Ball Bearing
Protection Level: IP20
Weight: 0.32 kg
Lifespan: 80000 h at 40°C
Termination: 3 Wire Leads with tachometer output
Housing Material: Fiberglass-reinforced plastic
Impeller Material: Fiberglass-reinforced plastic
Operating Temperature: -20 to 75 °C
Motor Protection: Locked rotor protection, reverse polarity protection, overload protection
Application: Industrial and electronic applications requiring high-pressure airflow.
