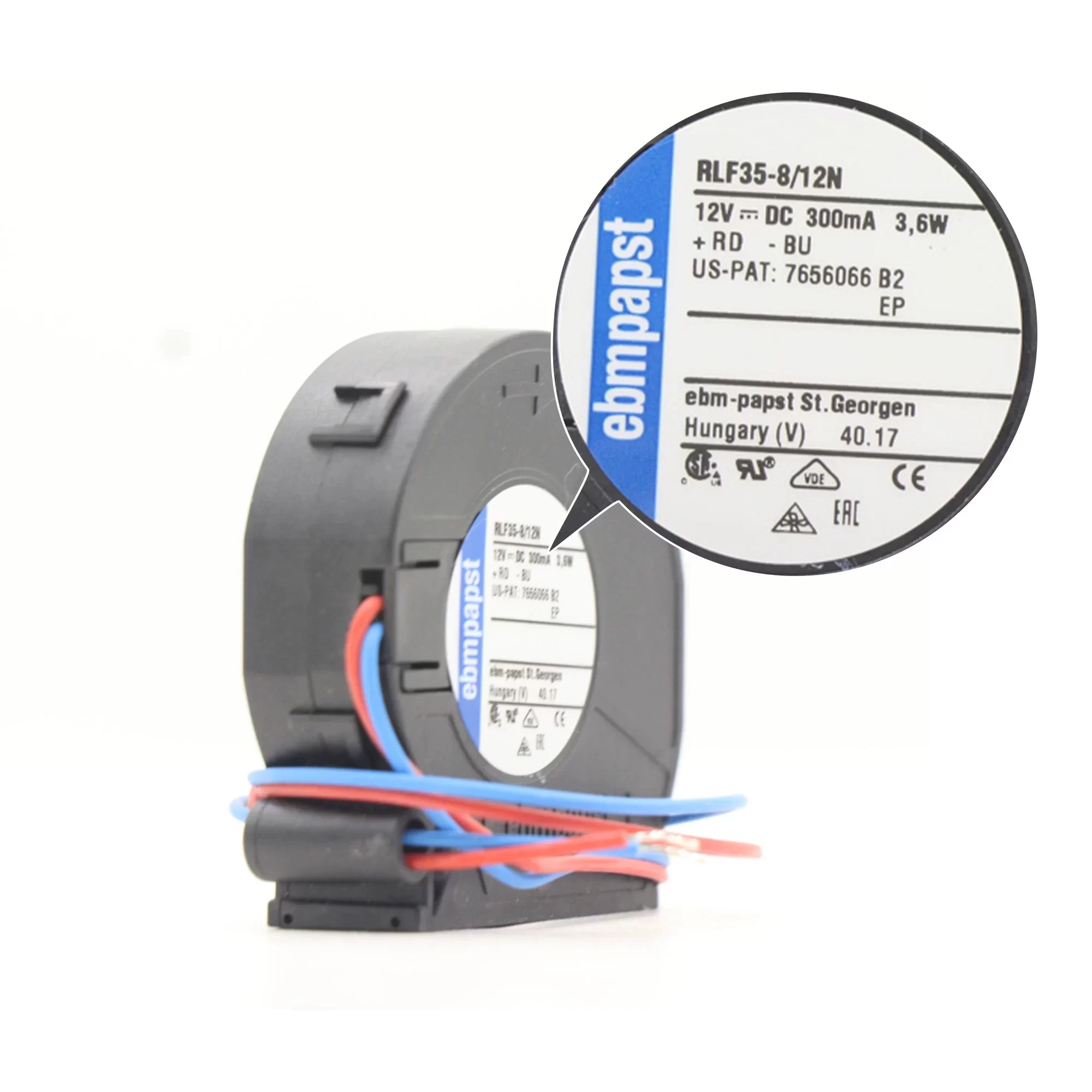

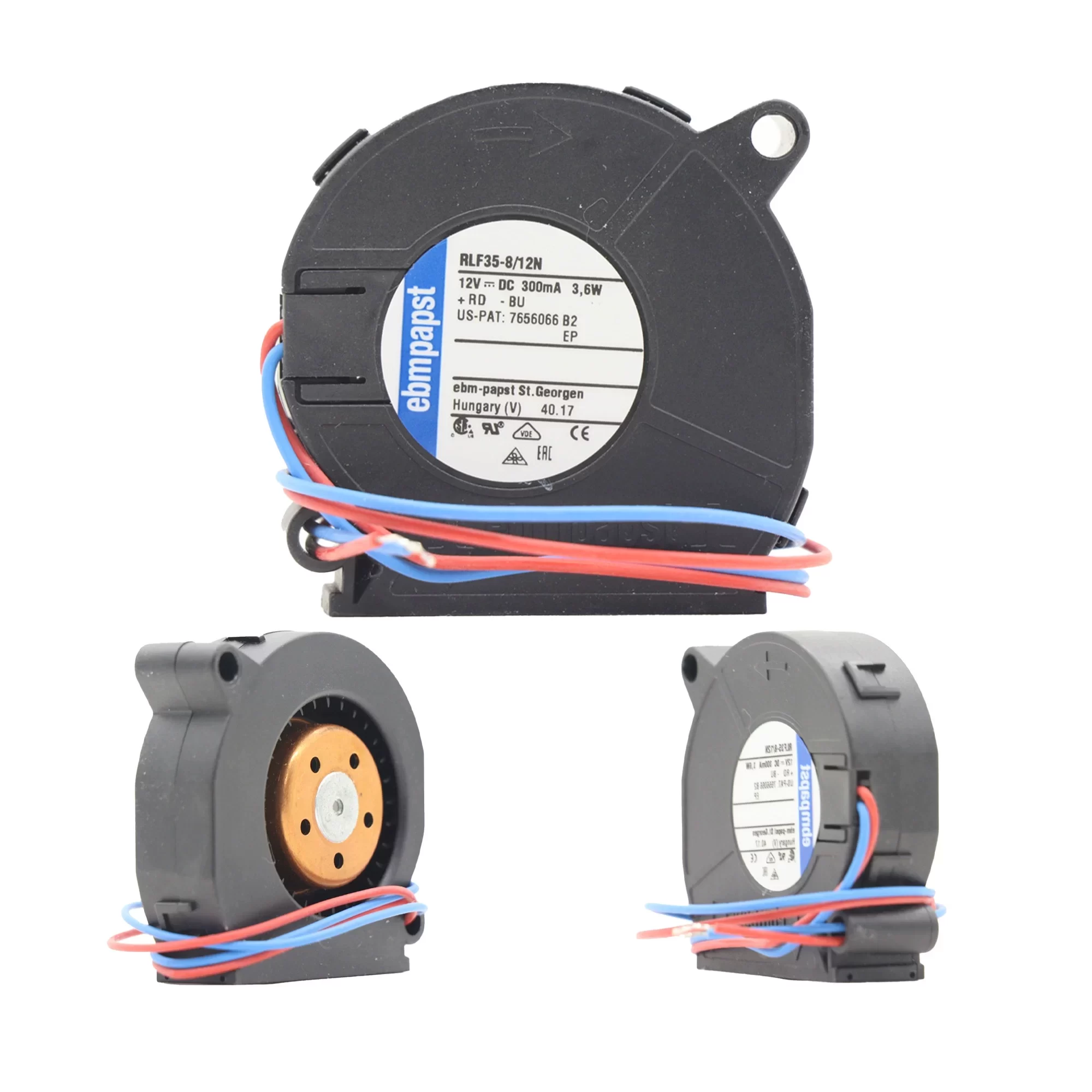

RLF35-8/12N ebmpapst 12V DC Centrifugal Blower

Description

The ebmpapst RLF35-8/12N is a DC Centrifugal Blower measuring 51x51x15mm. It operates on 12VDC with a wide operating voltage range of 8 to 13.2VDC. This fan draws 0.3A of current, consumes 3.6W of power, and achieves a speed of 6700 RPM, providing an airflow of 9.6 m³/h (5.65 CFM) at a noise level of 55 dBA. It is built with a fiberglass-reinforced plastic for both the housing and the impeller. The fan features a durable ball bearing system and has an IP20 ingress protection level. With a lifespan of 60000 hours at 40°C and protection against reverse polarity and blocked rotor, it is a reliable solution for various electronic and industrial applications requiring compact, high-pressure airflow.

RLF35-8/12N Fan Parameters
Model: RLF35-8/12N
Manufacturer: ebmpapst
Type: DC Centrifugal Blower
Dimensions: 51 x 51 x 15 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 8 to 13.2 VDC
Current Draw: 0.3 A
Power Input: 3.6 W
Fan Speed: 6700 RPM
Airflow: 9.6 m³/h (5.65 CFM)
Noise Level: 55 dBA
Bearing Type: Ball Bearing
Protection Level: IP20
Weight: 0.040 kg
Lifespan: 60000 h at 40°C
Termination: 2 Wire Leads
Housing Material: Fiberglass-reinforced plastic
Impeller Material: Fiberglass-reinforced plastic
Operating Temperature: -20 to 70 °C
Motor Protection: Protection against reverse polarity and blocked rotor
Application: Electronic and industrial applications requiring high-pressure airflow.
