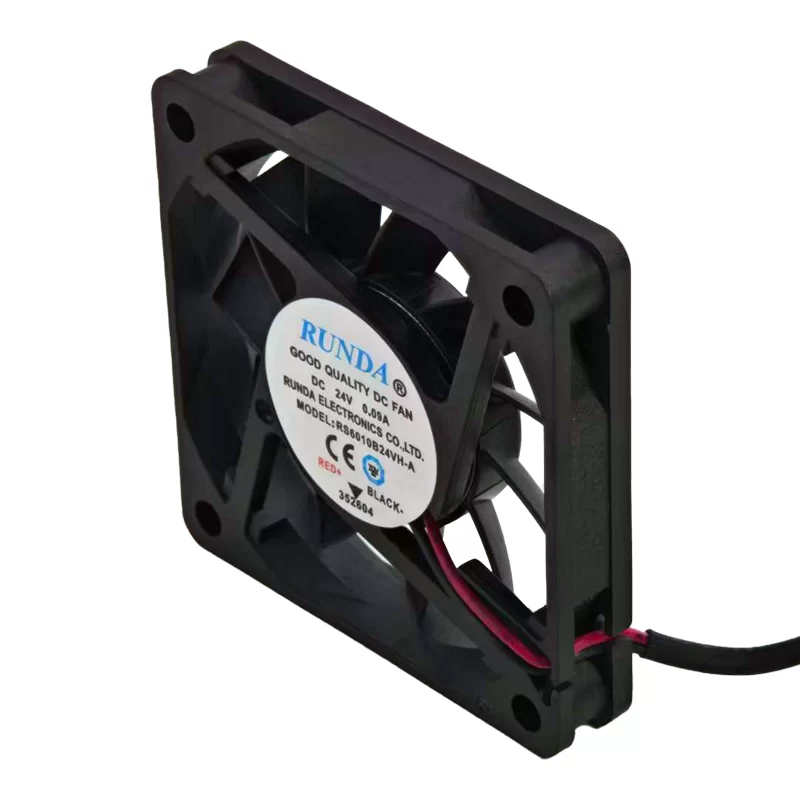

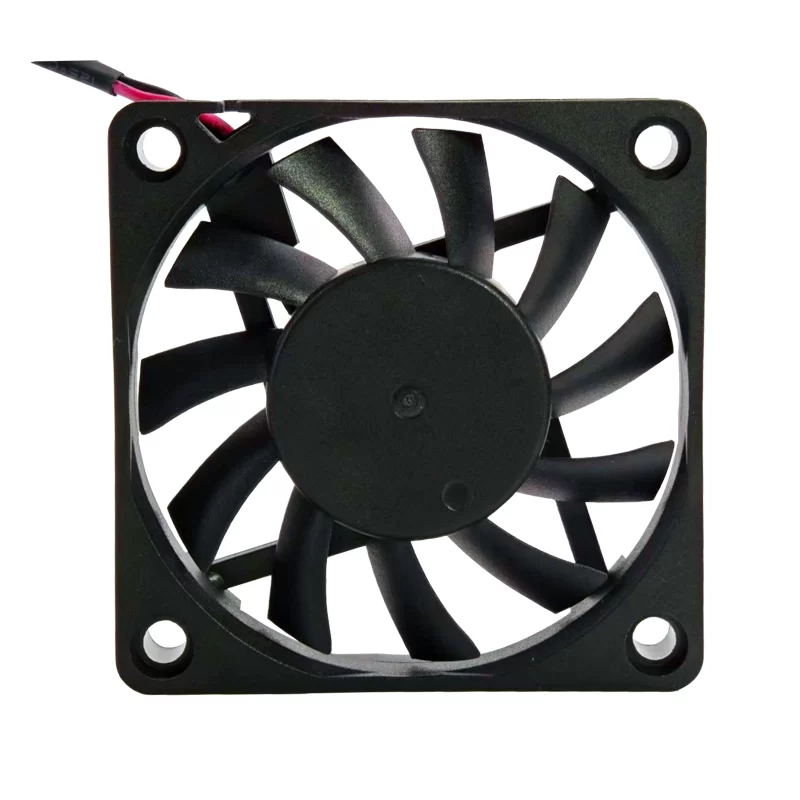

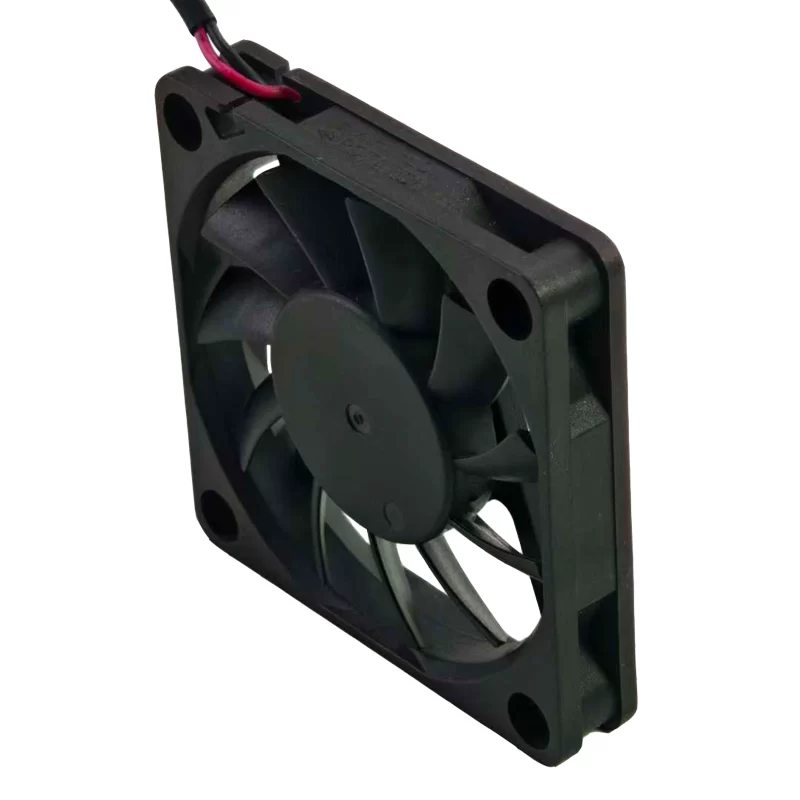

RS6010B24VH-A RUNDA 24V 0.09A 60mm 6010 DC Axial Fan

Description

The RUNDA RS6010B24VH-A is a high-performance 24V DC Axial Fan with a slim-profile dimension of 60 x 60 x 10 mm, engineered for precision cooling in space-constrained industrial and networking environments. Operating at a nominal 24 VDC, this specialized variant features a high-density 11-blade impeller and a brushless DC motor that draws 0.09 A, resulting in a power consumption of 2.16 W. The fan is equipped with a 2-wire interface for simplified power integration and utilizes a robust dual ball bearing system to ensure reliable 24/7 operation and a long service life. The RS6010B24VH-A is an ideal thermal management solution for 1U network switches, compact power supplies, and thin-client computing modules where its ultra-thin 10mm form factor and efficient 11-blade design are required for consistent heat extraction in tight spaces.

RS6010B24VH-A Fan Parameters
Manufacturer: RUNDA (Shenzhen Runda Electronics)
Model Number: RS6010B24VH-A
Motor Design: Brushless DC Motor
Type: DC Axial Fan
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Dimensions: 60 x 60 x 10 mm
Impeller Size: 60 mm
Number of Blades: 11
Weight: 35 g

[Electrical Data]
Nominal Speed: 4500 RPM (±10%)
Power Consumption: 2.16 W
Current Draw: 0.09 A
Starting Voltage: 14.0 VDC
Termination: 2 Lead wires
Lead Wire Length: 200 mm ± 10 mm
Motor Bearing: Dual Ball Bearing
Motor Protection: Polarity protection and locked rotor auto-restart

[Performance & Acoustics]
Max. Air Flow: 28.7 m³/h (16.9 CFM)
Max. Static Pressure: 31.2 Pa (0.12 inAq)
Sound Pressure Level: 32.5 dB(A)
Direction of Rotation: Counter-clockwise (looking at rotor)
Airflow Direction: Exhaust over struts

[Materials & Construction]
Housing Material: Glass-fiber reinforced plastic (PBT, UL 94V-0)
Impeller Material: Glass-fiber reinforced plastic (PBT, UL 94V-0)
Mounting Position: Any
Frame Type: Ribbed

[Reliability & Protection]
Service Life (L10 at 40 °C): 70000 h
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Insulation Resistance: 10M Ω min at 500 VDC
Dielectric Strength: 5 mA max at 500 VAC 50/60 Hz for 1 minute
Approval: UL, CE, RoHS

Application
The RUNDA RS6010B24VH-A is specifically engineered for high-density cooling in mission-critical 24V environments where vertical space is extremely limited but consistent airflow is required to maintain the stability of 1U rackmount networking hardware, high-efficiency power converters, and industrial control interfaces, utilizing its 10mm ultra-slim frame and 11-blade high-efficiency impeller to provide effective heat extraction from sensitive electronic components while the brushless motor design and 0.09 A low-power consumption ensure 24/7 structural durability and energy efficiency demanded by modern enterprise infrastructure.
