Description

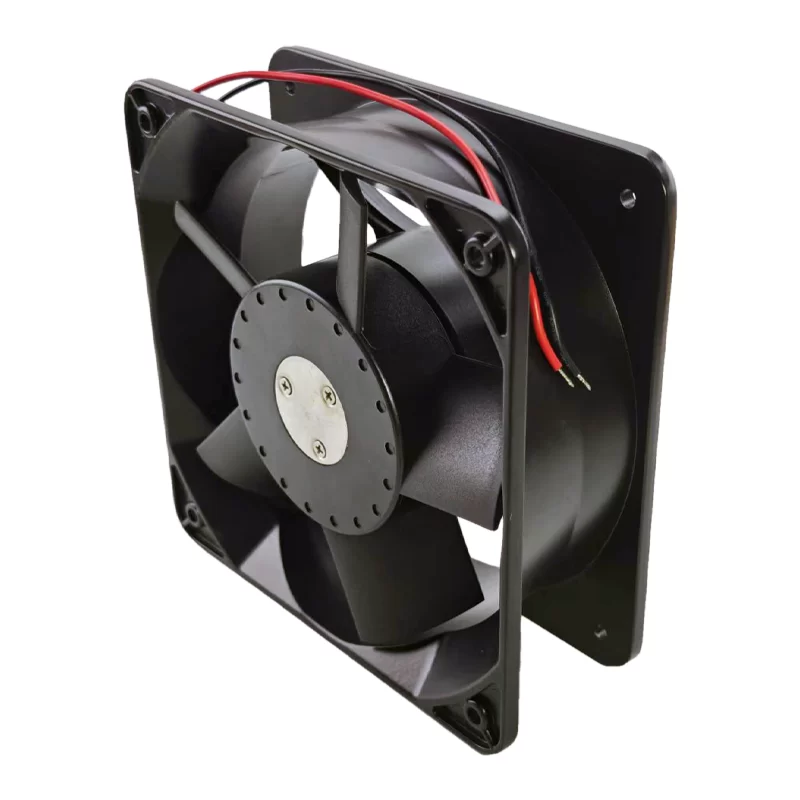

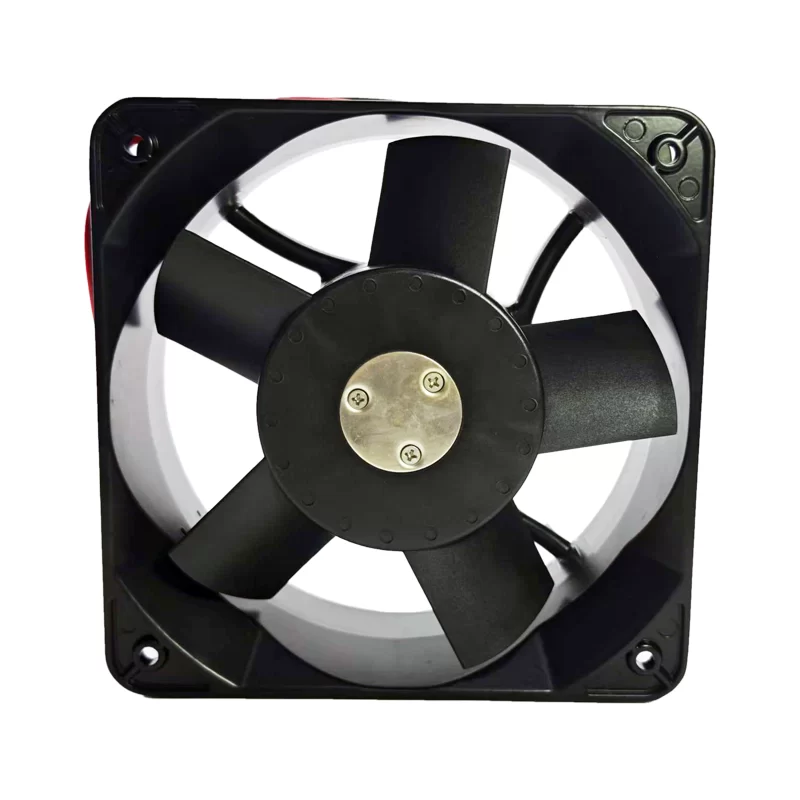

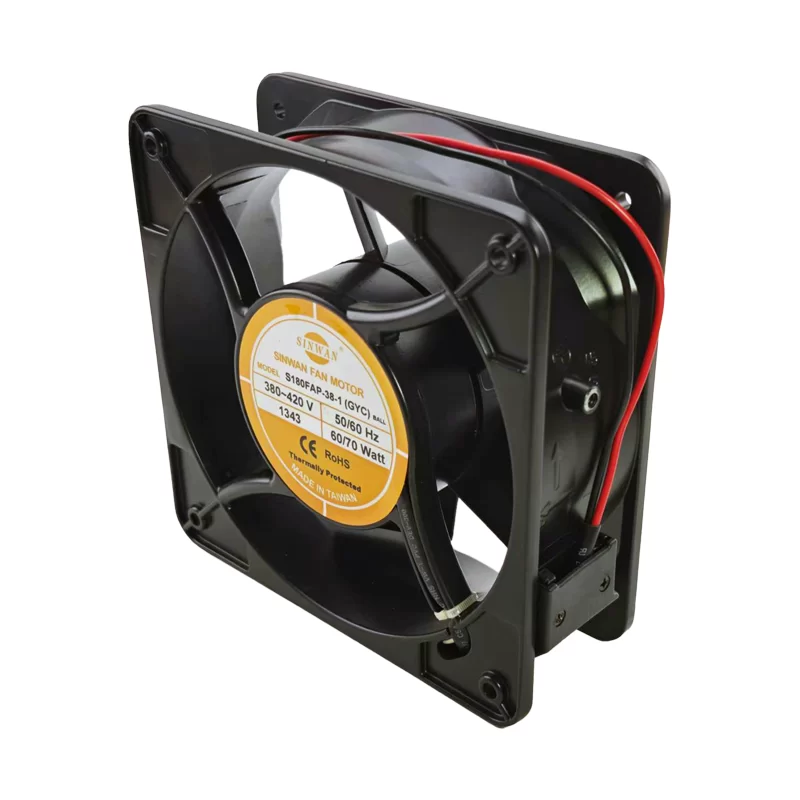

The SINWAN S180FAP-38-1 is an AC Axial Fan with dimensions of 180x180x65mm. It operates on a nominal voltage of 380V within an operating range of 380-420V at both 50Hz and 60Hz. At 50Hz, it consumes 60W of power, delivering 350 CFM (9.9 m³/min) of airflow at 2750 RPM with a static pressure of 0.64 Inch-H2O. At 60Hz, it consumes 70W, providing 400 CFM (11.3 m³/min) of airflow at 3150 RPM with a static pressure of 0.82 Inch-H2O. This fan is suitable for various industrial ventilation and cooling applications requiring high air volume.
S180FAP-38-1 Fan Parameters
Model: S180FAP-38-1
Manufacturer: SINWAN
Type: AC Axial Fan
Dimensions: 180 x 180 x 65 mm
Rated Voltage: 380 V
Operating Voltage Range: 380 – 420 V
Frequency: 50/60 Hz
Power Input: 60 W (50Hz), 70 W (60Hz)
Fan Speed: 2750 RPM (50Hz), 3150 RPM (60Hz)
Airflow: 350 CFM (9.9 m³/min) (50Hz), 400 CFM (11.3 m³/min) (60Hz)
Static Pressure: 0.64 Inch-H2O (50Hz), 0.82 Inch-H2O (60Hz)
Application: Industrial ventilation, General cooling systems
