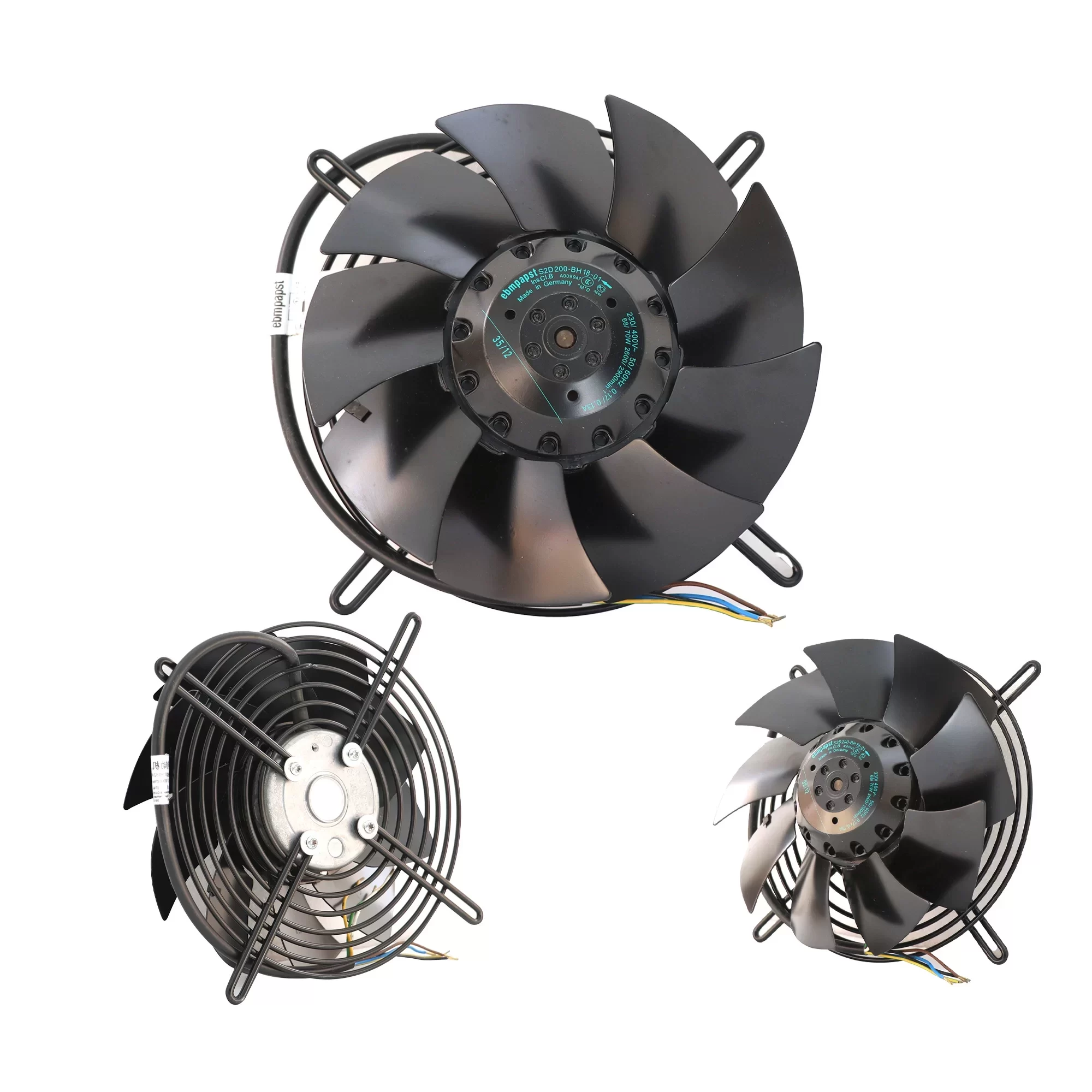

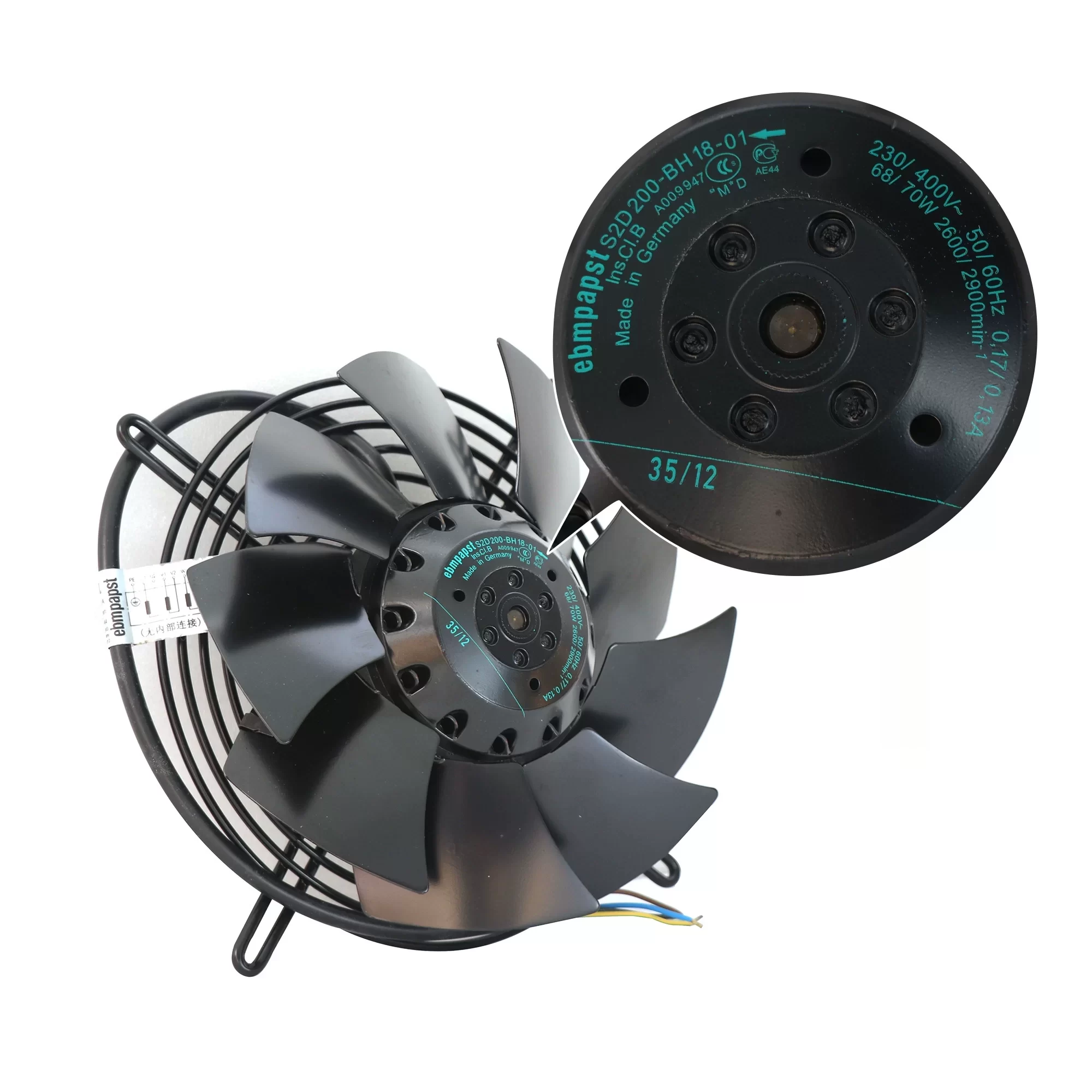

S2D200-BH18-01 ebmpapst 400V AC Axial Fan

Description

The ebmpapst S2D200-BH18-01 is an AC Axial Fan with a 200mm diameter. It operates on 400VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.17A of current, consumes 68W of power, and achieves a speed of 2600 RPM, providing an airflow of 940 m³/h at a noise level of 59 dBA. When running at 60Hz, the current is 0.13A, power is 70W, and the speed reaches 2900 RPM, with an airflow of 1020 m³/h at a noise level of 61 dBA. This fan features a durable ball bearing system and has an IP44 ingress protection level. With a die-cast aluminum housing and a sheet steel impeller, it is a reliable solution for various industrial cooling applications.

S2D200-BH18-01 Fan Parameters
Model: S2D200-BH18-01
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 200 mm diameter
Rated Voltage: 400 VAC
Frequency: 50/60 Hz
Weight: 1.83 kg
Bearing Type: Ball Bearing
Protection Level: IP44
Termination: 2 Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Sheet steel, coated in black
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature: -45 to 70 °C
Motor Protection: Thermal overload protector wired internally

At 400V/50Hz:
Current Draw: 0.17 A
Power Input: 68 W
Fan Speed: 2600 RPM
Airflow: 940 m³/h
Noise Level: 59 dBA

At 400V/60Hz:
Current Draw: 0.13 A
Power Input: 70 W
Fan Speed: 2900 RPM
Airflow: 1020 m³/h
Noise Level: 61 dBA

Application: Industrial cooling applications.
