Description

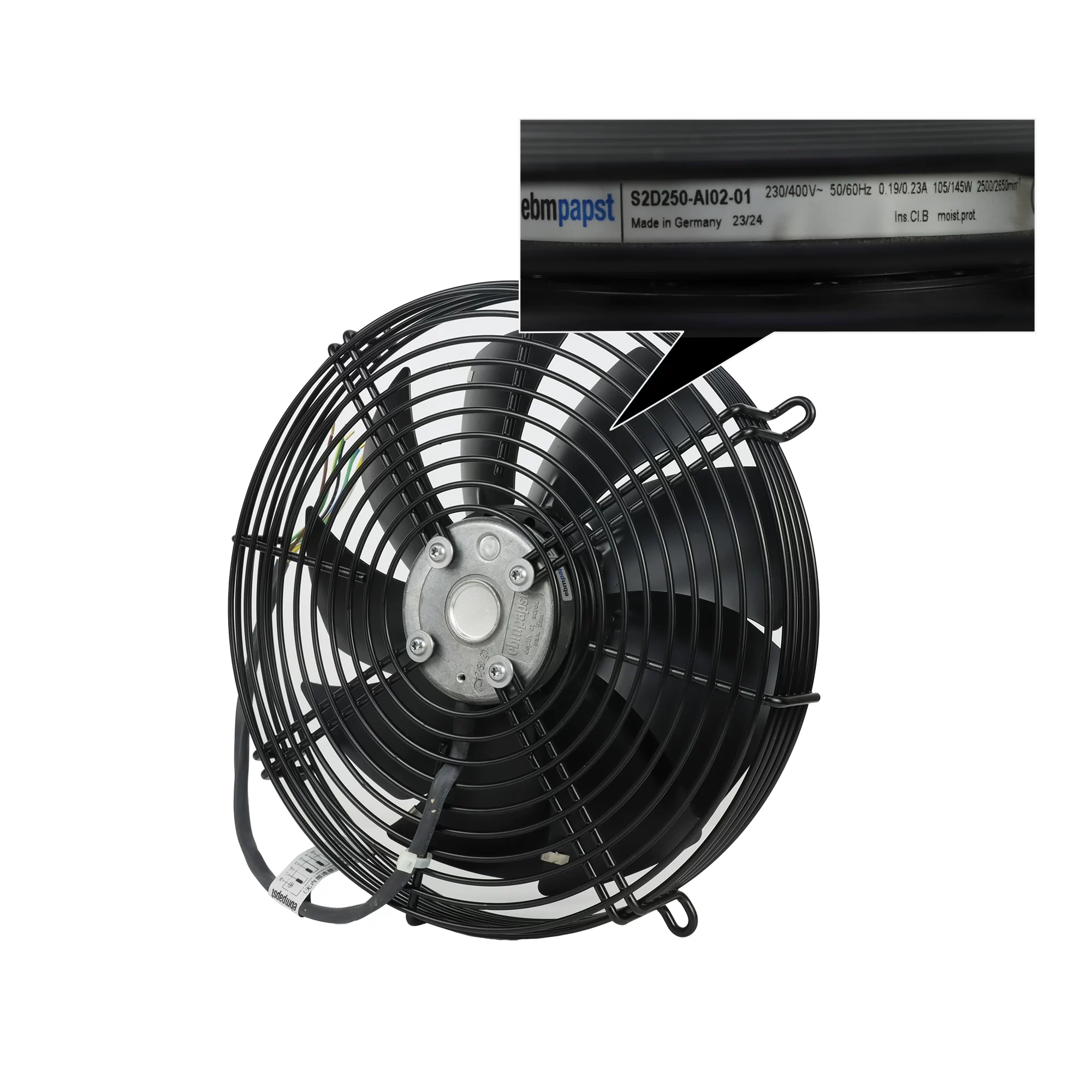

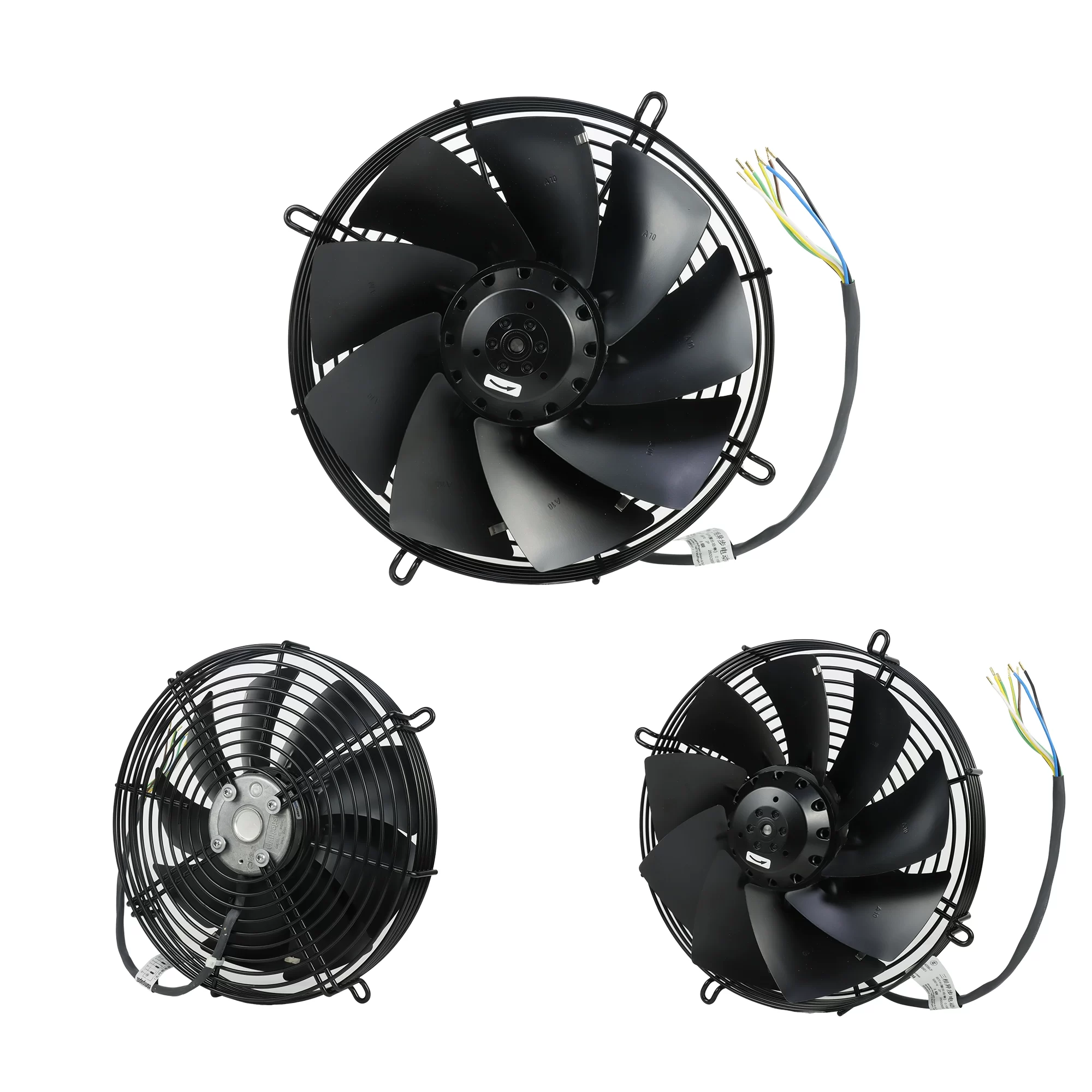

he ebmpapst S2D250-AI02-01 is an AC axial fan measuring 250x250x72mm. It operates on 3-phase 230/400 VAC at 50/60 Hz. The current draw is 0.19 A at 50 Hz and 0.23 A at 60 Hz, with a power consumption of 105 W at 50 Hz and 145 W at 60 Hz. This fan achieves speeds of 2500 RPM at 50 Hz and 2650 RPM at 60 Hz, providing an airflow of 1929 m³/h. The noise level is 70 dB(A). It features ball bearings for reliable operation and connects via leads. It has an IP44 ingress protection rating and operates within an ambient temperature range of -40 to 80°C. The fan is built with a robust metal housing and is suitable for various cooling and ventilation applications in industrial settings.
S2D250-AI02-01 Fan Parameters
Model: S2D250-AI02-01
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 250x250x72 mm
Rated Voltage: 3~ 230/400 VAC
Frequency: 50/60 Hz
Rated Current: 0.19 A (at 50 Hz) / 0.23 A (at 60 Hz)
Power Consumption: 105 W (at 50 Hz) / 145 W (at 60 Hz)
Speed: 2500 RPM (at 50 Hz) / 2650 RPM (at 60 Hz)
Airflow: 1929 m³/h
Static Pressure: 150 Pa
Noise Level: 70 dB(A)
Bearing Type: Ball Bearing
Termination: Leads
Housing Material: Metal
Ingress Protection: IP44
Operating Temperature: -40 to 80°C
Motor: M2D068-CF
Application: Industrial cooling and ventilation systems.
Weight: 3.5 kg
