S2D300-AP02-30 ebmpapst 230V/400V AC Axial Fan

Description

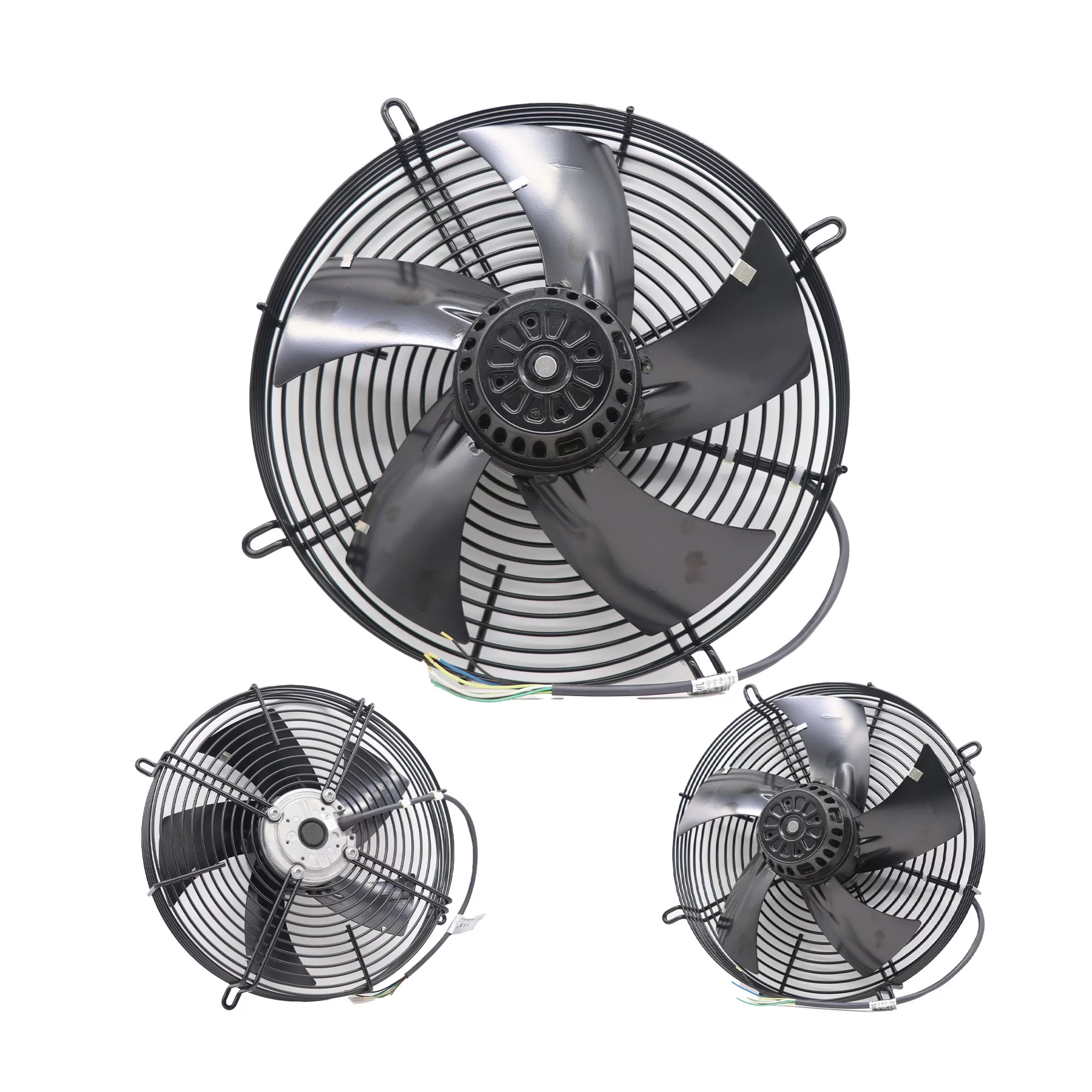

The ebmpapst S2D300-AP02-30 is an AC Axial Fan measuring Ø360x109mm. It is a multi-voltage and multi-frequency product, operating on 230V or 400V at both 50Hz and 60Hz. At 230V/50Hz, it draws 0.62A of current and consumes 210W of power, achieving a speed of 2580 RPM. When running on 230V/60Hz, the current is 0.84A, power is 300W, and speed is 2750 RPM. For 400V/50Hz operation, the current is 0.36A, power is 210W, and speed is 2580 RPM. Finally, at 400V/60Hz, the fan draws 0.48A of current, consumes 300W of power, and spins at 2750 RPM. This fan weighs 4.1 kg, has 5 sheet steel blades, and features a durable ball bearing system and an IP44 protection level, making it suitable for various industrial and cold storage applications.

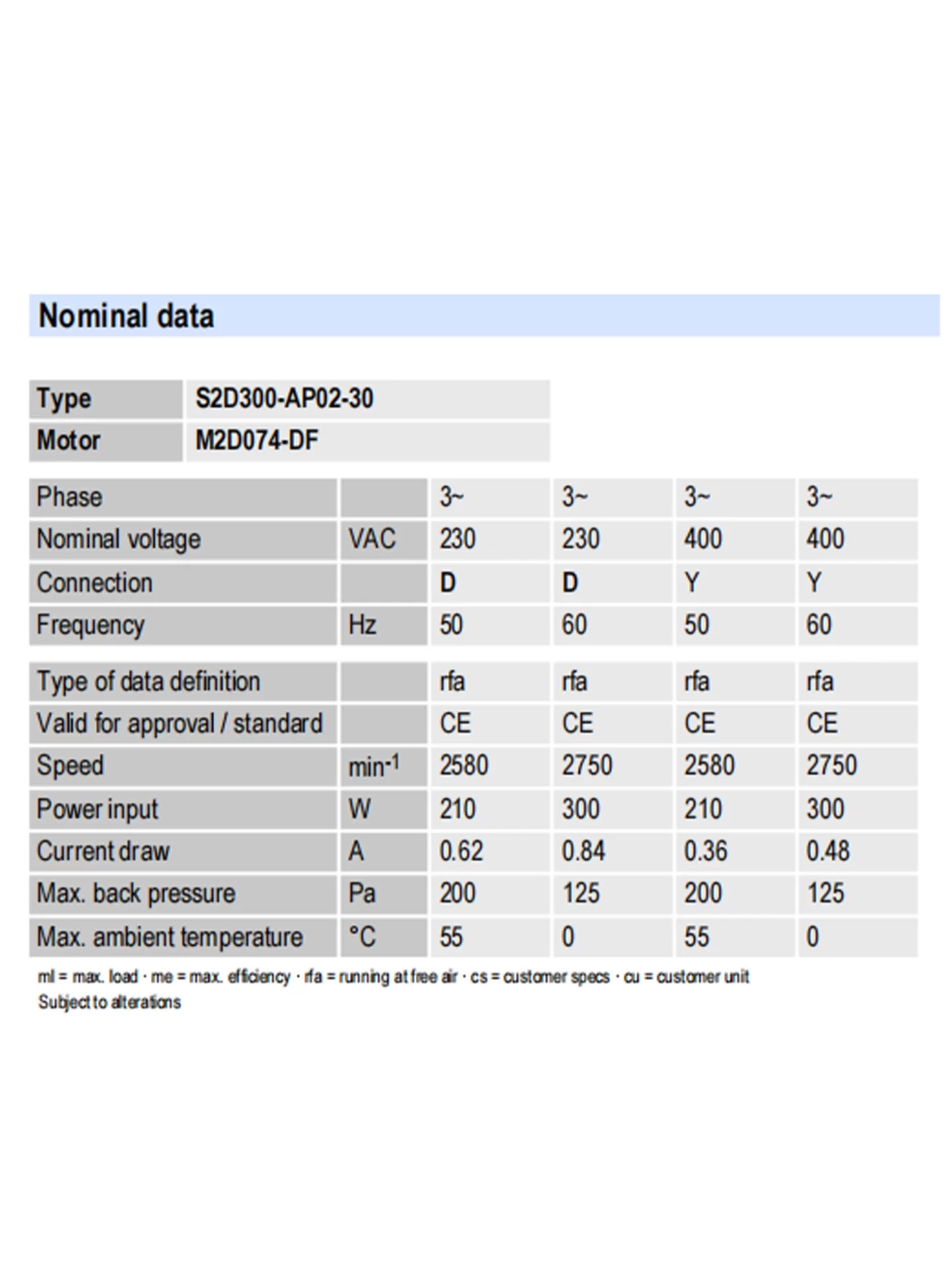

S2D300-AP02-30 Fan Parameters
Model: S2D300-AP02-30
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: Ø360 x 109 mm
Rated Voltage: 230/400 VAC
Frequency: 50/60 Hz
Weight: 4.1 kg
Blade Material: Sheet steel, painted black
Number of Blades: 5
Direction of Rotation: Counter-clockwise, seen on rotor
Bearing Type: Ball Bearing
Protection Level: IP44
Insulation Class: F
Operating Temperature: -40 to 80°C

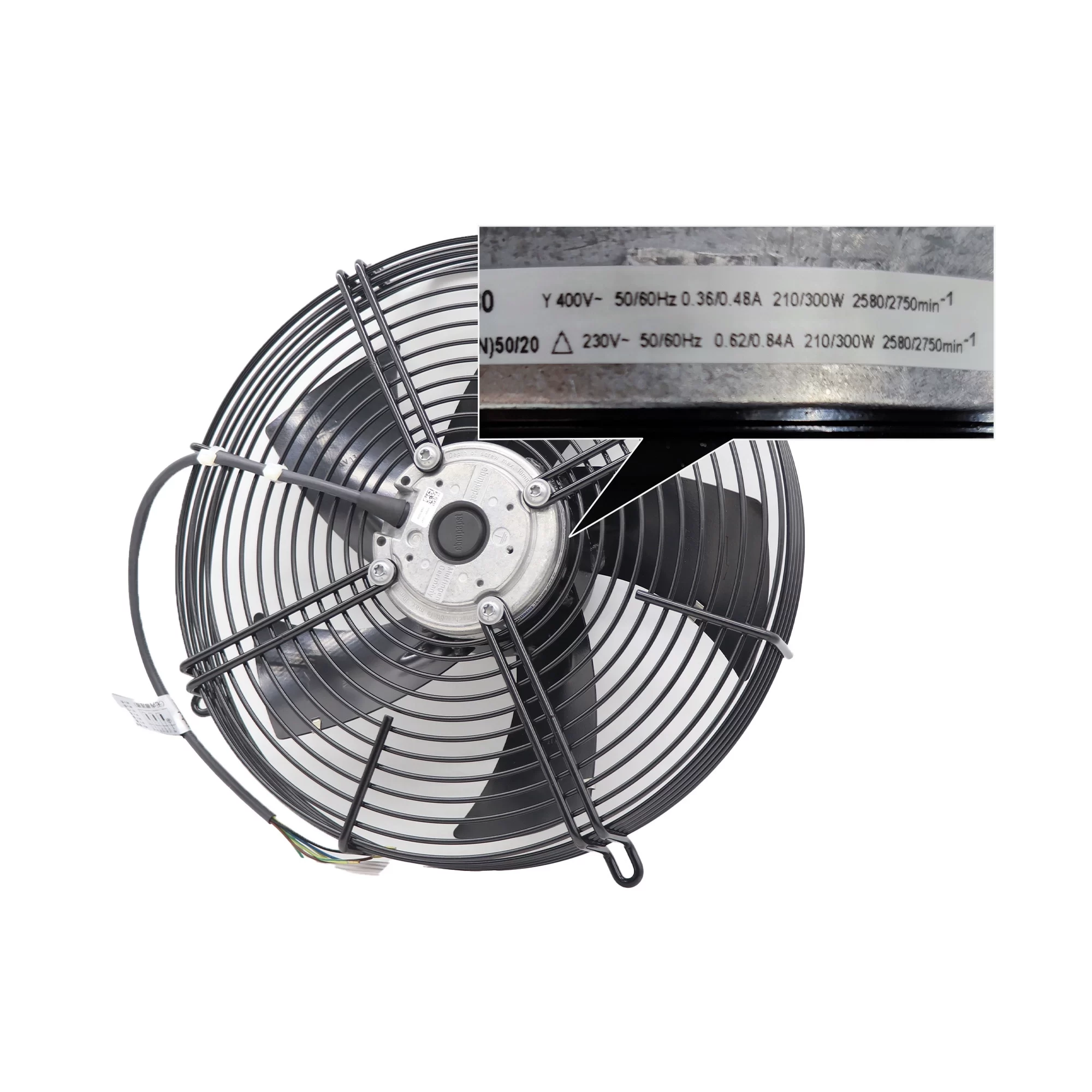

At 230V/50Hz:
Current Draw: 0.62 A
Power Input: 210 W
Fan Speed: 2580 RPM

At 230V/60Hz:
Current Draw: 0.84 A
Power Input: 300 W
Fan Speed: 2750 RPM

At 400V/50Hz:
Current Draw: 0.36 A
Power Input: 210 W
Fan Speed: 2580 RPM

At 400V/60Hz:
Current Draw: 0.48 A
Power Input: 300 W
Fan Speed: 2750 RPM

Application: Industrial cooling, cold storage, ventilation systems.
