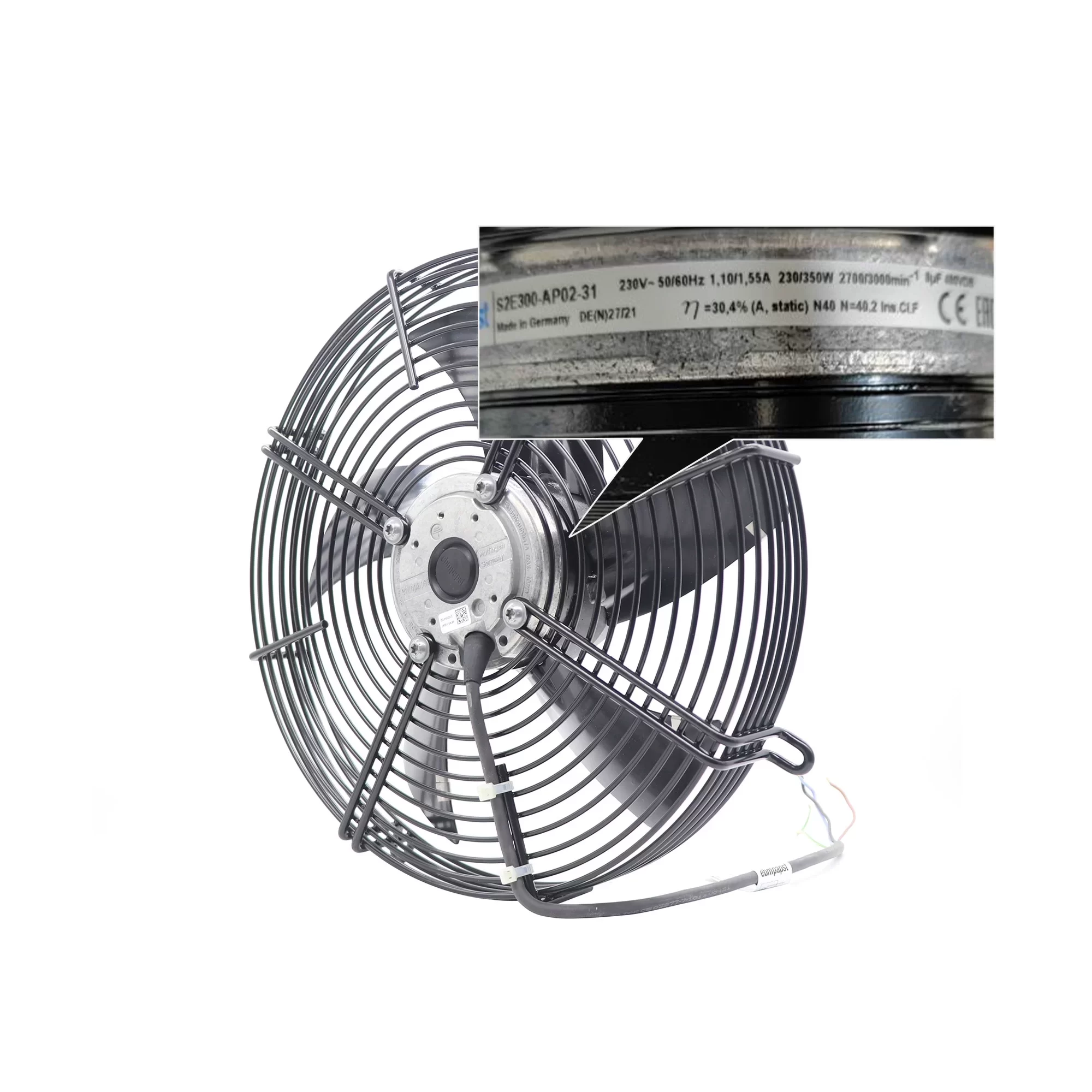

S2E300-AP02-31 ebmpapst 230V AC Axial Fan

Description

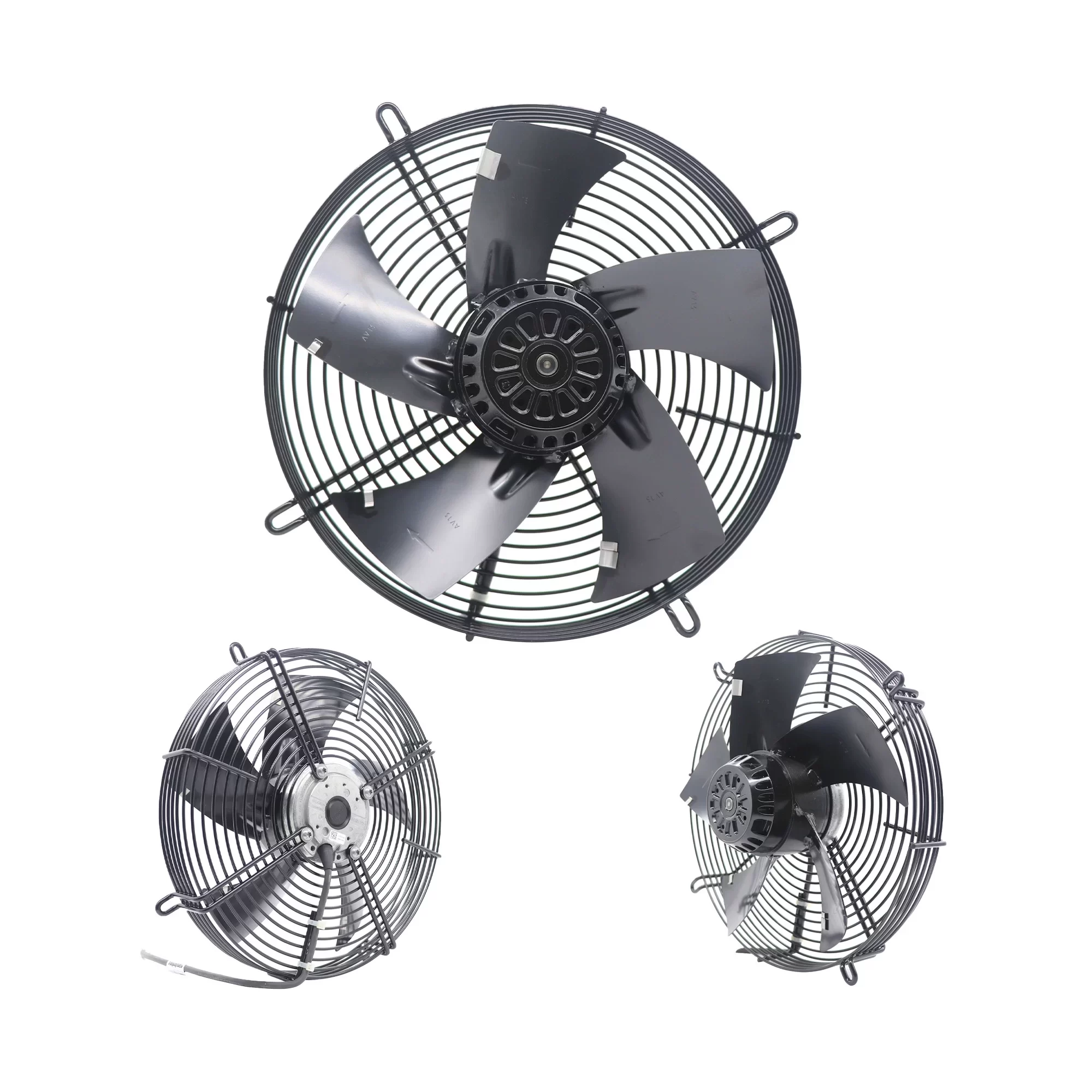

The ebmpapst S2E300-AP02-31 is an AC Axial Fan measuring 360x104mm with a 300mm diameter. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 1.10A of current, consumes 230W of power, and achieves a speed of 2700 RPM, providing an airflow of 2007.05 CFM at a noise level of 73 dBA. When running at 60Hz, the current is 1.55A, power is 350W, and the speed reaches 3000 RPM, with an airflow of 2201.28 CFM at a noise level of 76 dBA. This fan features a durable ball bearing system and has an IP44 ingress protection level. With a die-cast aluminum housing and a sheet steel impeller, it is a reliable solution for applications requiring high airflow, such as heat exchangers, condensers, and other industrial cooling systems.

S2E300-AP02-31 Fan Parameters
Model: S2E300-AP02-31
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 360 x 104 mm, 300 mm diameter
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Weight: 4.1 kg
Bearing Type: Ball Bearing
Protection Level: IP44
Termination: 2 Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Sheet steel, painted black
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature: -25 to 50 °C
Motor Protection: Thermal overload protector wired internally

At 230V/50Hz:
Current Draw: 1.10 A
Power Input: 230 W
Fan Speed: 2700 RPM
Airflow: 2007.05 CFM
Noise Level: 73 dBA

At 230V/60Hz:
Current Draw: 1.55 A
Power Input: 350 W
Fan Speed: 3000 RPM
Airflow: 2201.28 CFM
Noise Level: 76 dBA

Application: Heat exchangers, condensers, and industrial cooling systems.
