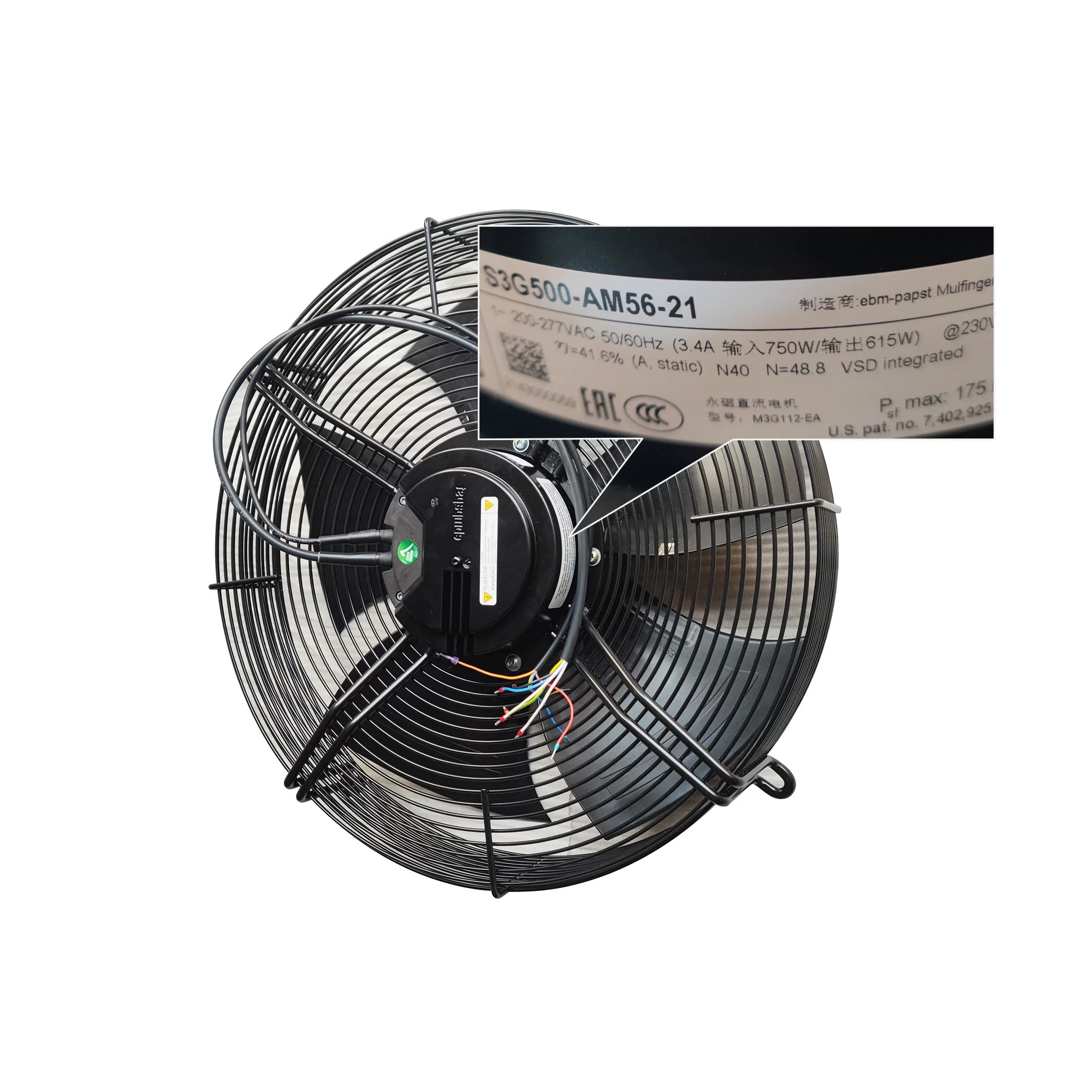

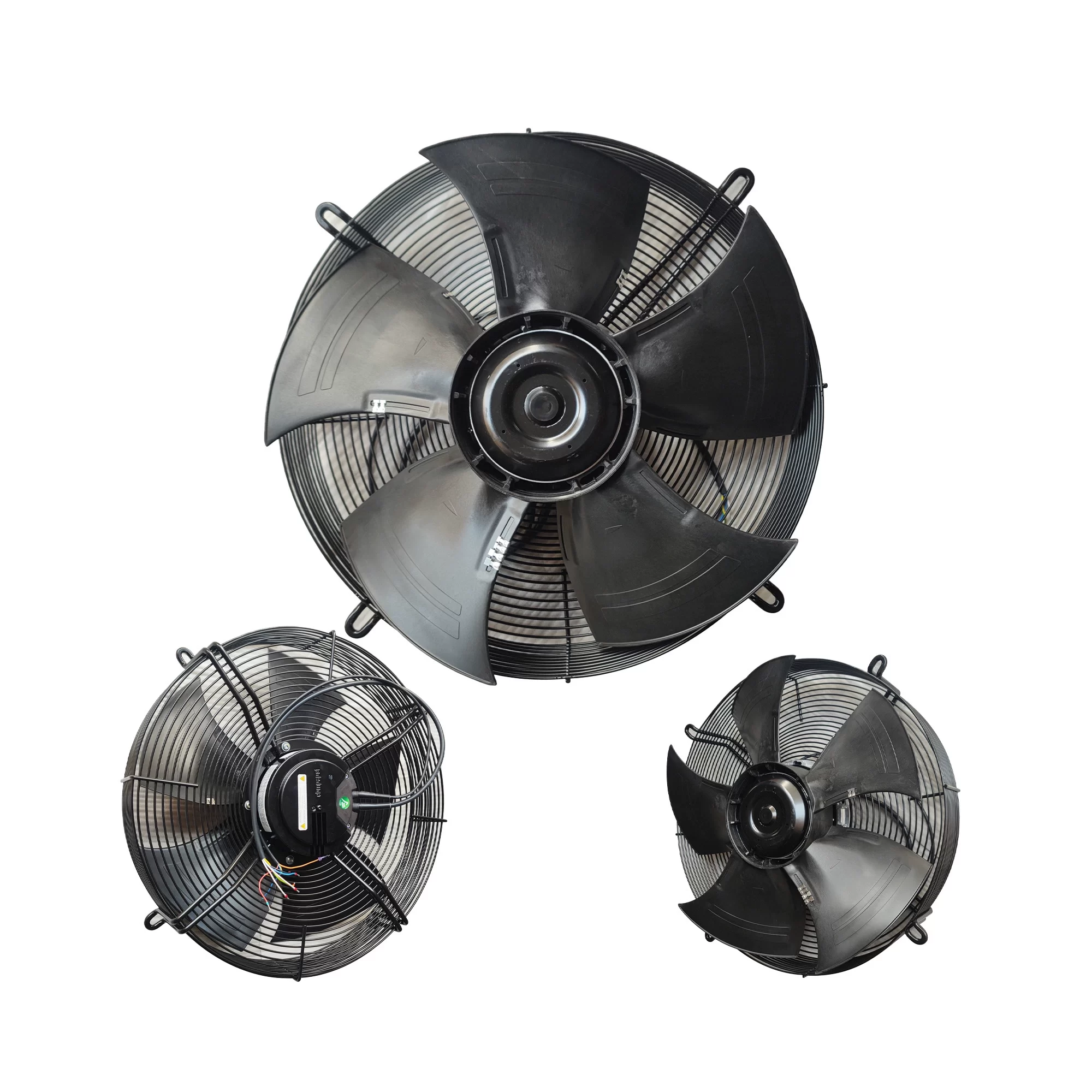

S3G500-AM56-21 ebmpapst 230V 3.4A 750W axial fan

$1,381.00

SKU: S3G500-AM56-21
Tag:

Description

The ebmpapst S3G500-AM56-21 is an AC Axial Fan with an EC motor with a 500mm diameter. It operates on 230VAC at both 50Hz and 60Hz. It draws 3.4A of current, consumes 750W of power, and achieves a speed of 1420 RPM, providing an airflow of 5850 m³/h (3445 CFM) with a static pressure of 173 Pa. This fan features a durable ball bearing system and has an IP54 ingress protection level. With an aluminum housing and a mild steel impeller, it is a high-performance solution for applications like cooling towers and industrial air conditioning systems.

S3G500-AM56-21 Fan Parameters
Model: S3G500-AM56-21
Manufacturer: ebmpapst
Type: AC Axial Fan with EC motor
Dimensions: 500 mm diameter
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Current Draw: 3.4 A
Power Input: 750 W
Fan Speed: 1420 RPM
Airflow: 5850 m³/h (3445 CFM)
Static Pressure: 173 Pa
Bearing Type: Ball Bearing
Protection Level: IP54
Housing Material: Aluminum
Impeller Material: Mild steel
Operating Temperature: -25 to 60 °C
Application: Cooling towers and industrial air conditioning systems.

S3G500-AM56-21 ebmpapst 230V 3.4A 750W axial fan
S3G500-AM56-21 ebmpapst 230V 3.4A 750W axial fan
S3G500-AM56-21 ebmpapst 230V 3.4A 750W axial fan
S3G500-AM56-21 ebmpapst 230V 3.4A 750W axial fan
S3G500-AM56-21 ebmpapst 230V 3.4A 750W axial fan

Additional information

Weight 12 kg
