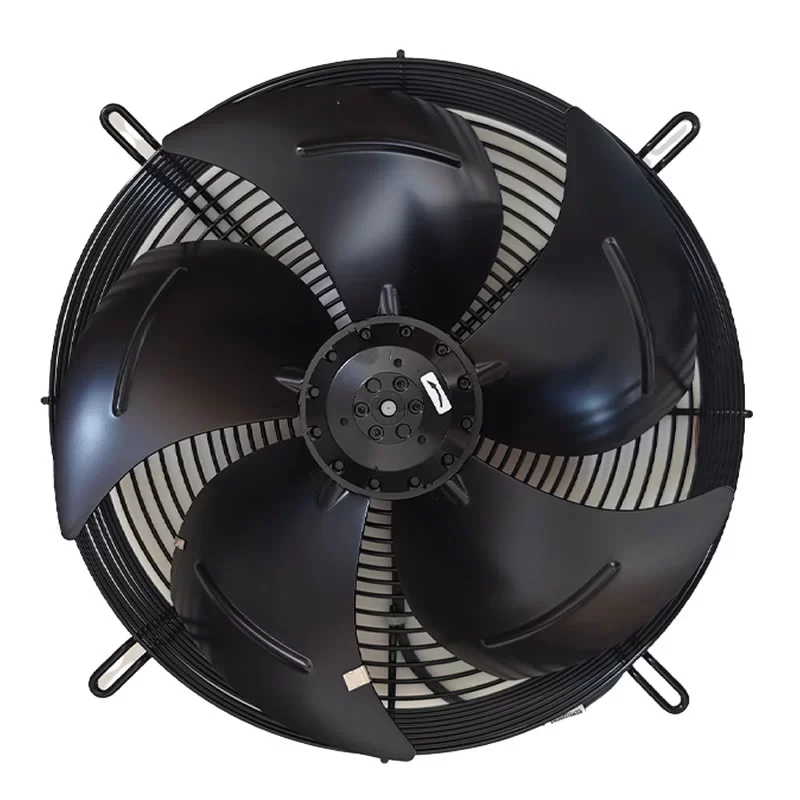

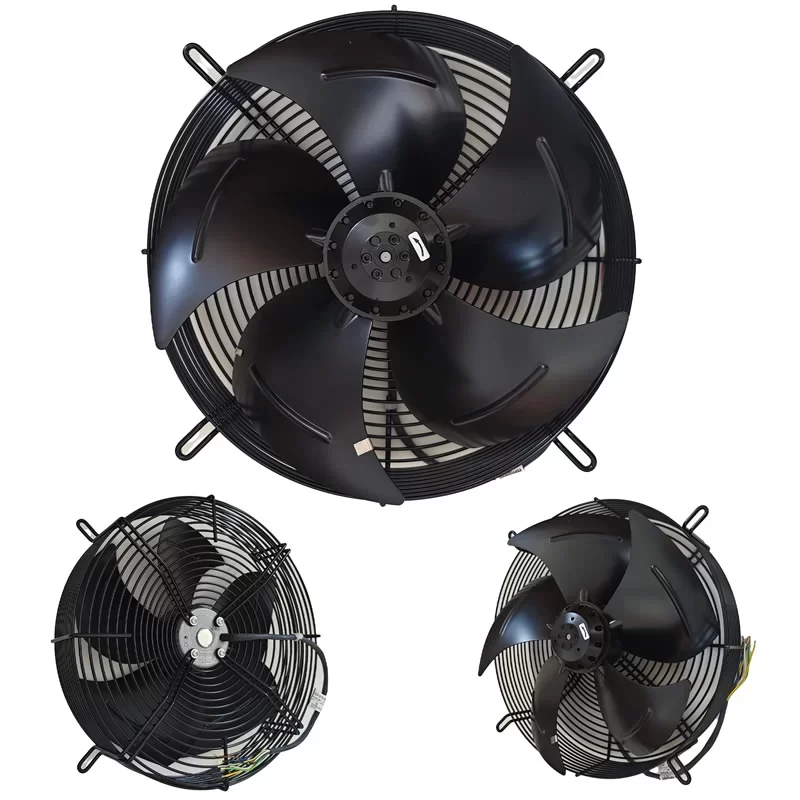

S4D330-AP10-30 ebmpapst 400V AC Axial Fan

Description

The ebmpapst S4D330-AP10-30 is a high-performance AC Axial Fan from the S series, measuring 330 mm in diameter. This three-phase fan is rated for a nominal voltage of 400 VAC and operates on 50 Hz/60 Hz frequencies. The fan’s two operating points are: speed of 1390/1570 RPM, power consumption of 100/130 W, and current draw of 0.26/0.25 A (50 Hz/60 Hz). It features a sheet steel impeller and housing, maintenance-free ball bearings, and a degree of protection of IP44. The fan is particularly suitable for applications that require high air flow at medium pressure, such as heat exchangers, condensers, refrigeration, and air conditioning systems.

S4D330-AP10-30 Fan Parameters
Model: S4D330-AP10-30
Manufacturer: ebmpapst
Fan Type: AC Axial Fan
Dimensions: 330 mm
Phase: 3
Nominal Voltage: 400 VAC
Frequency: 50 Hz/60 Hz
Speed: 1390 / 1570 RPM
Power Consumption: 100 / 130 W
Current Draw: 0.26 / 0.25 A
Min. Ambient Temperature: −25 ∘C
Max. Ambient Temperature: 55 ∘C
Impeller Material: Sheet steel (enameled in black)
Direction of Rotation: Counter-clockwise, seen on rotor
Direction of Air Flow: “V” (blowing over struts)
Number of Blades: 5
Degree of Protection: IP44
Insulation Class: “F”
Installation Position: Any
Mode: S1 (Continuous operation)
Motor Bearing: Ball bearing
Motor Protection: Thermal Overload Protector (TOP) wired internally
Protection Class Assignment: I (if protective earth is connected by customer)
Conformity with Standards: CE
Approval: CCC

Application
The S4D330-AP10-30 is an efficient solution for moving large volumes of air in systems with moderate back pressure. It is primarily used in refrigeration technology, commercial cooling units, heat pumps, air conditioning (HVAC) systems, and heat exchangers.
