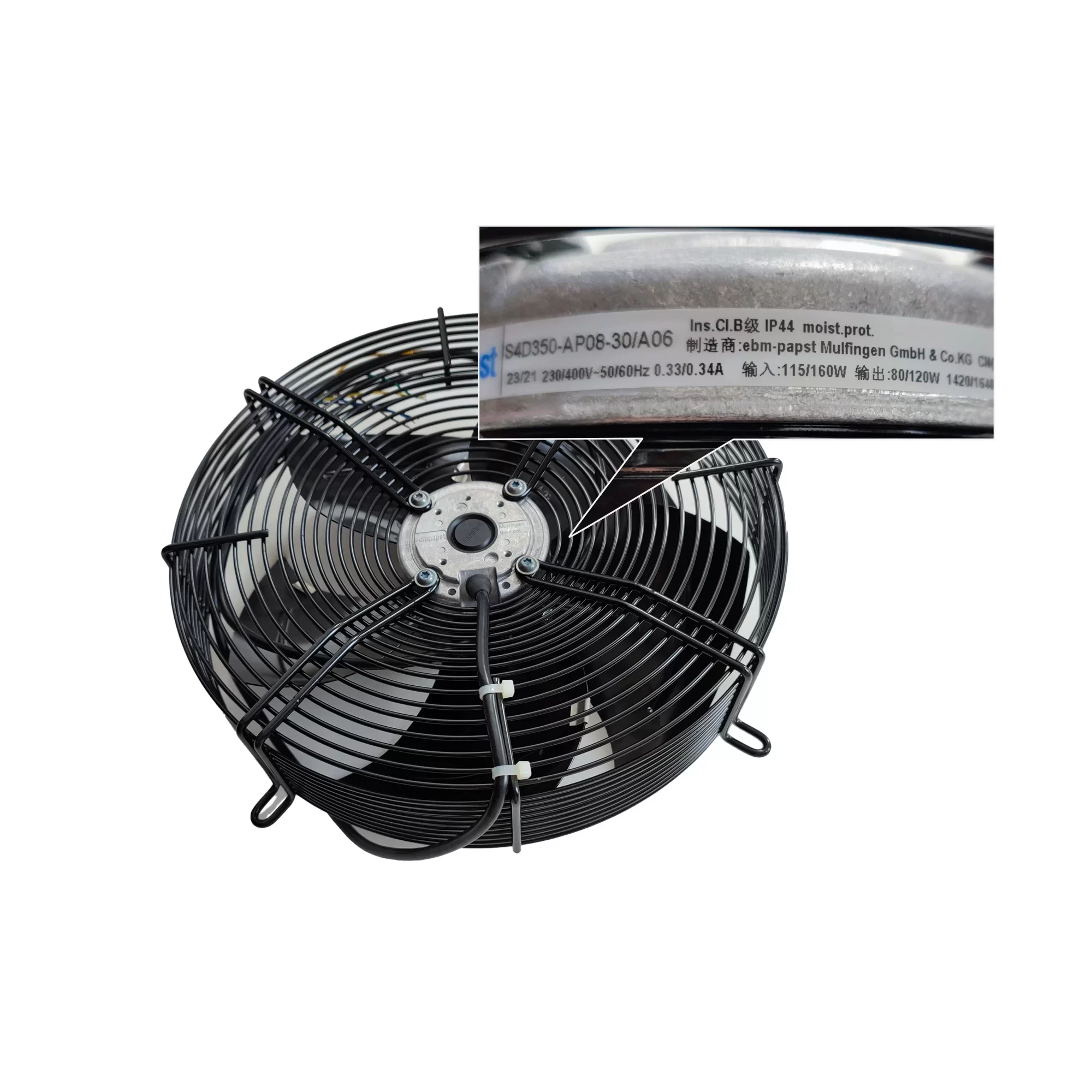

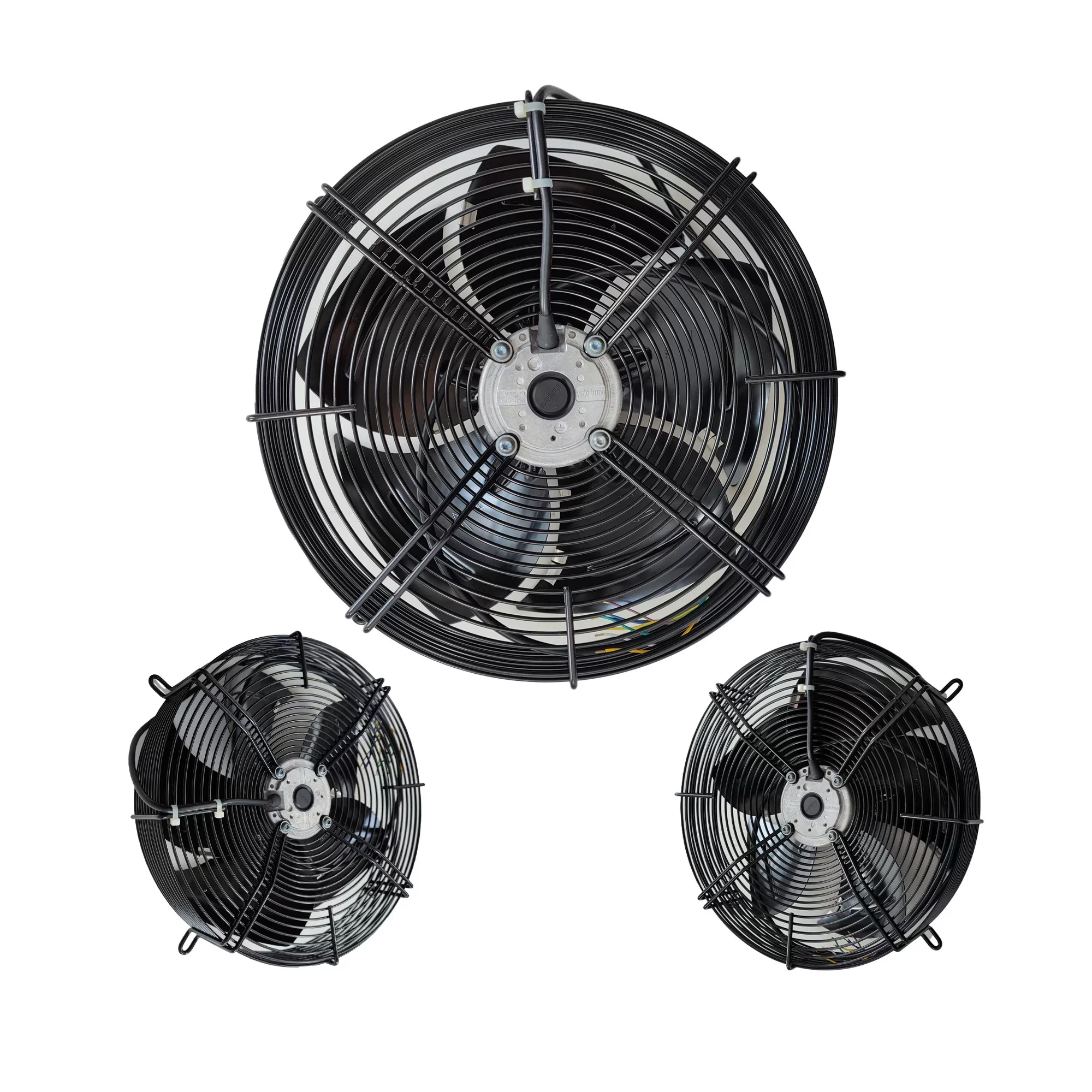

S4D350-AP08-30/A06 ebmpapst 230/400V AC Axial Fan

Description

The ebmpapst S4D350-AP08-30/A06 is an AC Axial Fan with a three-phase motor with a 350mm diameter. It is a multi-frequency and multi-voltage product that operates on 230V and 400V at both 50Hz and 60Hz. At 50Hz, regardless of the connection voltage, it consumes 115W of power, draws 0.33A of current, and achieves a speed of 1420 RPM. When operating at 60Hz, it consumes 160W of power, draws 0.34A of current, and reaches a speed of 1640 RPM. This fan features a durable ball bearing system and has an IP44 ingress protection level. With a thermal overload protector, it is a reliable solution for various industrial cooling and ventilation applications.

S4D350-AP08-30/A06 Fan Parameters
Model: S4D350-AP08-30/A06
Manufacturer: ebmpapst
Type: AC Axial Fan with Three-Phase Motor
Dimensions: 350 mm diameter
Rated Voltage: 230/400 VAC
Frequency: 50/60 Hz
Bearing Type: Ball Bearing
Protection Level: IP44
Motor Protection: Thermal overload protector
Operating Temperature: -25 to 65 °C

230V/50Hz
Current Draw: 0.61 A
Power Input: 115 W
Fan Speed: 1420 RPM

400V/50Hz
Current Draw: 0.33 A
Power Input: 115 W
Fan Speed: 1420 RPM

230V/60Hz
Current Draw: 0.34 A
Power Input: 160 W
Fan Speed: 1640 RPM

400V/60Hz
Current Draw: 0.34 A
Power Input: 160 W
Fan Speed: 1640 RPM

Application: Industrial cooling and ventilation applications.
