S4D350-AP08-36 ebmpapst 230/400V AC Axial Fan

Description

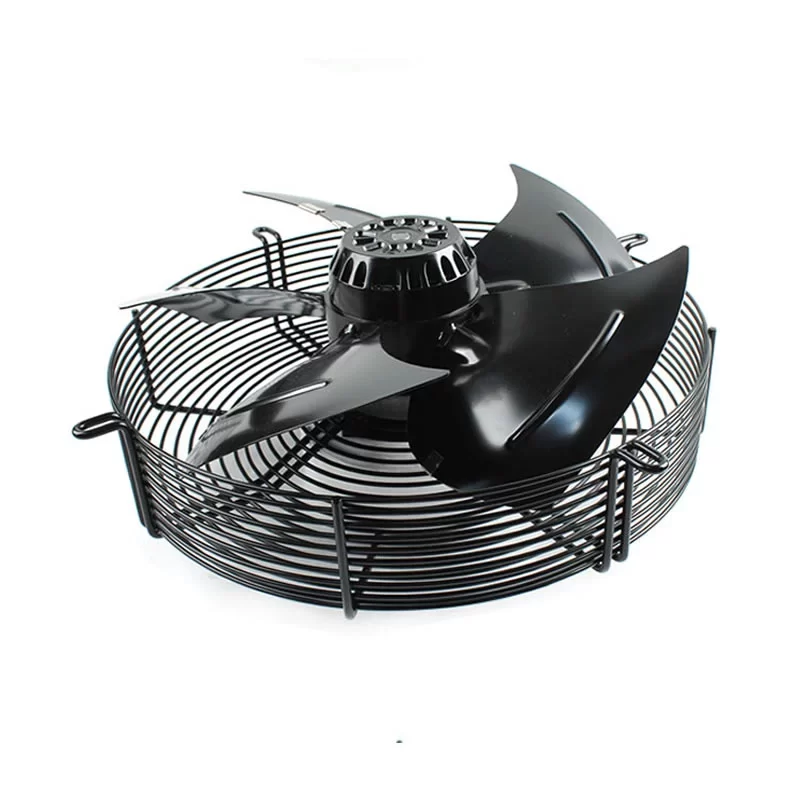

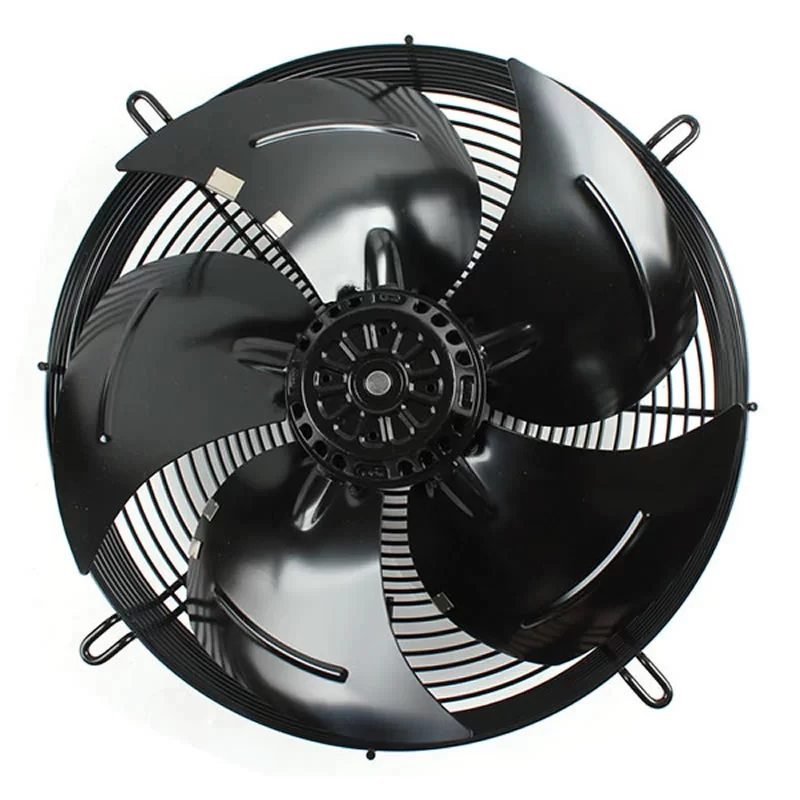

The ebmpapst S4D350-AP08-36 is a high-performance Single-Phase AC Axial Fan (350 mm impeller diameter) powered by the M4D074-DF external rotor motor. Operating on 230 V AC at 50/60 Hz, this model has a low current draw (0.35 A at 50 Hz) and operates at speeds up to 1600 RPM. Its IP44 rating makes it suitable for general commercial and industrial ventilation applications where dust and splashing water protection is needed.

S4D350-AP08-36 Fan Parameters
Model: S4D350-AP08-36
Motor Model: M4D074-DF
Manufacturer: ebmpapst
Type: AC Axial Fan
Design: Sickle Blade (S-Design)
Impeller Diameter: 350 mm
Nominal Voltage: 230 / 240 V AC
Frequency: 50 / 60 Hz
Phase: 1 (Single-Phase)
Rated Current (50 / 60 Hz): 0.35 / 0.34 A
Input Power Consumption (50 / 60 Hz): 130 / 180 W
Output Power (50 / 60 Hz): 45 / 45 W
Speed (50 / 60 Hz): 1410 / 1600 RPM
Max. Airflow (Approx): 3000 / 3400 m³/h (1765 / 2000 CFM)
Max. Static Pressure (Approx): 100 / 120 Pa
Noise Level (Approx): 65 / 68 dB(A)
Protection Rating: IP44
Insulation Class: B
Bearing Type: Ball Bearing (Maintenance-free)
Electrical Connection: Terminal Box
Housing Material: Sheet Steel / Aluminum
Life Expectancy: 40000 h (at 40 °C)
Min. Ambient Temperature: -40 °C
Max. Ambient Temperature: 70 °C
Certifications: CE, VDE

Application
The ebmpapst S4D350-AP08-36 single-phase fan is ideal for commercial installations where three-phase power is unavailable or impractical. Its primary uses include air-cooled condensers, evaporators, heat pumps, ducted ventilation systems in shops or restaurants, and industrial cabinet cooling, providing reliable air movement with moderate ingress protection (IP44).
