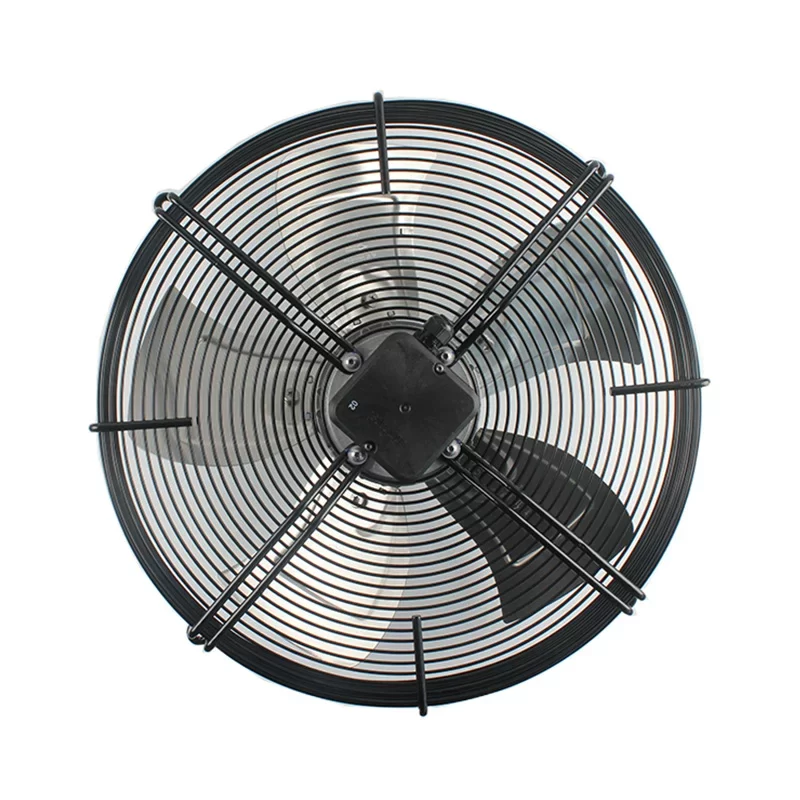

Description
The ebmpapst S4D500-AD03-01 is a high-performance industrial AC axial fan with a nominal voltage of 400/480 VAC and an impeller size of 500 mm, specifically engineered for demanding thermal management in large-scale condensers and industrial ventilation systems. Driven by a robust three-phase M4D110-GF external rotor motor with a maximum power consumption of 1220 W at 480 VAC (60 Hz) in a Delta (Δ) connection and 770 W in a Star (Y) connection, this unit features a heavy-duty ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its aerodynamic design with 5 backward-curved die-cast aluminum blades delivers a massive airflow of 11300 m³/h at 1570 RPM (60 Hz Δ) and 8120 m³/h at 1035 RPM (50 Hz Y), achieving high static efficiency across various wiring configurations. Constructed with an aluminum-cast rotor surface, an ABS plastic terminal box, and condensate discharge holes on both rotor and stator sides, this 15.5 kg fan unit provides a dependable and rugged cooling solution with IP54 protection and Class F insulation for cooling towers, dry coolers, and industrial AHU infrastructure at the end.

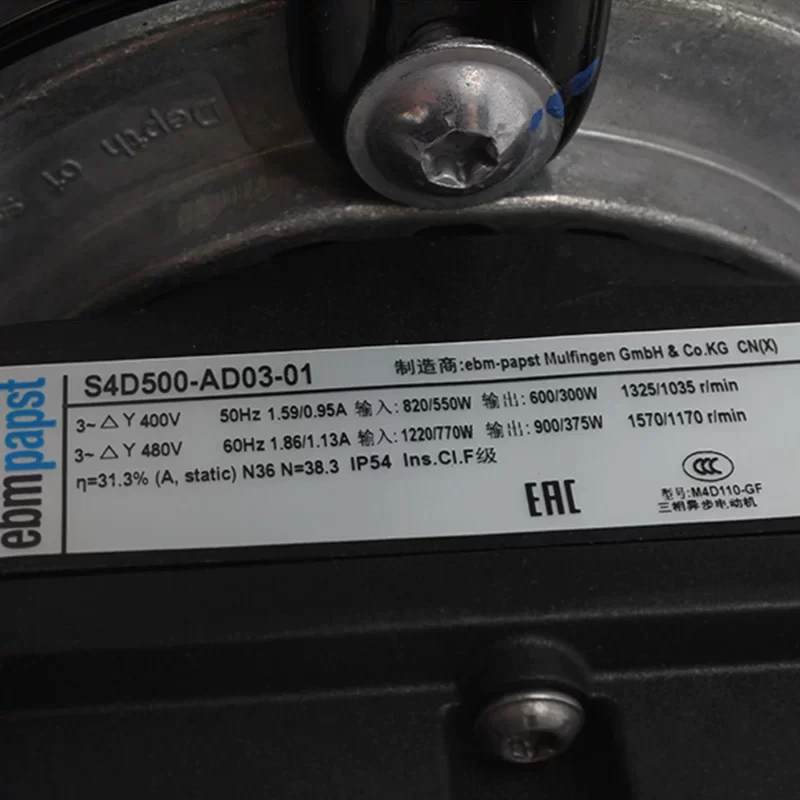

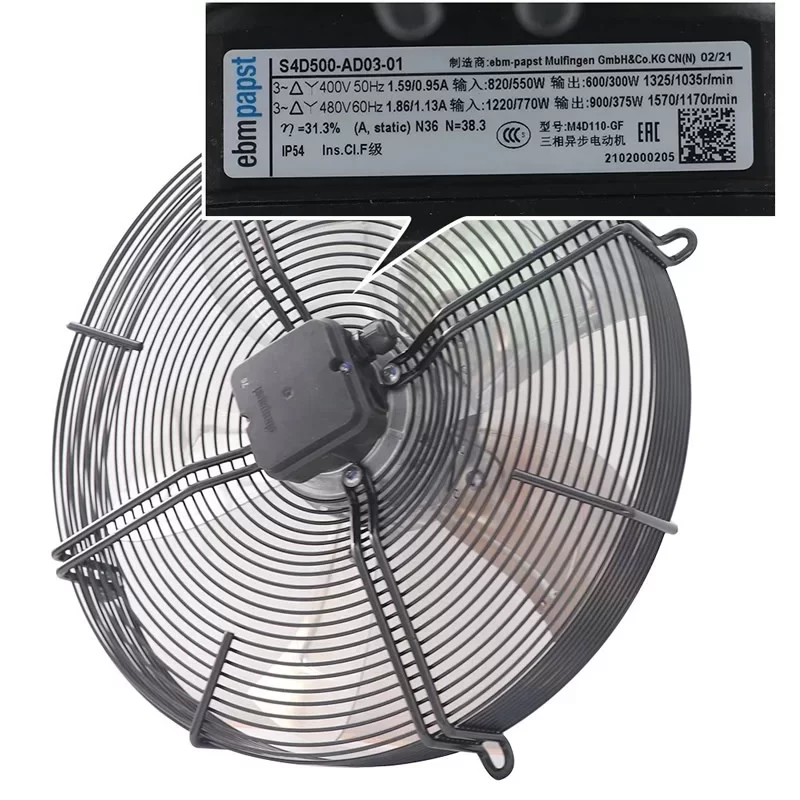

S4D500-AD03-01 Fan Parameters
Model Number: S4D500-AD03-01
Manufacturer: ebmpapst
Motor Model: M4D110-GF
Series: S Series
Type: AC Axial Fan
Impeller Size: 500 mm
Weight: 15.5 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC / 480 VAC (3-phase)
Frequency: 50 / 60 Hz
Power Consumption (50 Hz): 820 W (Δ) / 550 W (Y)
Power Consumption (60 Hz): 1220 W (Δ) / 770 W (Y)
Nominal Current (50 Hz): 1.59 A (Δ) / 0.95 A (Y)
Nominal Current (60 Hz): 1.86 A (Δ) / 1.13 A (Y)
Speed (50 Hz): 1325 RPM (Δ) / 1035 RPM (Y)
Speed (60 Hz): 1570 RPM (Δ) / 1170 RPM (Y)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow (50 Hz): 9590 m³/h (Δ) / 8120 m³/h (Y)
Actual Air Flow (60 Hz): 11300 m³/h (Δ) / 8970 m³/h (Y)
Max. Back Pressure (50 Hz): 160 Pa (Δ) / 100 Pa (Y)
Max. Back Pressure (60 Hz): 150 Pa (Δ) / 84 Pa (Y)
Sound Pressure Level: 71 dB(A) (50 Hz) / 74 dB(A) (60 Hz)
Motor Protection: Thermal overload protector (TOP) brought out
Insulation Class: Class F
Electrical Hookup: Terminal box (ABS plastic, black)
Cable Exit: Axial

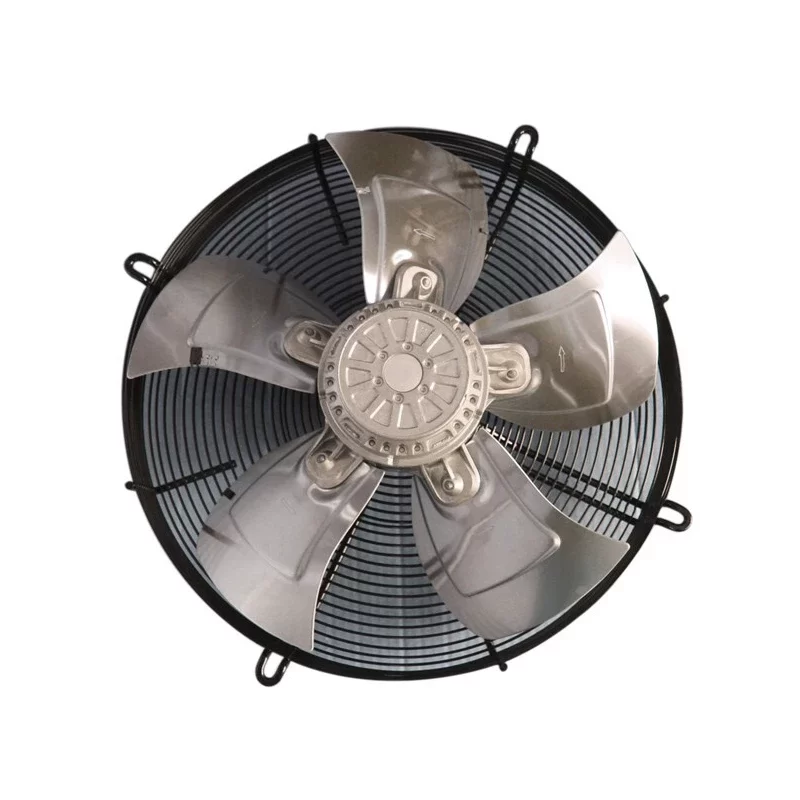

Number of Blades: 5
Blade Angle: 0°
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: “V” (Exhaust over struts)
Impeller Material: Die-cast aluminum
Rotor Surface: Cast in aluminum
Guard Grille Material: Steel, phosphated and coated in black plastic
Installation Position: Any
Condensate Discharge: Rotor and stator sides
Degree of Protection: IP54
Max. Operating Temp: +80 °C (50 Hz) / +50 °C (60 Hz)
Standard Compliance: CE; EN 61800-5-1
Approval Agency: VDE; GOST
Application
The ebmpapst S4D500-AD03-01 AC fan is primarily utilized in large industrial condensers, dry coolers, heavy-duty ventilation units, and heat exchangers requiring high-performance three-phase power supply.
