S4D500-AE03-01 ebmpapst 400V AC Axial Fan

Description

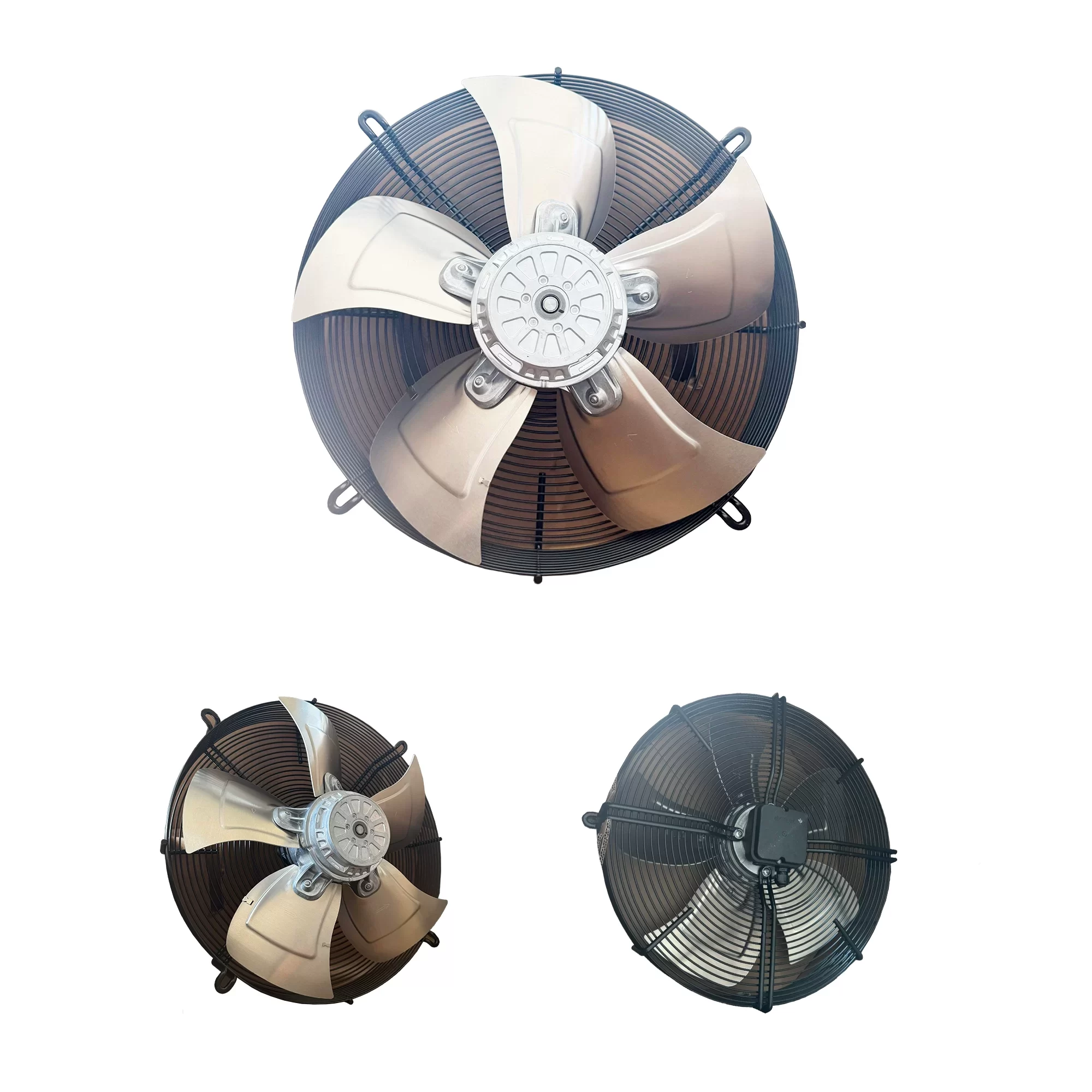

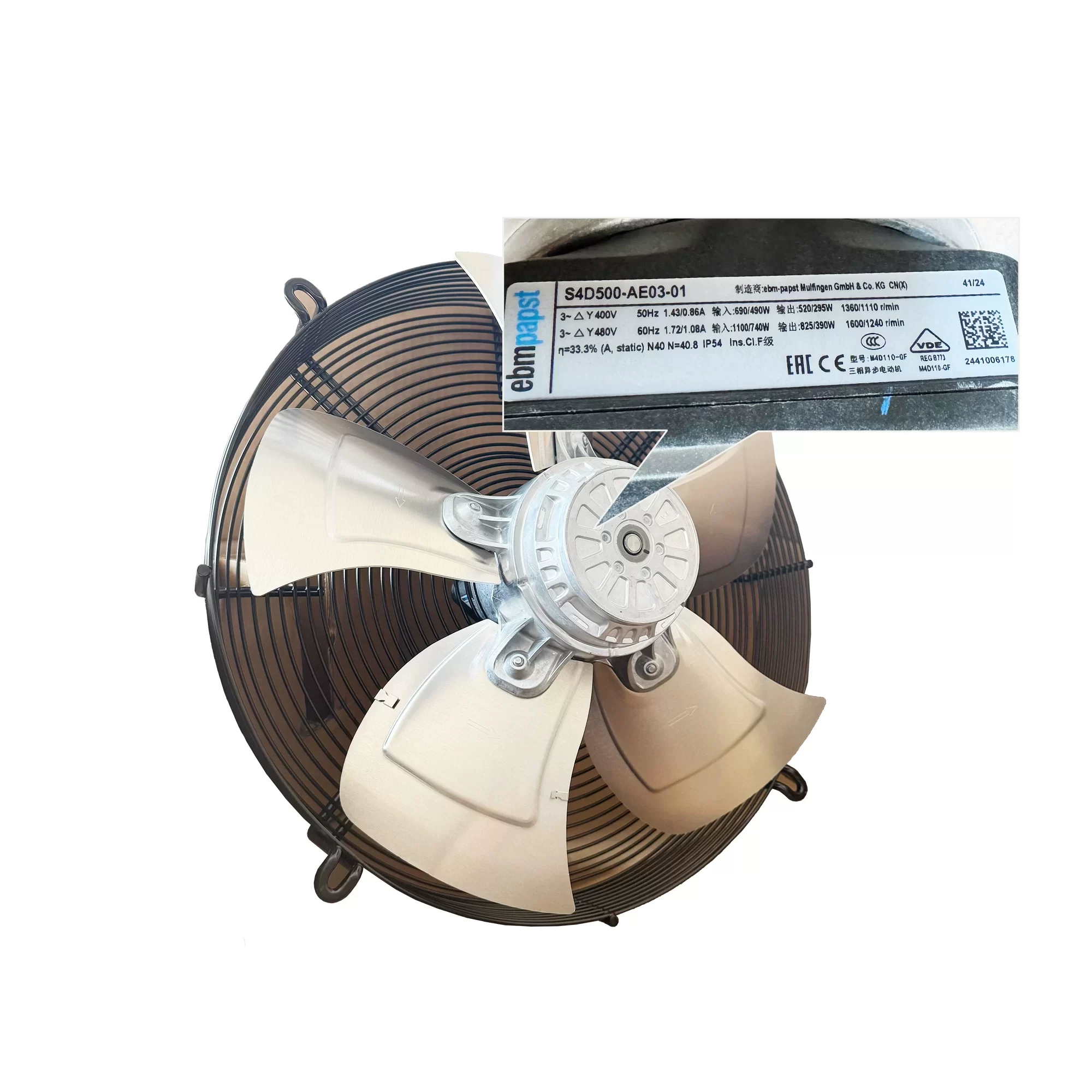

The ebmpapst S4D500-AE03-01 is an AC Axial Fan with a three-phase motor measuring 500mm in diameter. It operates on 400VAC at a single frequency of 50Hz. This fan draws 1.43A of current, consumes 690W of power, and achieves a speed of 1360 RPM. It provides an airflow of 8930 m³/h with a static pressure of 160 Pa at a noise level of 71 dBA. The fan features a durable ball bearing system and has an IP54 ingress protection level. With an aluminum impeller and a robust construction, it is a reliable solution for various air handling and cooling applications.

S4D500-AE03-01 Fan Parameters
Model: S4D500-AE03-01
Manufacturer: ebmpapst
Type: AC Axial Fan with Three-Phase Motor
Dimensions: 500 mm diameter
Rated Voltage: 400 VAC
Frequency: 50 Hz
Current Draw: 1.43 A
Power Input: 690 W
Fan Speed: 1360 RPM
Airflow: 8930 m³/h
Static Pressure: 160 Pa
Noise Level: 71 dB(A)
Bearing Type: Ball Bearing
Weight: 13.4 kg
Protection Level: IP54
Housing Material: Die-cast aluminum
Impeller Material: Aluminum sheet
Motor Protection: Thermal overload protector internally connected
Application: Air handling and cooling applications.
