S4D500-AM03-01 ebmpapst 400/460V AC Axial Fan

Description

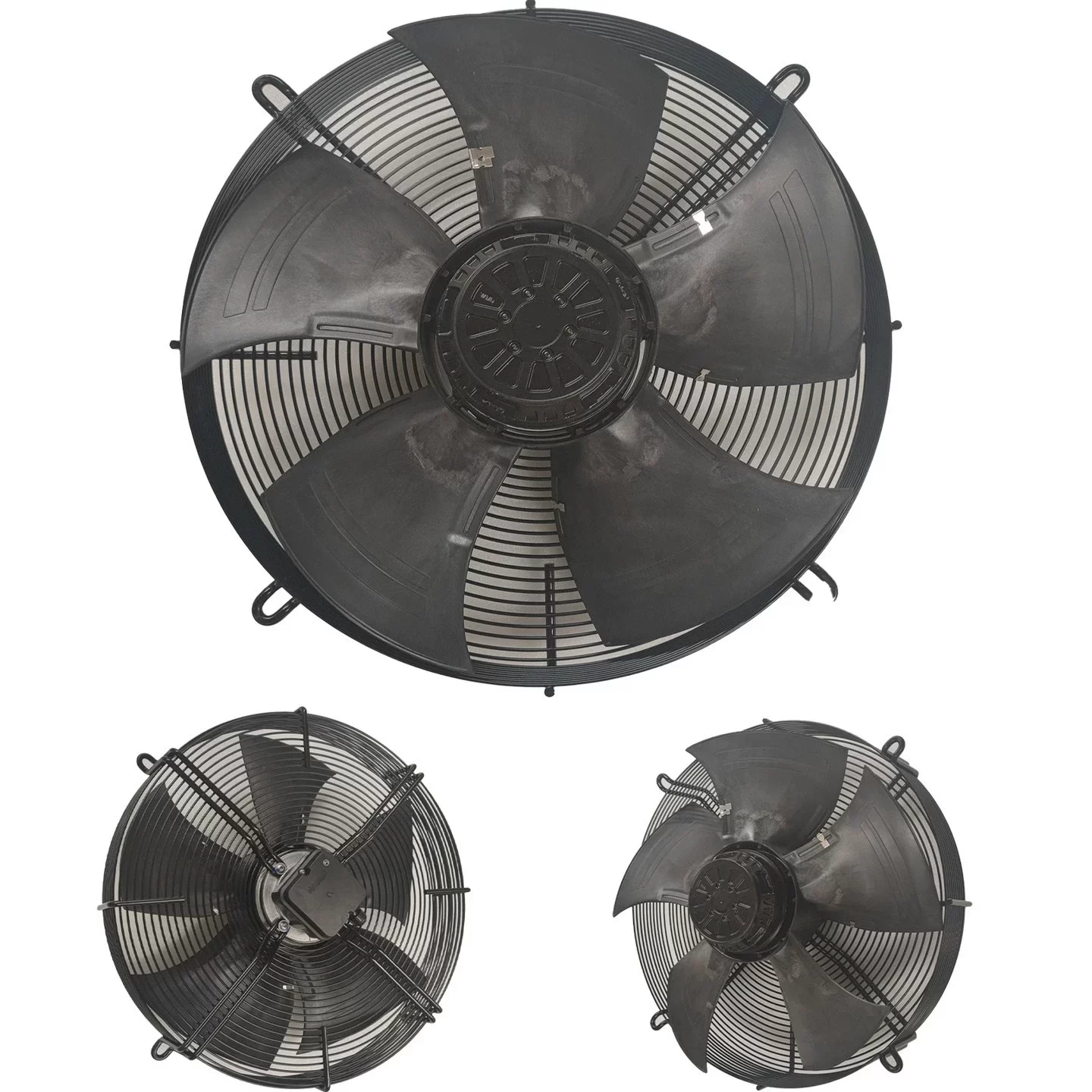

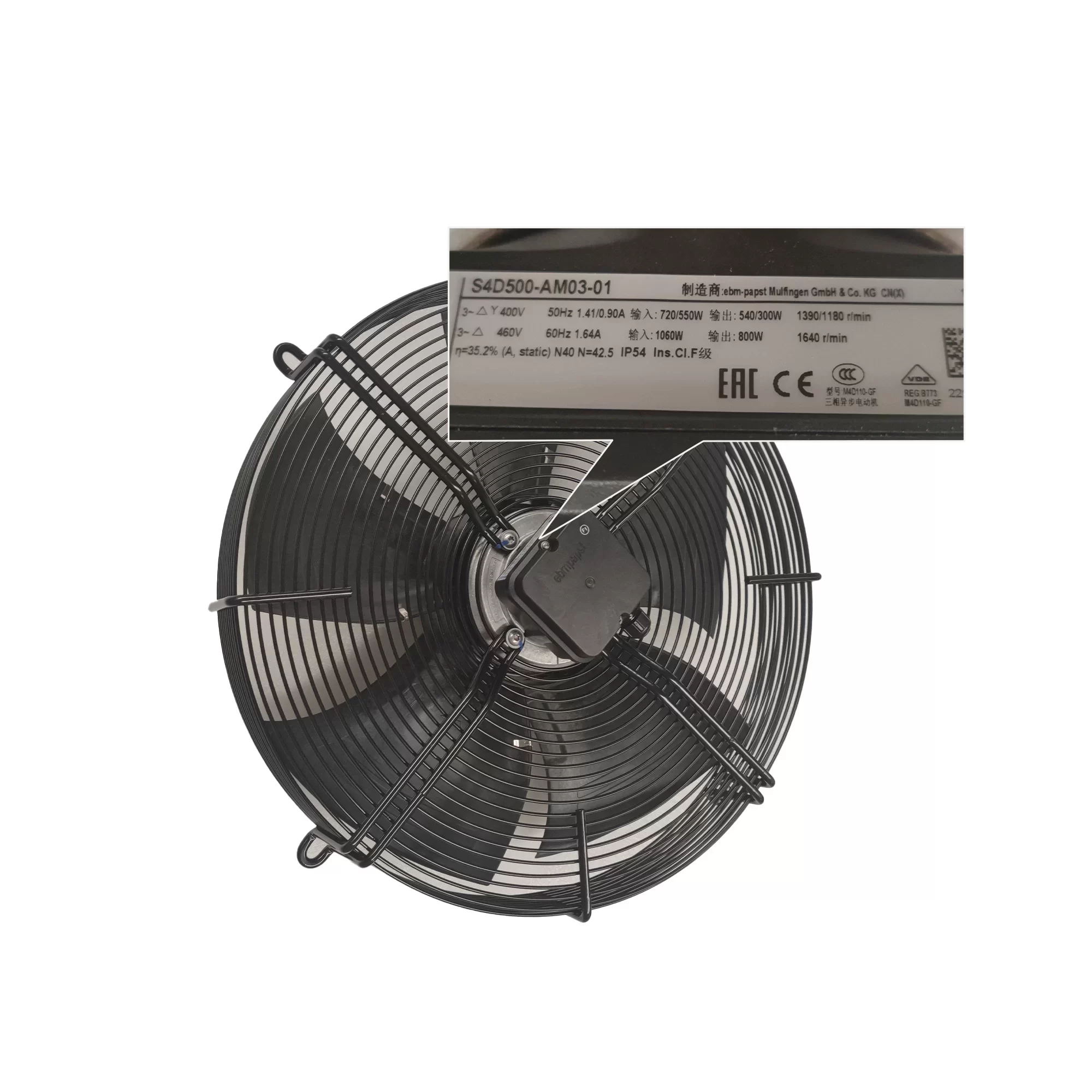

The ebmpapst S4D500-AM03-01 is an AC Axial Fan with a three-phase motor measuring 565x210mm. It is a multi-frequency product that operates on 400V at 50Hz and 460V at 60Hz. At 400V/50Hz, the fan offers two performance points: it draws 1.41A of current with a 720W input power at 1390 RPM, and 0.90A with a 550W input at 1180 RPM. At 460V/60Hz, it draws 1.64A of current, consumes 1060W of input power, and achieves a speed of 1640 RPM. This fan has a durable ball bearing system and features an IP54 ingress protection level, making it a reliable solution for various demanding industrial applications.

S4D500-AM03-01 Fan Parameters
Model: S4D500-AM03-01
Manufacturer: ebmpapst
Type: AC Axial Fan with Three-Phase Motor
Dimensions: 565 x 210 mm
Rated Voltage: 400/460 VAC
Frequency: 50/60 Hz
Bearing Type: Ball Bearing
Protection Level: IP54
Termination: Terminal block
Housing Material: Steel
Impeller Material: Metal
Motor Protection: Thermal overload protector
Operating Temperature: -25 to 65 °C

At 400V/50Hz (Point 1):
Current Draw: 1.41 A
Power Input: 720 W
Power Output: 540 W
Fan Speed: 1390 RPM

At 400V/50Hz (Point 2):
Current Draw: 0.90 A
Power Input: 550 W
Power Output: 300 W
Fan Speed: 1180 RPM

At 460V/60Hz:
Current Draw: 1.64 A
Power Input: 1060 W
Power Output: 800 W
Fan Speed: 1640 RPM

Application: Industrial and ventilation applications.
