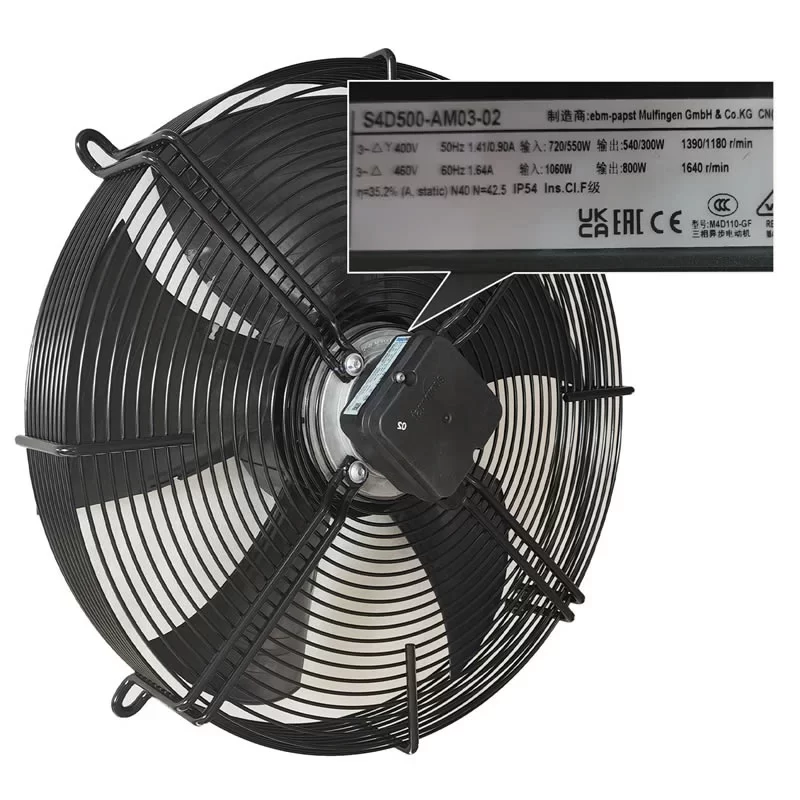

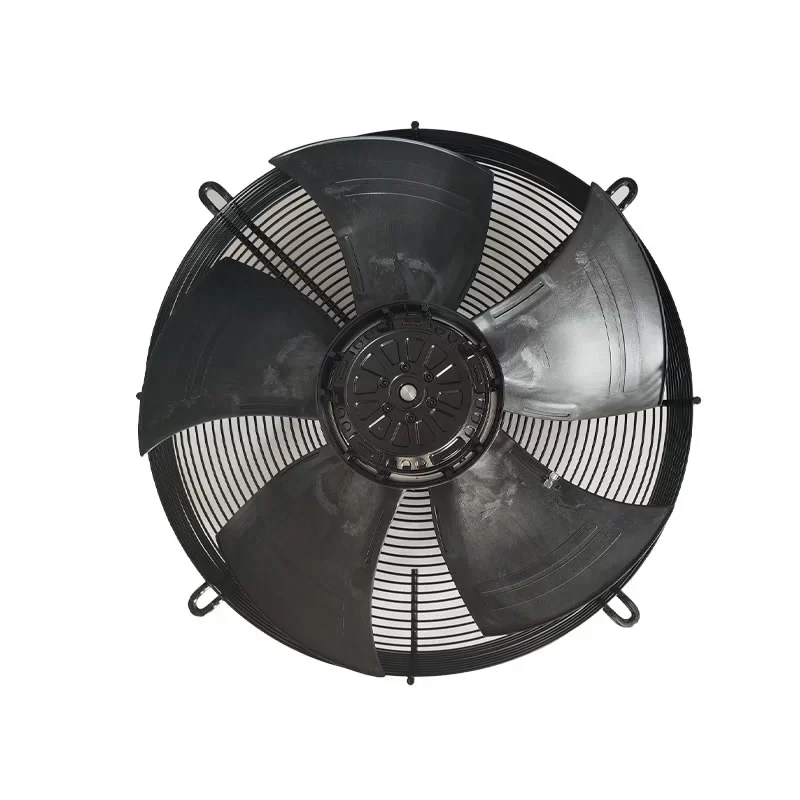

S4D500-AM03-02 ebmpapst 400V/460V 500mm AC Axial Fan

Description

The ebmpapst S4D500-AM03-02 is a high-performance 3~ AC Axial Fan with a 500 mm impeller diameter, featuring the M4D110-GF external rotor motor. This industrial unit is highly versatile, operating at 400 VAC or 460 VAC with both Delta (Δ) and Star (Y) connection options. Based on the technical data, it delivers a maximum speed of 1640 RPM at 60 Hz (460V Δ) with a power input of 1060 W. The fan is designed with 5 blades made of press-fitted sheet steel blanks, sprayed with PP plastic for enhanced durability. It is ErP 2015 compliant with an efficiency grade of N 40.6 and an overall static efficiency of 33.4%. Rated at IP54 with Class F insulation and F4-1 humidity protection, the S4D500-AM03-02 is optimized for S1 continuous duty in large-scale condensers, heat exchangers, and industrial climate control systems.

S4D500-AM03-02 Fan Parameters
Manufacturer: ebmpapst
Model Number: S4D500-AM03-02
Motor Model: M4D110-GF
Type: AC Axial Fan
Phase: 3~
Nominal Voltage: 400 / 460 VAC
Connection: Delta (Δ) / Star (Y)
Frequency: 50 / 60 Hz
Dimensions: 565 x 196.5 mm
Impeller Size: 500 mm
Mass: 12.9 kg

[Electrical Data by Connection]
50Hz / 400V (Δ): 1390 RPM | 720 W | 1.41 A | Starting 6.5 A
50Hz / 400V (Y): 1180 RPM | 550 W | 0.90 A | Starting 2.2 A
60Hz / 400V (Δ): 1590 RPM | 1020 W | 1.70 A | Starting 5.9 A
60Hz / 460V (Δ): 1640 RPM | 1060 W | 1.64 A | Starting 6.8 A
Termination: Terminal box (PP plastic)
Insulation Class: F
Motor Bearing: Ball bearing

[ErP Directive & Efficiency Data]
Installation Category: A
Efficiency Category: Static
Efficiency Grade: N 40.6 (Actual)
ErP Request 2015: 40
Overall Efficiency ηes: 33.4%
Power Input Pe: 0.73 kW
Air Flow qv: 5860 m³/h
Pressure Increase psf: 151 Pa
Speed n: 1385 min-1
Specific Ratio: 1.00

[Performance & Protection]
Max. Back Pressure (50Hz Δ): 140 Pa
Max. Back Pressure (60Hz 460V Δ): 138 Pa
Min. Ambient Temperature: -40 °C
Max. Ambient Temperature (50Hz Δ): 65 °C
Max. Ambient Temperature (60Hz 460V Δ): 60 °C
Degree of Protection: IP54
Touch Current: <= 3.5 mA

[Materials & Construction]
Blade Material: Press-fitted sheet steel blank, sprayed with PP plastic
Guard Grille Material: Steel, coated in black plastic (RAL 9005)
Rotor Surface: Coated in black
Number of Blades: 5
Airflow Direction: “A”
Direction of Rotation: Clockwise, seen on rotor
Installation Position: Shaft horizontal or rotor on bottom
Mode: S1 (Continuous operation)

[Reliability & Protection]
Motor Protection: Thermal overload protector (TOP) brought out
Humidity Class: F4-1
Protection Class: I
Conformity: EN 61800-5-1; CE
Approval: VDE; EAC

Application
The ebmpapst S4D500-AM03-02 axial fan is a premier industrial thermal management solution designed for high-capacity heat dissipation in environments such as commercial refrigeration condensers, large-scale oil coolers, and air-cooled heat exchangers. Its “A” airflow direction and robust IP54-rated construction make it suitable for outdoor installation where exposure to moisture and dust is expected. The press-fitted steel blades with PP coating provide superior structural integrity while maintaining the aerodynamic performance needed to move nearly 6000 m³/h of air. With 400V/460V versatility and integrated thermal overload protection, this 500 mm fan ensures mission-critical reliability for power generation infrastructure, large-scale HVAC systems, and manufacturing process ventilation.
