Description

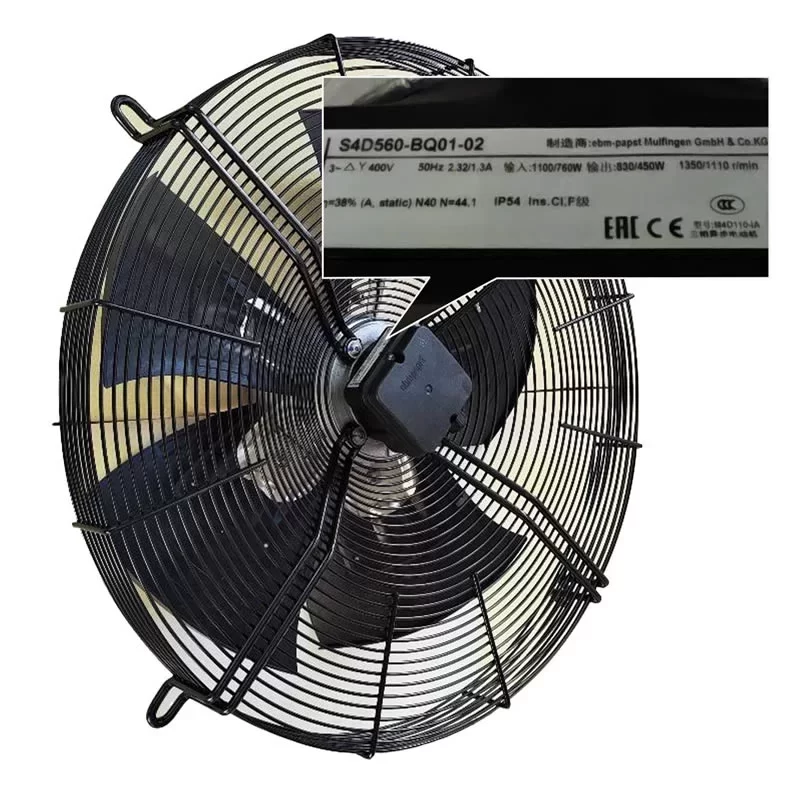

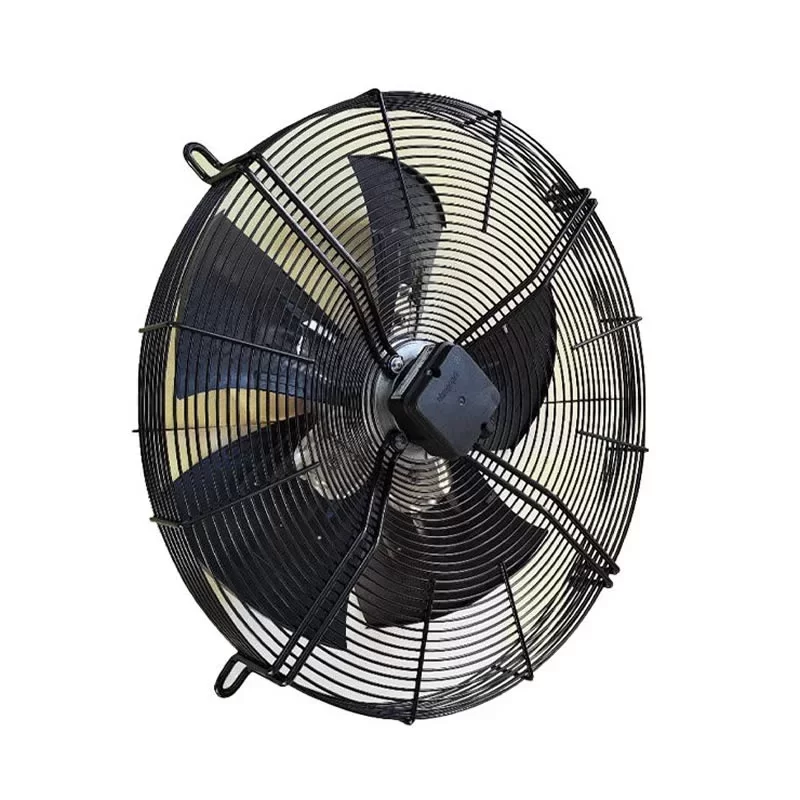

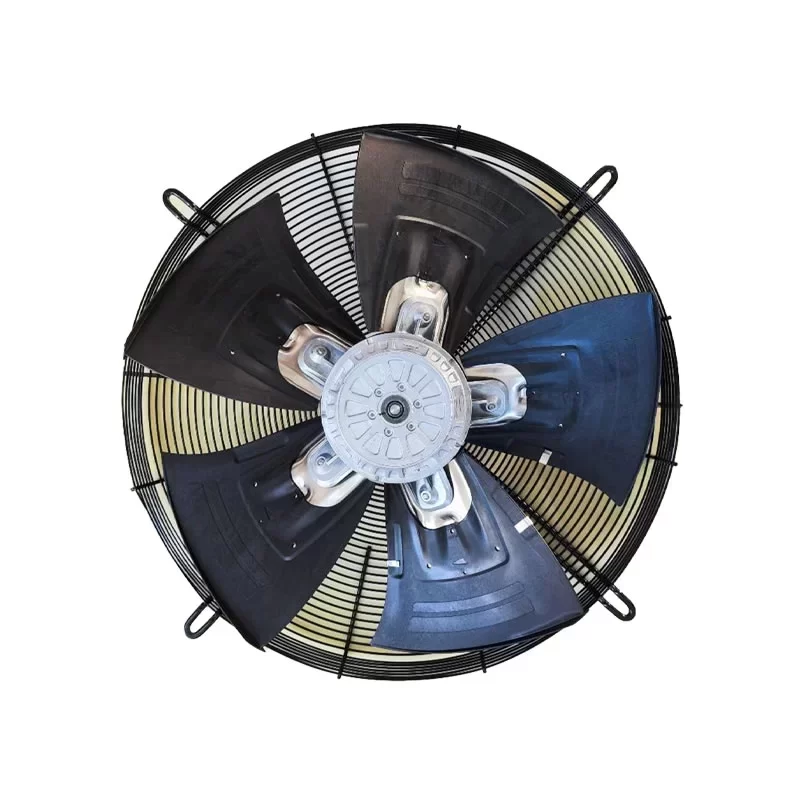

The ebmpapst S4D560-BQ01-02 is a high-capacity industrial AC axial fan with a nominal voltage of 400 VAC and an impeller size of 560 mm, specifically engineered for demanding thermal management in large-scale refrigeration and industrial cooling systems. Driven by a robust three-phase M4D110-IA external rotor motor with power ratings ranging from 760 W to 1380 W depending on wiring configuration (Δ/Y) and frequency, this unit features a heavy-duty ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its aerodynamic design with 5 blades, constructed from a PP plastic-sprayed aluminum insert, delivers a powerful airflow of 7300 m³/h at its optimum efficiency point while maintaining an overall static efficiency of 38%. Built with a cast aluminum rotor surface and a black plastic-coated steel guard grille, this 15.9 kg fan provides a dependable and weather-resistant cooling solution with IP54 protection and H2 environmental class for industrial condensers, dry coolers, and large-scale HVAC infrastructure at the end.
S4D560-BQ01-02 Fan Parameters
Model Number: S4D560-BQ01-02
Manufacturer: ebmpapst
Motor Model: M4D110-IA
Series: S Series
Type: AC Axial Fan
Impeller Size: 560 mm
Weight: 15.9 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC (3-phase)
Wiring: Delta (Δ) / Star (Y)
Frequency: 50 / 60 Hz
Power Consumption: 1100 W (50Hz Δ) / 760 W (50Hz Y) / 1380 W (60Hz Δ) / 840 W (60Hz Y)
Nominal Current: 2.32 A (50Hz Δ) / 1.3 A (50Hz Y) / 2.4 A (60Hz Δ) / 1.45 A (60Hz Y)
Speed: 1350 RPM (50Hz Δ) / 1110 RPM (50Hz Y) / 1540 RPM (60Hz Δ) / 1150 RPM (60Hz Y)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 7300 m³/h (@ optimum efficiency)
Actual Static Pressure: 170 Pa (Max. back pressure @ 50Hz Δ)
Overall Efficiency (ηes): 38.0 %
Motor Design: Three-phase AC external rotor motor
Motor Protection: Thermal switch auto reset (TOP) wired internally
Insulation Class: Class F
Electrical Hookup: Terminal box
Number of Blades: 5
Blade Pitch: -5°
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: “A” (Suction over struts)
Blade Material: Sheet aluminum insert, sprayed with PP plastic
Rotor Surface: Cast in aluminum
Terminal Box Material: PP plastic
Guard Grille Material: Steel, coated with black plastic (RAL 9005)
Installation Position: Shaft horizontal or rotor on bottom
Degree of Protection: IP54
Environmental Protection: H2
Operating Temperature: -40 – +65 °C (50 Hz) / -40 – +60 °C (60 Hz)
Storage Temperature: -40 – +80 °C
Standard Compliance: EN 60034-1; CE; UKCA
Approval Agency: VDE; EAC
Application
The ebmpapst S4D560-BQ01-02 AC fan is primarily utilized in industrial refrigeration condensers, dry coolers, large-scale HVAC units, and industrial ventilation systems for heat exchangers.
