S4D630-8317073848 ebmpapst 400V AC Axial Fan

Description

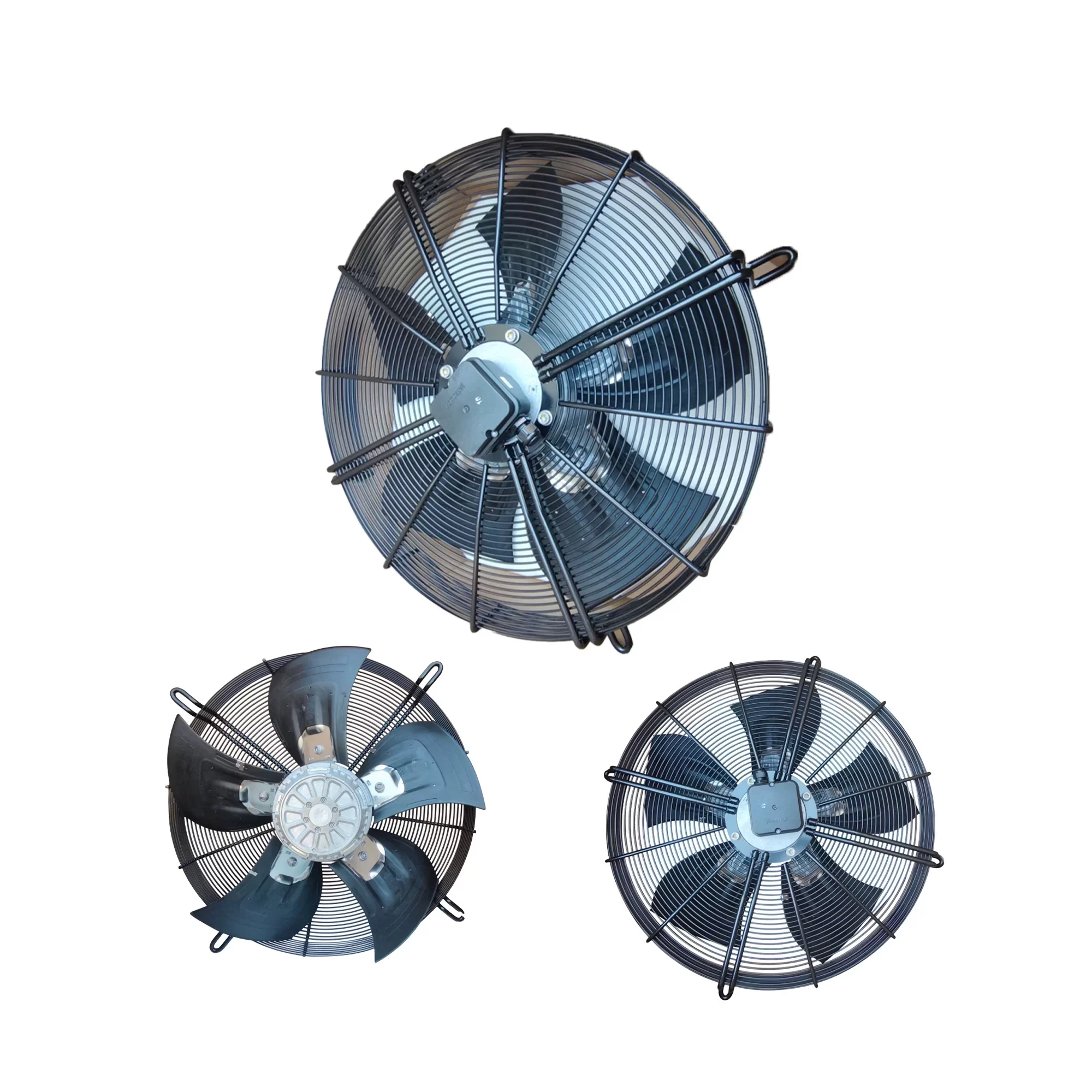

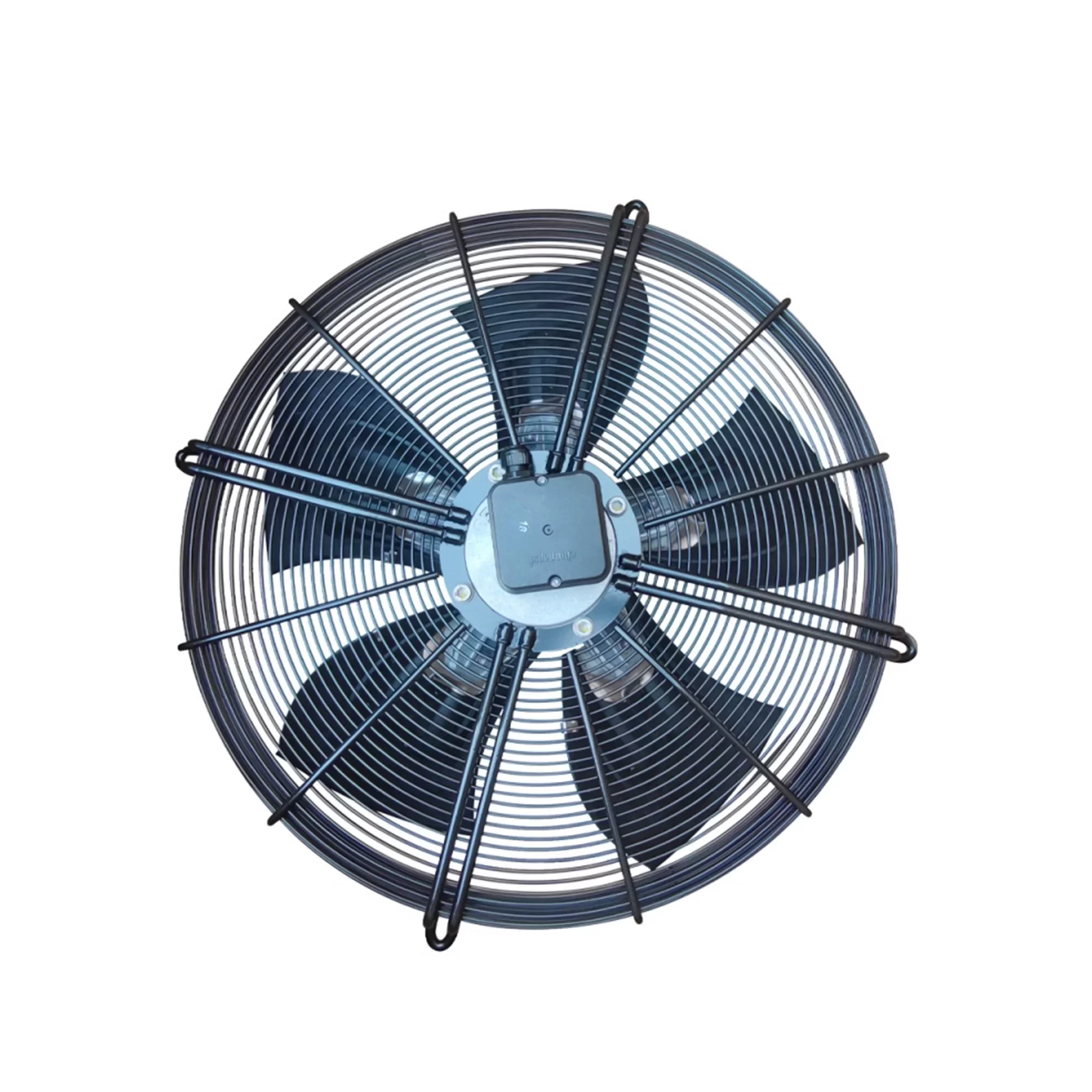

The ebmpapst S4D630-8317073848 is an AC Axial Fan with a three-phase motor with a 630mm diameter. Operating on 400V at 50Hz, the fan provides two distinct performance points. Point 1 has a higher performance level, drawing 4.78A of current, consuming 2630W of power, and achieving a speed of 1320 RPM. Point 2 provides a lower performance option, drawing 2.95A of current, consuming 1750W of power, and reaching a speed of 1050 RPM. It features a robust design with a cast aluminum and plastic housing and an aluminum sheet impeller. The fan has a durable ball bearing system, includes a thermal overload protector, and has an IP54 ingress protection level.

S4D630-8317073848 Fan Parameters
Model: S4D630-8317073848
Manufacturer: ebmpapst
Type: AC Axial Fan with Three-Phase Motor
Dimensions: 630 mm diameter
Rated Voltage: 400 VAC
Frequency: 50 Hz
Weight: 16.2 kg
Bearing Type: Ball Bearing
Protection Level: IP54
Termination: Terminal box
Housing Material: Cast aluminum, plastic
Impeller Material: Aluminum sheet, PP plastic
Operating Temperature: -40 to 60 °C
Motor Protection: Thermal overload protector internally connected

400V/50Hz, Point 1
Current Draw: 4.78 A
Power Input: 2630 W
Fan Speed: 1320 RPM

400V/50Hz, Point 2
Current Draw: 2.95 A
Power Input: 1750 W
Fan Speed: 1050 RPM

Application: Air conditioning, refrigeration, and industrial cooling.
