Description

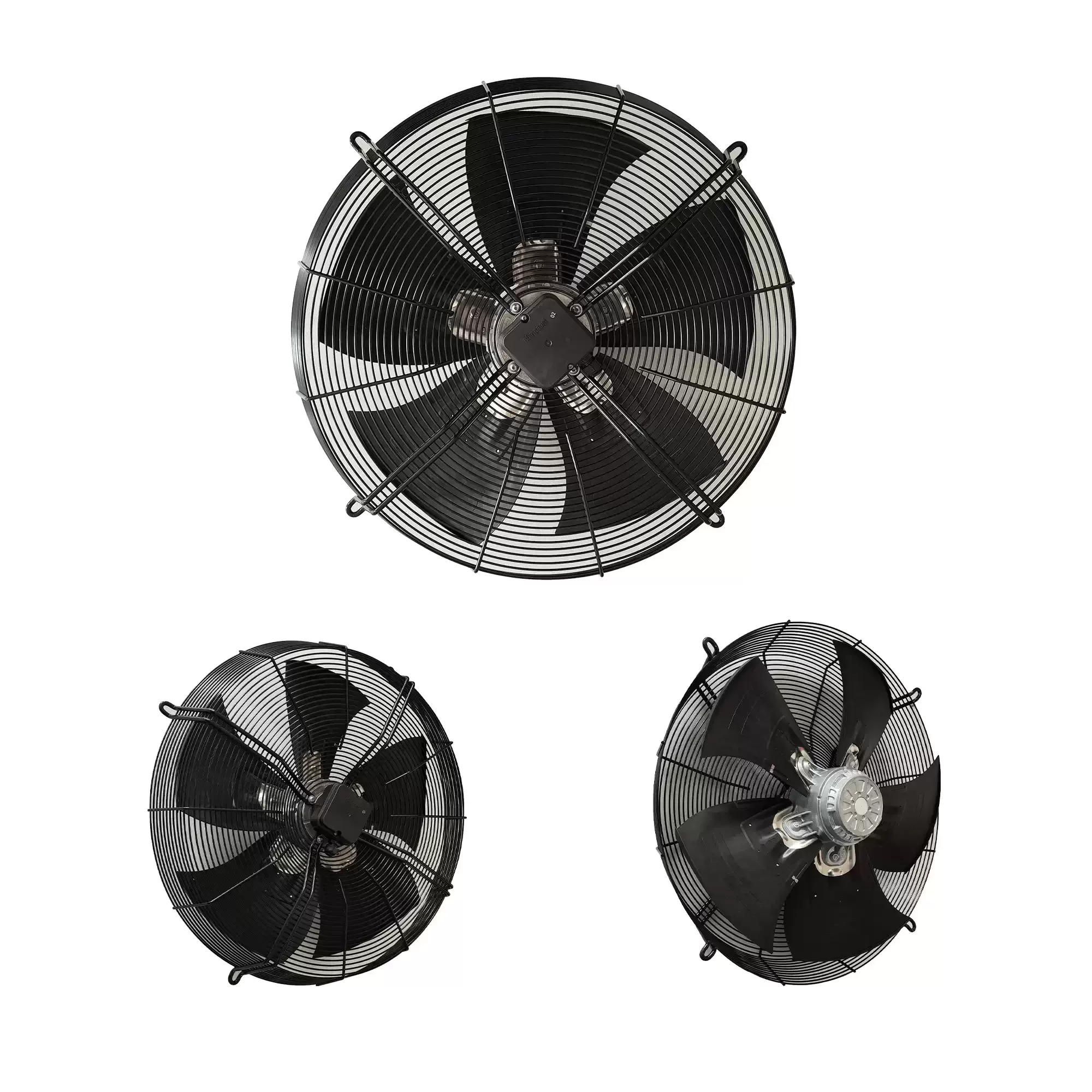

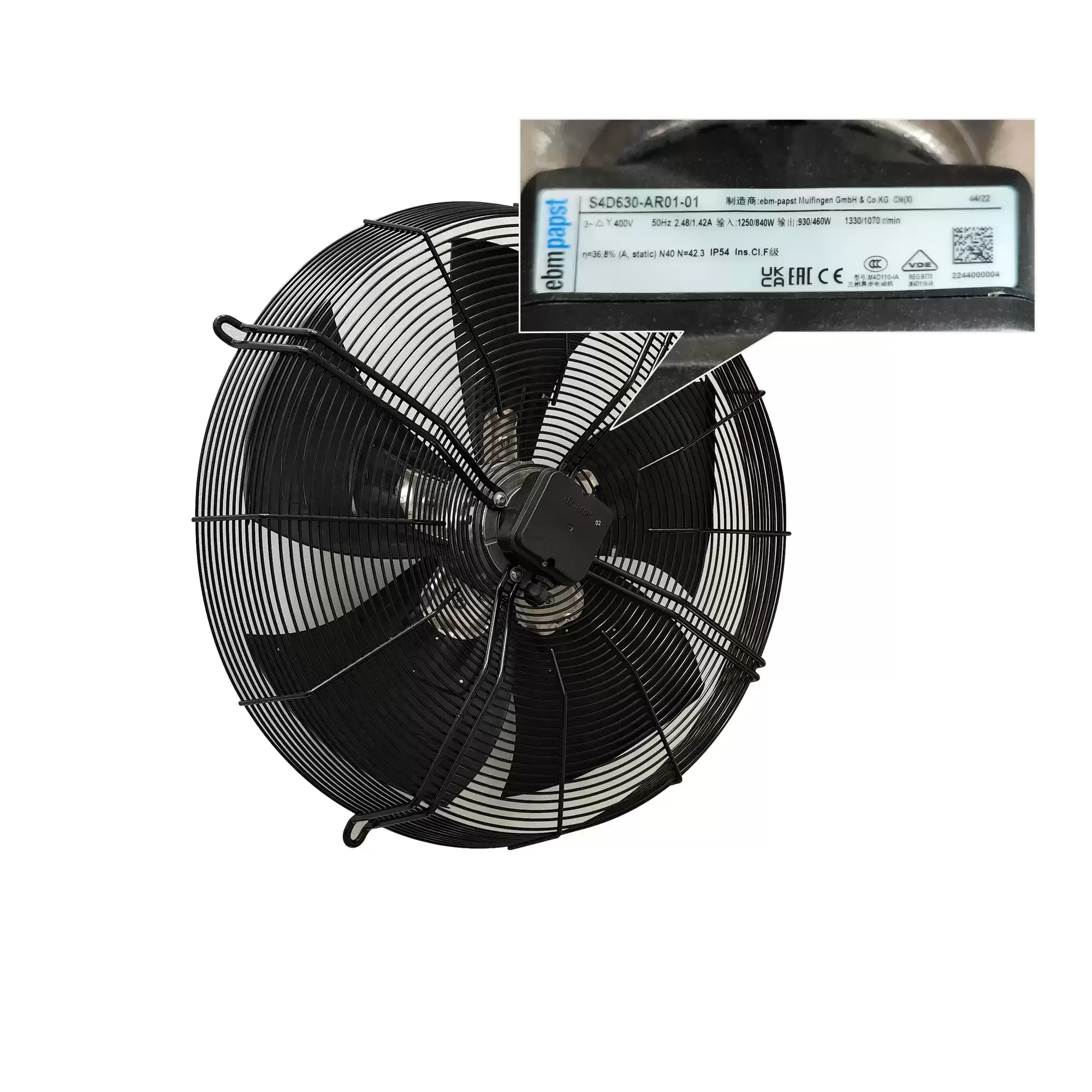

The ebmpapst S4D630-AR01-01 is a high-performance AC axial fan measuring 630mm in diameter. It operates on 3-phase 400 VAC at 50 Hz. Key operating points include: at 50 Hz, it draws 2.48 A with a power consumption of 1250 W at 1330 RPM. Another operating point at 50 Hz shows 1.42 A current, 840 W power, and 1070 RPM speed. The fan provides an airflow of up to 8830 m³/h with a maximum static pressure of 210 Pa. The noise level is 79 dB(A). It features ball bearings for reliable operation and connects via a terminal box. Its IP54 ingress protection rating and robust construction, featuring an aluminum rotor surface and PP plastic blades, ensure durability. Equipped with a thermal overload protector (TOP) and protection class I, this fan is ideal for industrial cooling, air conditioning, and condenser applications.
S4D630-AR01-01 Fan Parameters
Model: S4D630-AR01-01
Manufacturer: ebmpapst
Type: AC Axial Fan
Fan Diameter: 630 mm
Dimensions: 630x630x172 mm (overall frame size)
Rated Voltage: 3~ 400 VAC
Frequency: 50 Hz
Rated Current: 2.48 A / 1.42 A (at 50 Hz, different operating points)
Power Consumption: 1250 W / 840 W (at 50 Hz, different operating points)
Speed: 1330 RPM / 1070 RPM (at 50 Hz, different operating points)
Airflow: 8830 m³/h
Static Pressure: 210 Pa (at 1330 RPM)
Noise Level: 79 dB(A)
Bearing Type: Ball Bearing
Termination: Terminal box
Motor Protection: Thermal overload protector (TOP)
Protection Class: I (with customer connection of protective earth)
Ingress Protection: IP54
Insulation Class: F
Direction of Airflow: V (pushing air over blades)
Direction of Rotation: Counter-clockwise, viewed toward rotor
Housing Material: Steel, coated with black plastic (RAL 9005) (guard grille material) / Rotor surface: Cast in aluminum
Impeller Material: Aluminum sheet insert, sprayed with PP plastic
Operating Temperature: -40 to 55°C (Occasional start-up permitted down to -40°C)
Approval: VDE, CCC, EAC, CE
Weight: 16.2 kg
Application: Industrial cooling, air conditioning, condensers.
