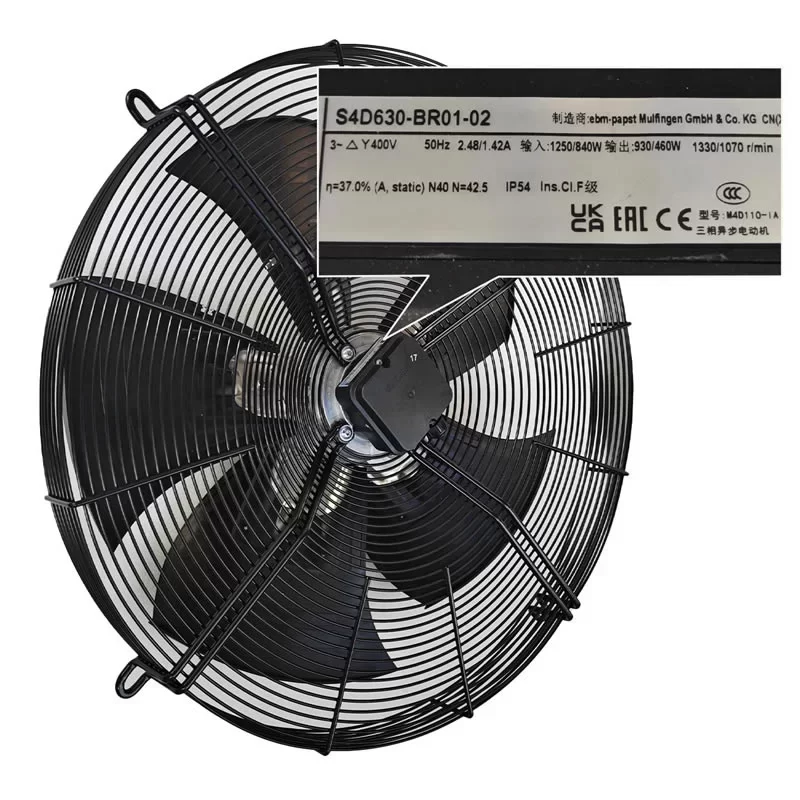

S4D630-BR01-02 ebmpapst 400V 630mm AC Axial Fan

Description

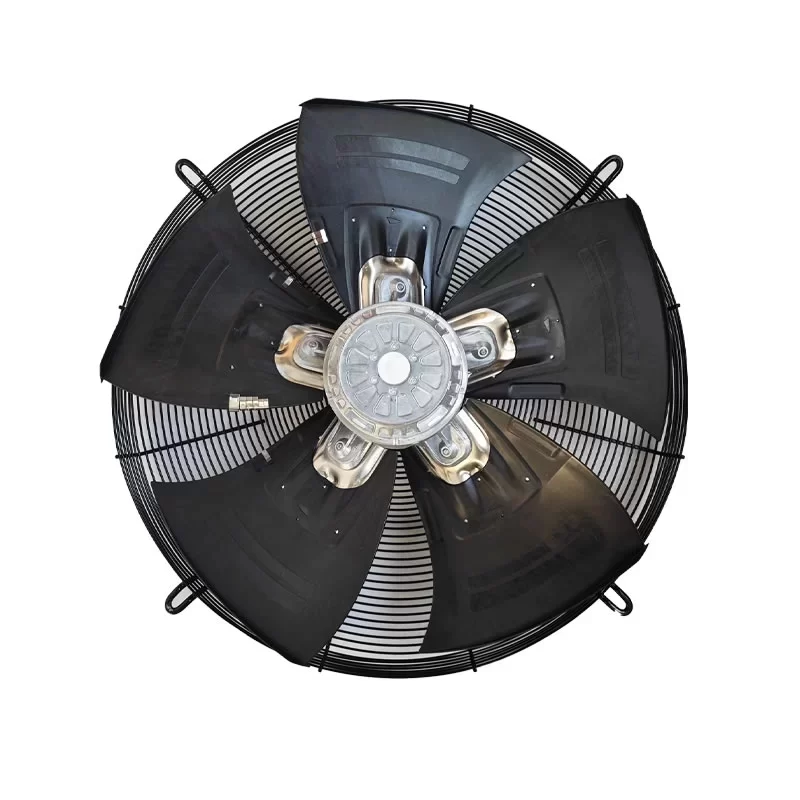

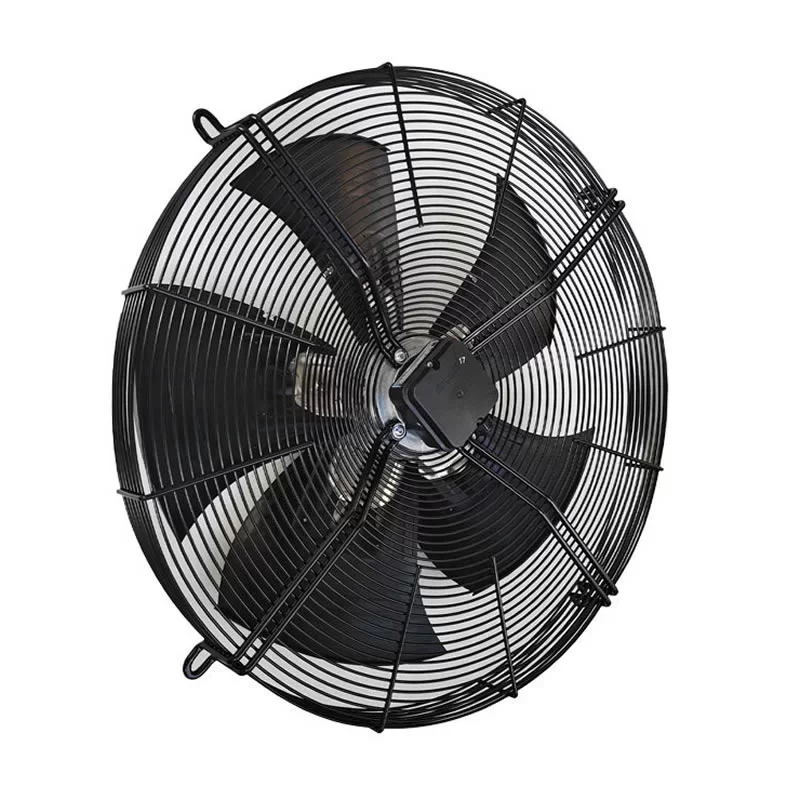

The ebmpapst S4D630-BR01-02 is a high-capacity industrial AC axial fan with a nominal voltage of 400 VAC and an impeller size of 630 mm, specifically engineered for demanding thermal management in large-scale refrigeration and industrial cooling systems. Driven by a robust three-phase M4D110-IA external rotor motor with a power consumption of 1250 W in Delta (Δ) configuration and 840 W in Star (Y) configuration at 50 Hz, this unit features a heavy-duty ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its aerodynamic design with 5 blades, constructed from a PP plastic-sprayed aluminum insert, delivers a powerful airflow reaching 8830 m³/h at its optimum efficiency point while maintaining an overall static efficiency of 37%. Built with a cast aluminum rotor surface and a black plastic-coated steel guard grille, this 16.6 kg fan provides a dependable and weather-resistant cooling solution with IP54 protection and H2 environmental class for industrial condensers, dry coolers, and large-scale HVAC infrastructure at the end.

S4D630-BR01-02 Fan Parameters
Model Number: S4D630-BR01-02
Manufacturer: ebmpapst
Motor Model: M4D110-IA
Series: S Series
Type: AC Axial Fan
Impeller Size: 630 mm
Weight: 16.6 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC (3-phase)
Wiring: Delta (Δ) / Star (Y)
Frequency: 50 Hz
Power Consumption: 1250 W (Δ) / 840 W (Y)
Nominal Current: 2.48 A (Δ) / 1.42 A (Y)
Speed: 1330 RPM (Δ) / 1070 RPM (Y)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 8830 m³/h (@ optimum efficiency)
Actual Static Pressure: 150 Pa (Max. back pressure @ Δ)
Overall Efficiency (ηes): 37.0 %
Motor Design: Three-phase AC external rotor motor
Motor Protection: Thermal overload protector (TOP) with basic insulation
Insulation Class: Class F
Electrical Hookup: Terminal box
Number of Blades: 5
Blade Pitch: -10°
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: “A” (Suction over struts)
Blade Material: Sheet aluminum insert, sprayed with PP plastic
Rotor Surface: Cast in aluminum
Terminal Box Material: PP plastic
Guard Grille Material: Steel, coated with black plastic (RAL 9005)
Installation Position: Shaft horizontal or rotor on bottom
Degree of Protection: IP54
Environmental Protection: H2
Operating Temperature: -40 – +55 °C
Storage Temperature: -40 – +80 °C
Standard Compliance: EN 60034-1; CE; UKCA
Approval Agency: VDE; EAC

Application
The ebmpapst S4D630-BR01-02 AC fan is primarily utilized in industrial refrigeration condensers, dry coolers, large-scale HVAC units, and industrial ventilation systems for heat exchangers.
