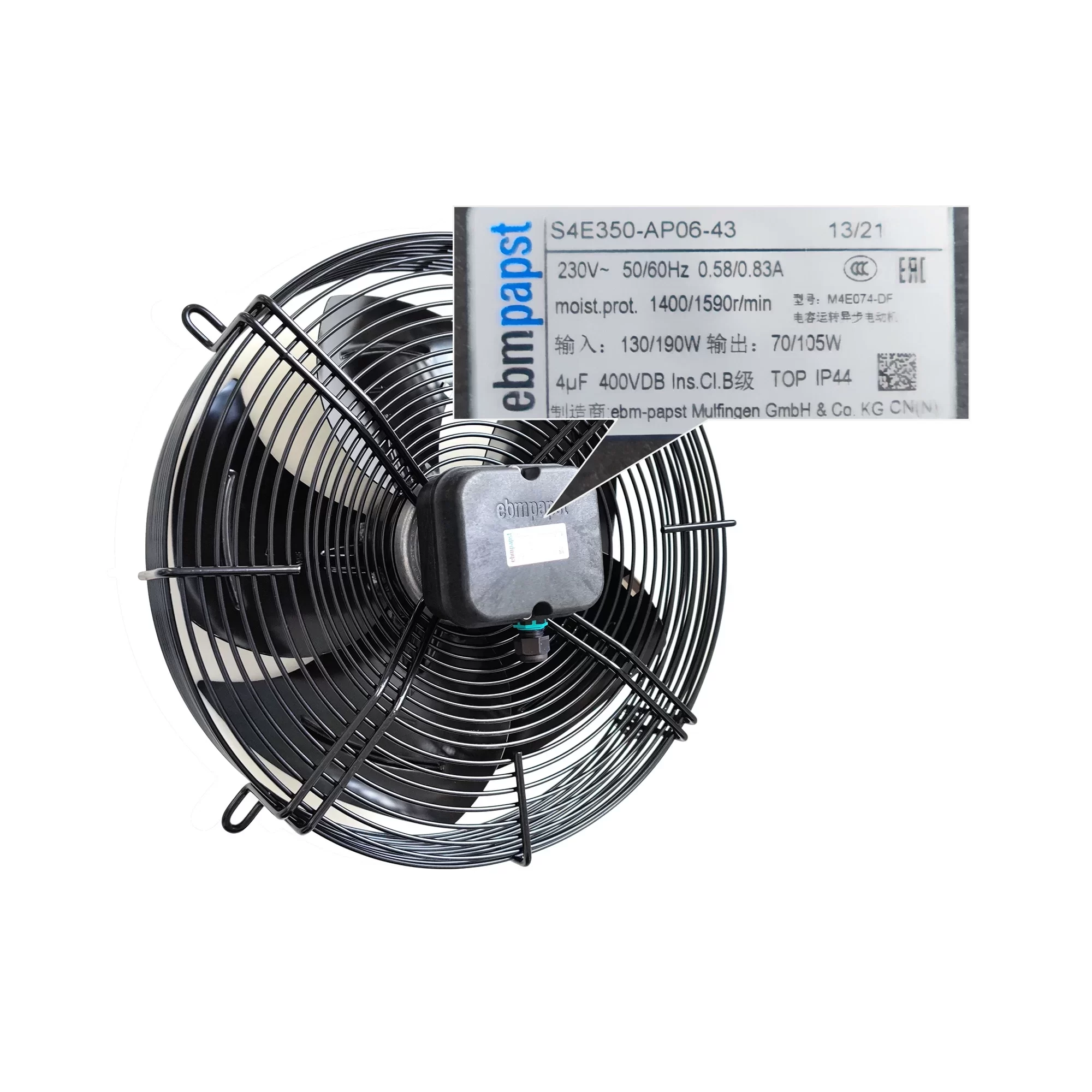

S4E350-AP06-43 ebmpapst 230V AC Axial Fan

Description

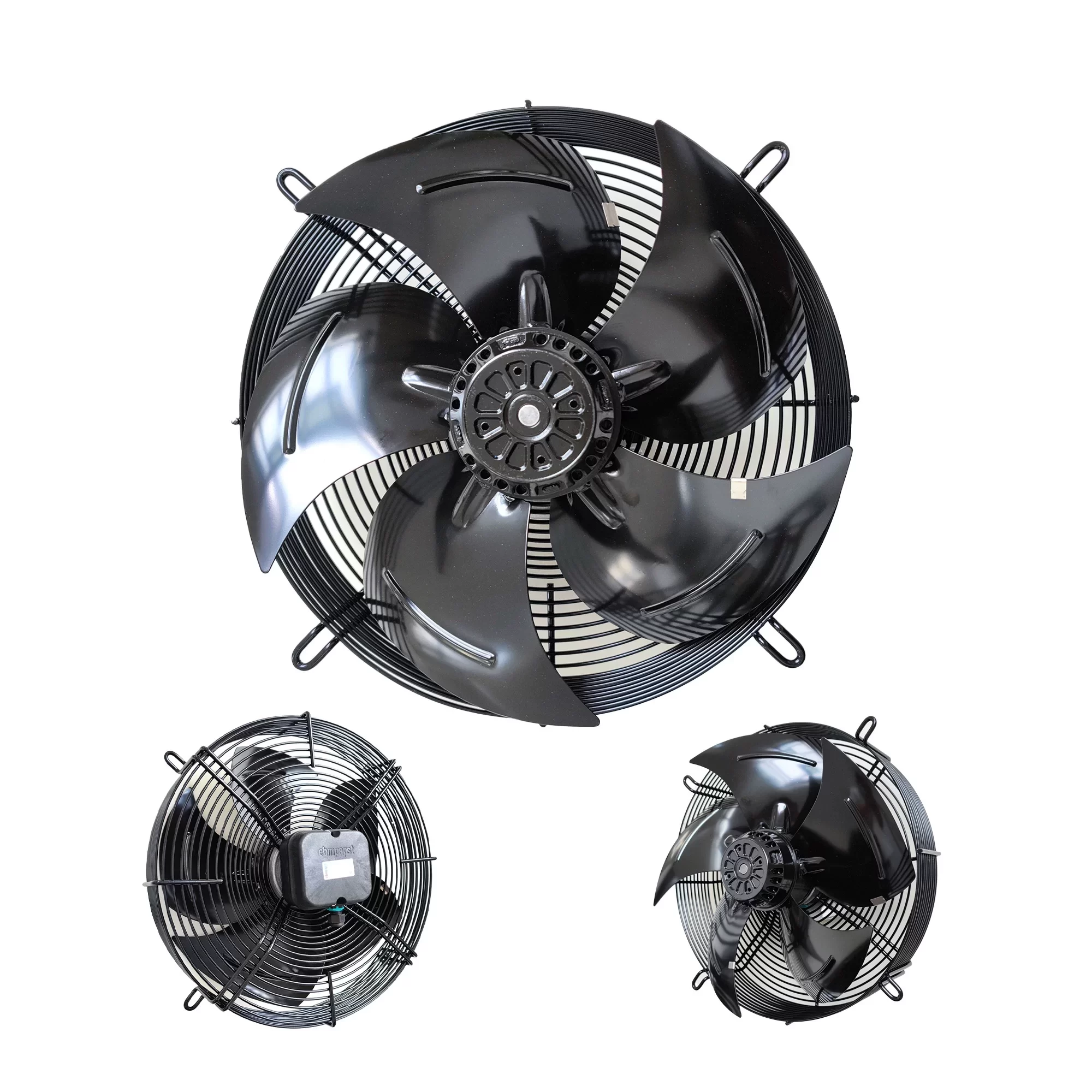

The ebmpapst S4E350-AP06-43 is a 1-phase AC Axial Fan measuring 350mm. It operates on 230V AC at both 50Hz and 60Hz. At 50Hz, it delivers 3110m³/h airflow with a speed of 1400 RPM, power input of 130W, and max back pressure of 90Pa. At 60Hz, performance increases to 3540m³/h airflow, 1590 RPM speed, 190W power input, and 60Pa max back pressure. The fan features 5 sheet steel blades coated in black, a steel guard grille, and ball bearings with anti-freezing grease. It operates in ambient temperatures up to 35°C (operation) and +70°C (storage), with a minimum of -40°C (storage). It has an IP44 type of protection (depending on position), Insulation Class “B”, and integrated thermal overload protection. It conforms to CE and EN 60335-1 standards and has CCC and GOST approvals.

S4E350-AP06-43 Fan Parameters
Model: S4E350-AP06-43
Motor: M4E074-DF
Manufacturer: ebmpapst
Type: AC Axial Fan
Phase: 1~
Nominal Voltage: 230 V
Frequency: 50/60 Hz
Type of Data Definition: rfa
Valid for Approval / Standard: CE

Performance at 50 Hz:
Speed: 1400 RPM
Power Input: 130 W
Current Draw: 0.58 A
Motor Capacitor: 4 µF
Capacitor Voltage: 400 VDB
Max. Back Pressure: 90 Pa
Air Flow: 3110 m³/h
Back Pressure (at 0 air flow): 0 Pa
Sound Pressure Level: 64 dB(A)

Performance at 60 Hz:
Speed: 1590 RPM
Power Input: 190 W
Current Draw: 0.83 A
Motor Capacitor: 4 µF
Capacitor Voltage: 400 VDB
Max. Back Pressure: 60 Pa
Air Flow: 3540 m³/h
Back Pressure (at 0 air flow): 0 Pa
Sound Pressure Level: 67 dB(A)

Leakage Current: < 0.75 mA
Size: 350 mm
Operation Mode: S1
Direction of Rotation: Counter-clockwise, seen on rotor
Mounting Position: Shaft horizontal or rotor on bottom; rotor on top on request
Electrical Leads: Via terminal box, integrated capacitor connected via Y-cable
Direction of Air Flow: “V”
Insulation Class: “B”
Cable Exit: Variable
Condensate Discharge Holes: None
Bearing Motor: Ball bearing with anti-freezing grease
Mass: 5.2 kg
Motor Protection: Thermal overload protector (TOP) wired internally
Material of Terminal Box: ABS plastic, black
Material of Blades: Sheet steel, coated in black
Material of Guard Grille: Steel, phosphated and coated in black plastic
Product Conforming to Standard: CE; EN 60335-1
Surface of Rotor: Coated in black
Number of Blades: 5
Type of Protection: IP 44 – depending on position
Protection Class: I
Max. Permissible Ambient Motor Temp. (transp./storage): +70 °C
Min. Permissible Ambient Motor Temp. (transp./storage): -40 °C
Approval: CCC; GOST
Max. Ambient Temperature (Operating): 35 °C
Weight: 5.2 kg
Application: Commonly used in refrigeration, ventilation systems, cooling applications, and heat exchangers.
