Description

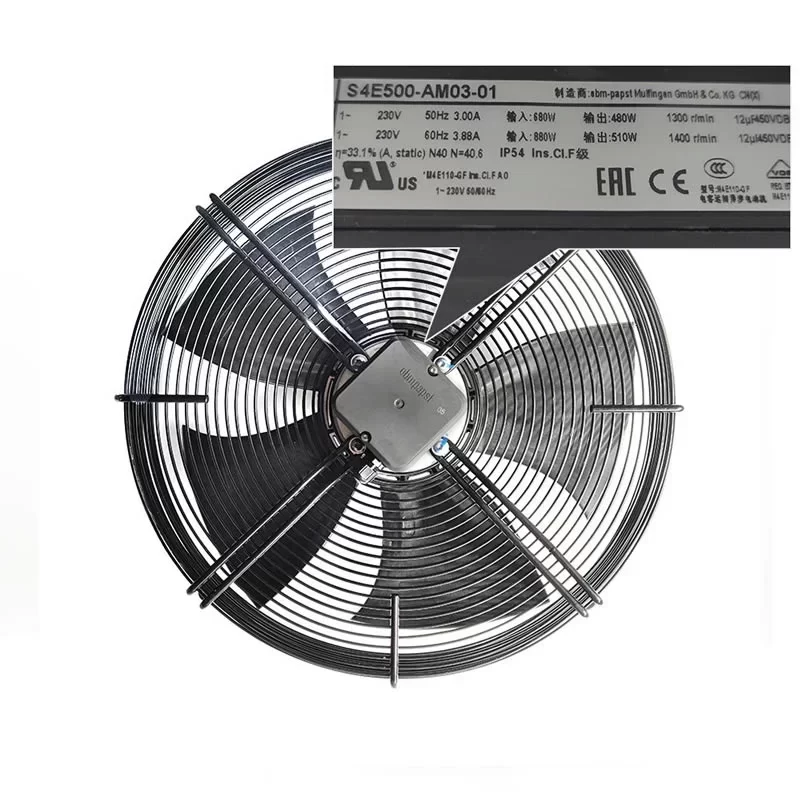

The ebmpapst S4E500-AM03-01 is a high-performance 230VAC single-phase AC Axial Fan unit from the HyBlade® S-series, featuring 5 sickle-shaped blades with an Impeller Size of 500 mm and overall Dimensions of 565 x 210 mm. Specifically engineered for mission-critical industrial refrigeration and HVAC condensers, this 500 mm unit is driven by the M4E110-GF external rotor motor with maintenance-free ball bearings and a 12.0 µF / 450 VDB integrated capacitor. Operating on a 230 VAC supply, it delivers a Max. Power Consumption of 680 W (50 Hz) / 880 W (60 Hz) and a Max. Current Draw of 3.0 A / 3.88 A at a rated speed of 1300 / 1400 RPM under max. load (ml) conditions. Featuring a rugged HyBlade® construction—comprising press-fitted sheet steel blanks sprayed with PP plastic—and a cast aluminium rotor surface, it ensures superior thermal management with IP54 protection, F4-1 humidity class, and an extended service life in continuous S1 environments at the end.
S4E500-AM03-01 Fan Parameters
Model Number: S4E500-AM03-01
Motor Model: M4E110-GF
Manufacturer: ebmpapst
Type: AC Axial Fan – HyBlade® Sickle-shaped blades (S series)
Impeller Size: 500 mm
Dimensions: 565 x 565 x 210 mm (with guard grille for short nozzle)
Weight: 12.5 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: ml (Max. load)
Current Draw: 3.0 / 3.88 A
Power Input: 680 / 880 W
Rated Speed: 1300 / 1400 RPM
Max. Air Flow: 4119.8 / 4414.1 CFM (7000.0 / 7500.0 m³/h / 116.67 / 125.00 m³/min)
Max. Static Pressure: 15.30 / 10.20 mmH₂O (150.0 / 100.0 Pa / 0.60 / 0.40 inAq)
Capacitor: 12.0 µF / 450 VDB
Number of Blades: 5
Impeller Material: Press-fitted sheet steel, sprayed with PP plastic (HyBlade®)
Housing Material: Steel, phosphated and coated in black plastic (Guard grille)
Terminal Box Material: PC/ABS plastic Bayblend FR110
Rotor Surface: Cast in aluminium
Direction of Airflow: “V”
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Insulation Class: “F”
Degree of Protection: IP54
Humidity Class: F4-1
Touch Current: <= 3.5 mA
Motor Protection: Thermal overload protector (TOP) brought out
Condensation Drainage Holes: Rotor-side
Installation Position: Shaft horizontal or rotor on bottom
Mode: S1
Protection Class: I
Max. Ambient Temperature: 65 / 40 °C
Min. Ambient Temperature: -40 °C
Standard Compliance: EN 61800-5-1; CE
Approval: CSA C22.2 No. 100; UL 1004-1; VDE; GOST
Application
The ebmpapst S4E500-AM03-01 fan is the primary cooling component for industrial air-cooled condensers, dry coolers, and large-scale HVAC systems requiring high-volume 230V single-phase axial airflow with a 500mm HyBlade configuration and integrated terminal box.
