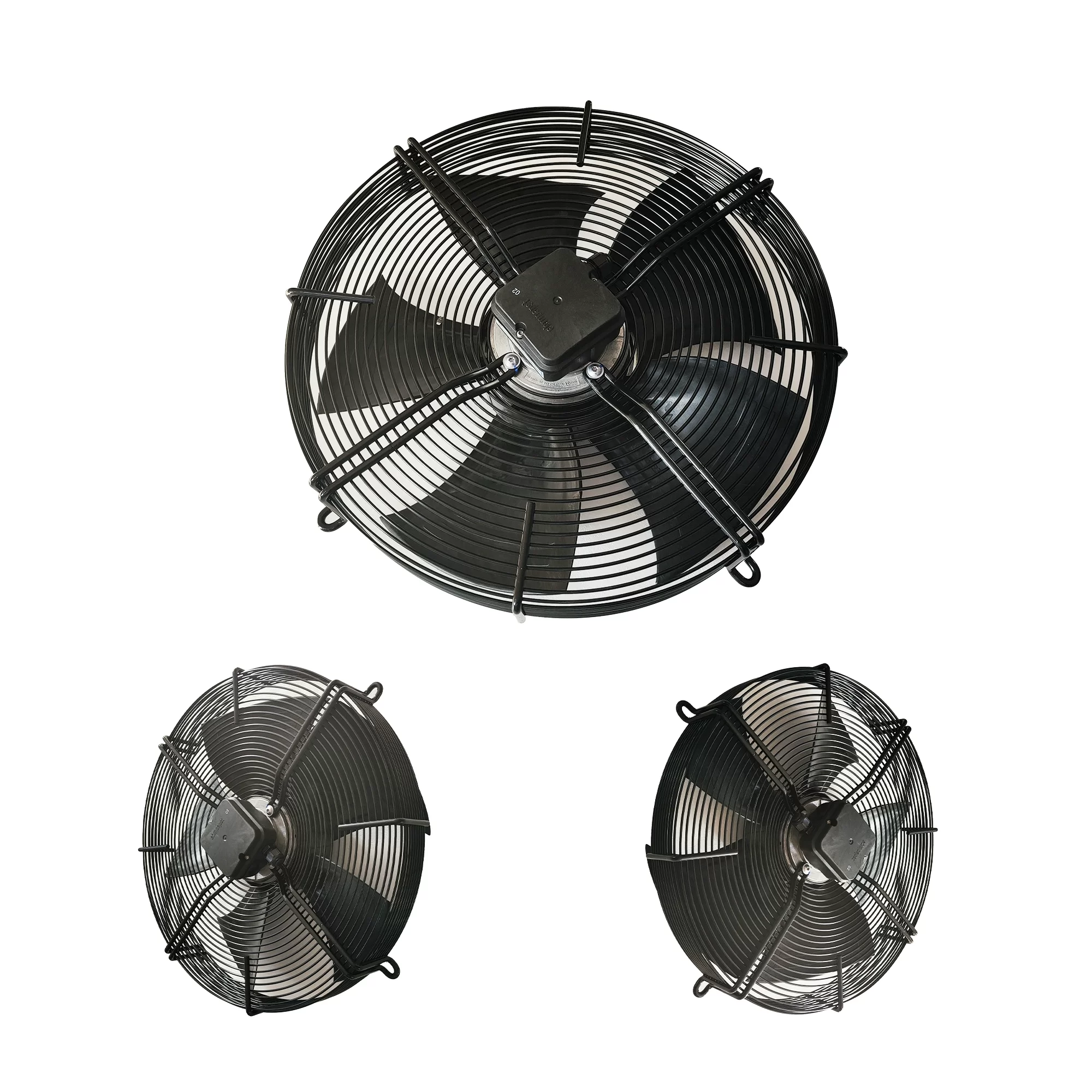

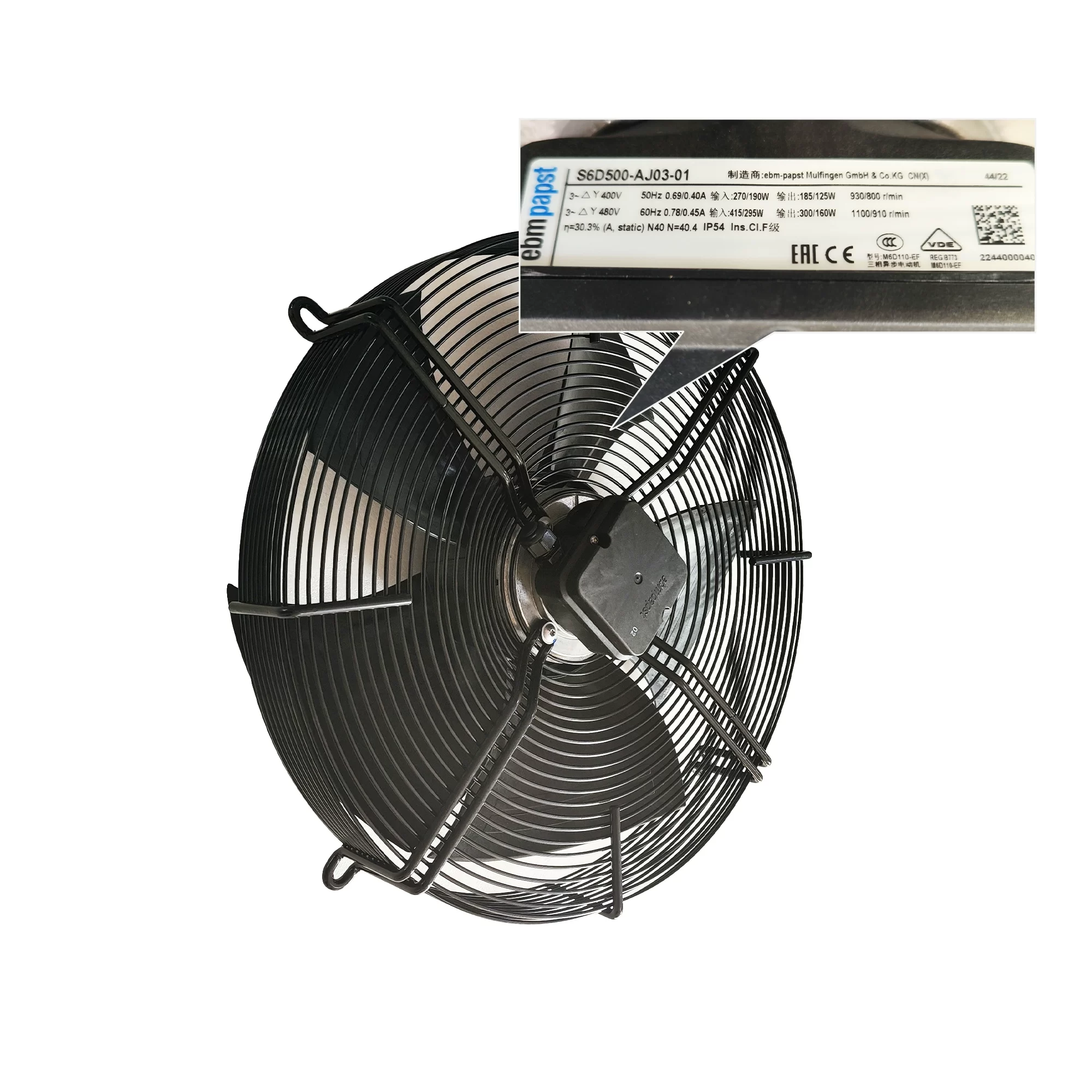

S6D500-AJ03-01 ebmpapst 400/480V AC axial fan

Description

The ebmpapst S6D500-AJ03-01 is an AC Axial Fan with a 500mm blade diameter, operating on 400/480 VAC 3-phase at 50/60 Hz. It offers two distinct operating points: at 400V/50Hz, the fan consumes 270 W of input power and draws 0.69 A of current at its higher speed setting, reaching 930 RPM; at 480V/60Hz, it consumes 415 W and draws 0.78 A, reaching 1100 RPM at its higher speed setting. It features a robust ball bearing system and boasts an IP54 ingress protection rating. Constructed with a steel guard grille and sickled blades made of press-fitted, PP plastic-coated sheet steel, this fan is widely used in various industrial and commercial ventilation applications, including condensers, evaporators, heat pumps, and large-scale cooling and air conditioning systems.

S6D500-AJ03-01 Fan Parameters
Model: S6D500-AJ03-01
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 500 mm blade diameter
Rated Voltage: 400/480 VAC
Frequency: 50/60 Hz

At 400V/50Hz:
Rated Current: 0.69 A (Higher Speed) / 0.40 A (Lower Speed)
Input Power: 270 W (Higher Speed) / 190 W (Lower Speed)
Output Power: 185 W (Higher Speed) / 125 W (Lower Speed)
Speed: 930 RPM (Higher Speed) / 800 RPM (Lower Speed)

At 480V/60Hz:
Rated Current: 0.78 A (Higher Speed) / 0.45 A (Lower Speed)
Input Power: 415 W (Higher Speed) / 295 W (Lower Speed)
Output Power: 300 W (Higher Speed) / 160 W (Lower Speed)
Speed: 1100 RPM (Higher Speed) / 910 RPM (Lower Speed)

Bearing Type: Ball Bearing
Termination: Via terminal box
Protection Level: IP54
Insulation Class: B
Operating Temperature: -40 to 65°C
Storage Temperature: -40 to 80°C
Weight: 10.7 kg
Motor: M6D110-EF
Number of Blades: 5
Direction of Airflow: V
Direction of Rotation: Counter-clockwise, viewed toward rotor
Rotor Surface: Coated in black
Terminal Box Material: Die-cast aluminum
Blades Material: Press-fitted sheet steel blank, sprayed with PP plastic
Guard Grille Material: Steel, phosphated and coated in black plastic
Motor Protection: Thermal overload protector TOP brought out
Application: Air conditioning units, heat pumps, chillers, condensers, evaporators, industrial cooling.
