Description
The ebmpapst S6E630-AN01-01/F01 is a high-performance AC axial fan measuring 630mm in diameter. Operating on a 230 VAC power supply at both 50 Hz and 60 Hz frequencies, this fan is a HyBlade® series model featuring sickled blades and a guard grille suitable for short nozzle applications. It delivers robust performance with a power input of 600W and a current draw of 2.62A. Achieving a speed of 860 RPM, it provides a substantial airflow of approximately 6725 to 7130 m³/h (or 11020 FAD). Equipped with durable ball bearings for reliable and extended operation, this fan is designed for various industrial applications. Key features include IP54 protection, “F” insulation class, a durable steel guard grille with a black plastic coating, an integrated capacitor, and a thermal overload protector (TOP). It’s suitable for ambient temperatures from -40°C to +55°C.
S6E630-AN01-01/F01 fan Parameters

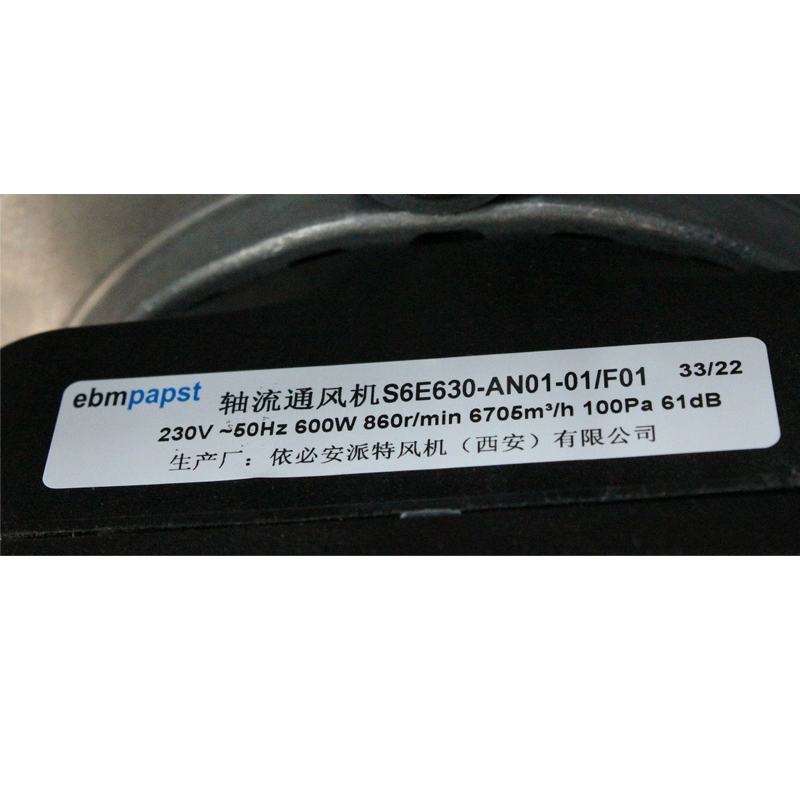

Model: S6E630-AN01-01/F01
Manufacturer: ebmpapst
Type: AC Axial Fan (HyBlade® sickled blades, with guard grille)
Dimensions: 630 mm (Diameter)
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 2.62 A
Power Consumption: 600 W
Speed: 860 RPM
Airflow: 6725 – 7130 m³/h (approx. 11020 FAD)
Static Pressure: Up to 100 Pa (0.4 inch H2O)
Noise Level: > 70 dB(A) (Exact LpA @ 1m varies, often around 70-73 dB(A))
Bearing Type: Ball Bearing
Weight: 15 kg
Frame Material: Coated steel guard grille (RAL9005), PP plastic terminal box
Impeller Material: Press-fitted sheet steel blank, sprayed with PP plastic
Number of Blades: 5
Direction of Airflow: “V”
Direction of Rotation: Counter-clockwise (seen on rotor)
Protection Class: IP54
Insulation Class: “F”
Operating Temperature: -40°C to +55°C
Max. Permitted Ambient Motor Temp (Transport/Storage): +80°C
Min. Permitted Ambient Motor Temp (Transport/Storage): -40°C

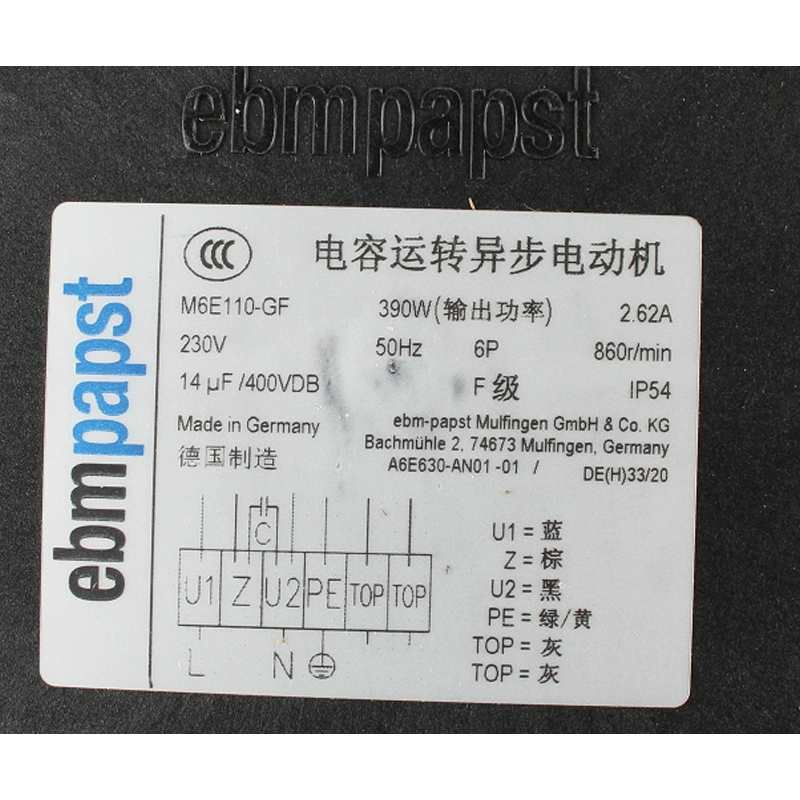

Motor: M6E110-GF
Motor Capacitor: 14 µF (400VDB)
Features: Electronically commutated, Thermal overload protector (TOP) brought out, Integrated capacitor, Condensate discharge holes, Compliant with EN 61800-5-1; CE
Application: Condensing units, chillers, industrial cooling, refrigeration, air handling units, ventilation systems, various commercial and industrial applications.
