Description

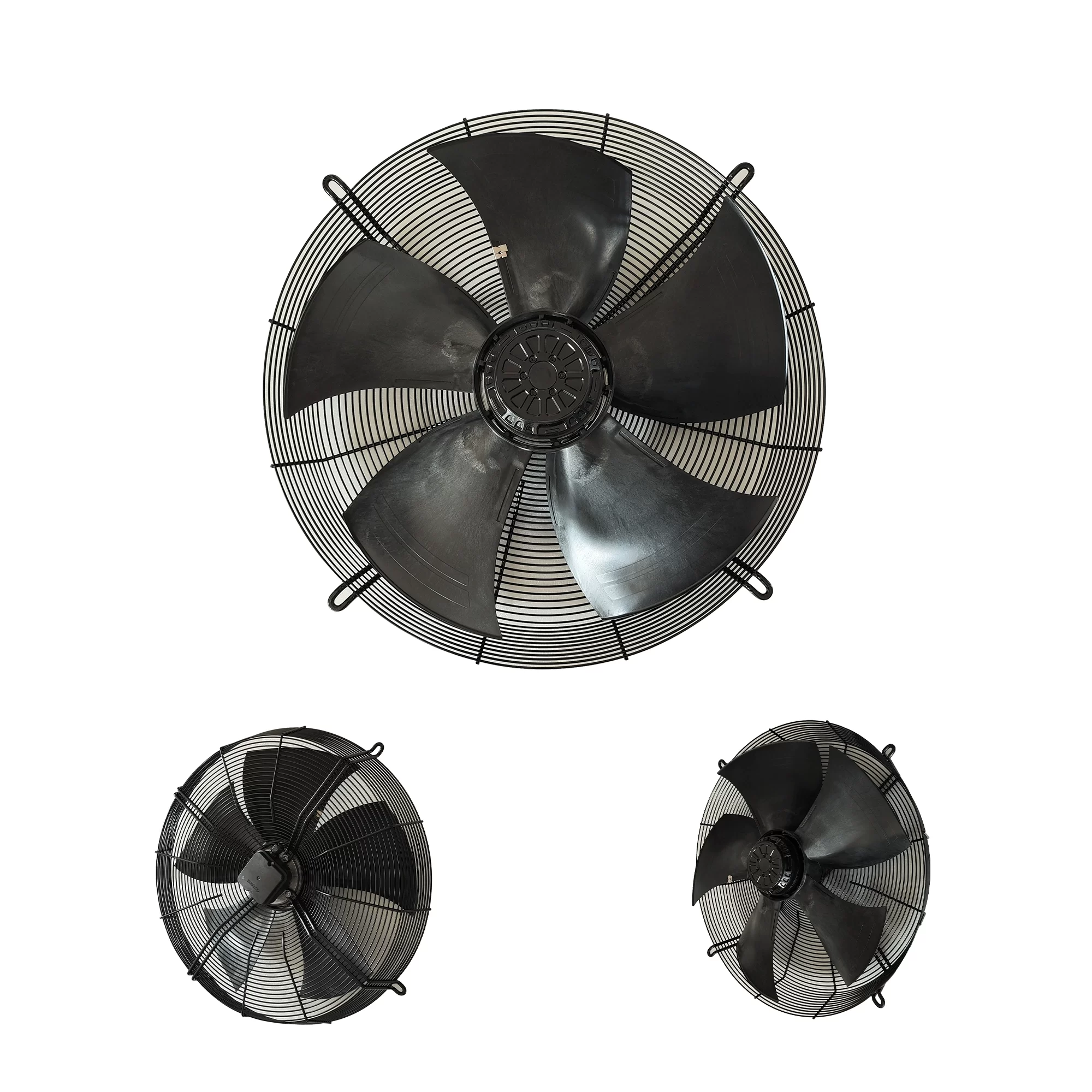

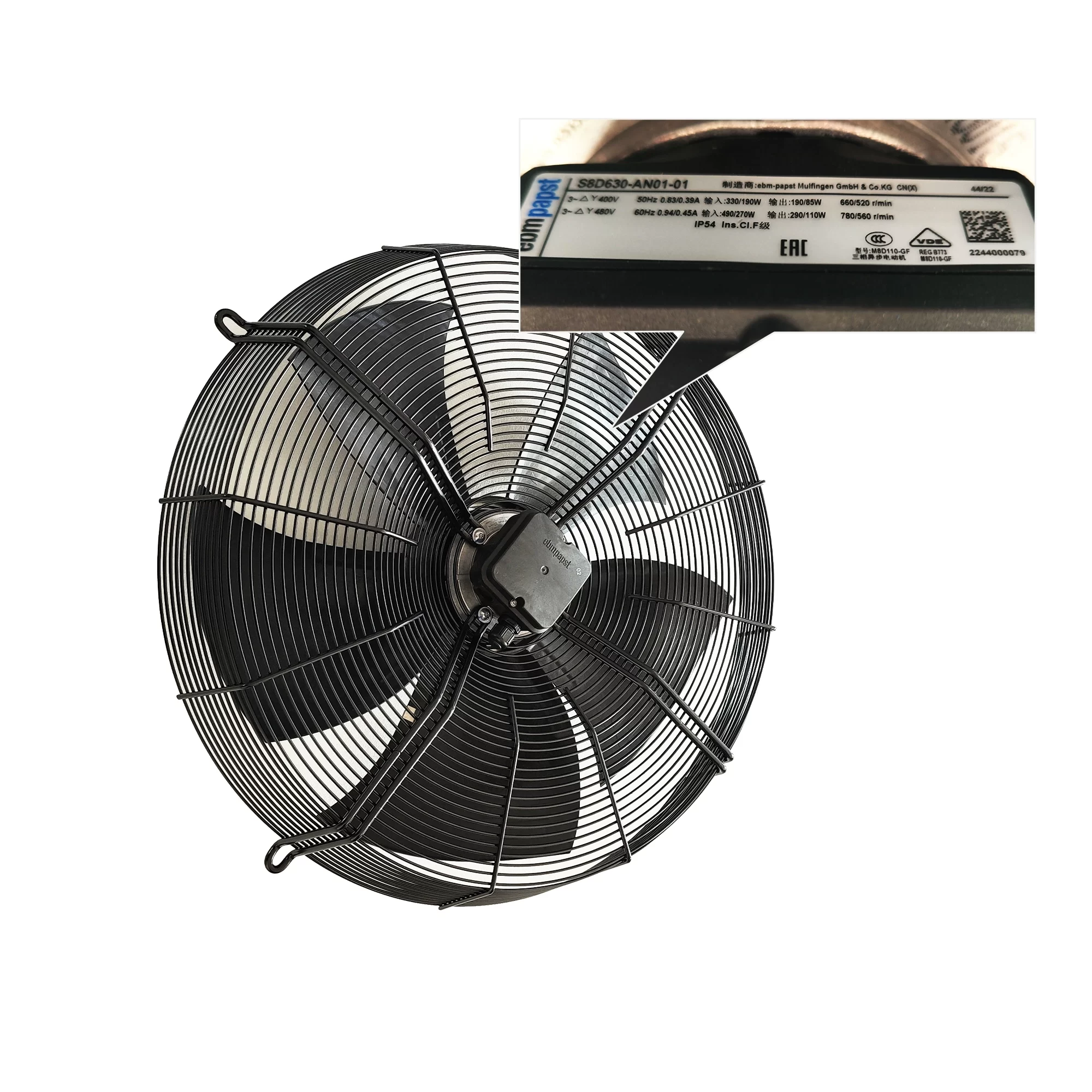

The ebmpapst S8D630-AN01-01 is an AC Axial Fan with a 630mm blade diameter. Operating on 400/480 VAC 3-phase at 50/60 Hz, this fan has two typical operating points. At 400V/50Hz, it consumes 330 W and draws 0.83 A, achieving 660 RPM with a powerful airflow of 8360 m³/h. Its noise level is approximately 63 dB(A). It features a robust ball bearing system for durability and boasts an IP54 ingress protection rating. The fan is constructed with a steel guard grille and sickled blades made of press-fitted sheet steel coated with PP plastic, mounted in a short nozzle. It is designed for various industrial and commercial ventilation applications, including condensers, evaporators, heat pumps, and other large-scale cooling and air conditioning systems.
S8D630-AN01-01 Fan Parameters
Model: S8D630-AN01-01
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 630 mm blade diameter
Rated Voltage: 400/480 VAC
Frequency: 50/60 Hz
Rated Current: 0.83 A / 0.39 A at 400V, 0.94 A / 0.45 A at 480V
Power Consumption: 330 W / 190 W at 400V, 490 W / 270 W at 480V
Speed: 660 RPM / 520 RPM at 400V, 780 RPM / 560 RPM at 480V
Airflow: 8360 m³/h
Static Pressure: 60 Pa / 36 Pa at 400V
Noise Level: 63 dB(A)
Bearing Type: Ball Bearing
Termination: Via terminal box
Protection Level: IP54
Insulation Class: F
Operating Temperature: -40 to 65°C
Storage Temperature: -40 to 80°C
Weight: 14.1 kg
Motor: M8D110-GF
Number of Blades: 5
Direction of Rotation: Clockwise, viewed toward rotor
Rotor Surface: Coated in black
Terminal Box Material: PP plastic
Blades Material: Press-fitted sheet steel blank, sprayed with PP plastic
Guard Grille Material: Steel, coated in black plastic
Motor Protection: Thermal overload protector TOP brought out
Application: Air conditioning units, heat pumps, chillers, condensers, evaporators, industrial cooling.
