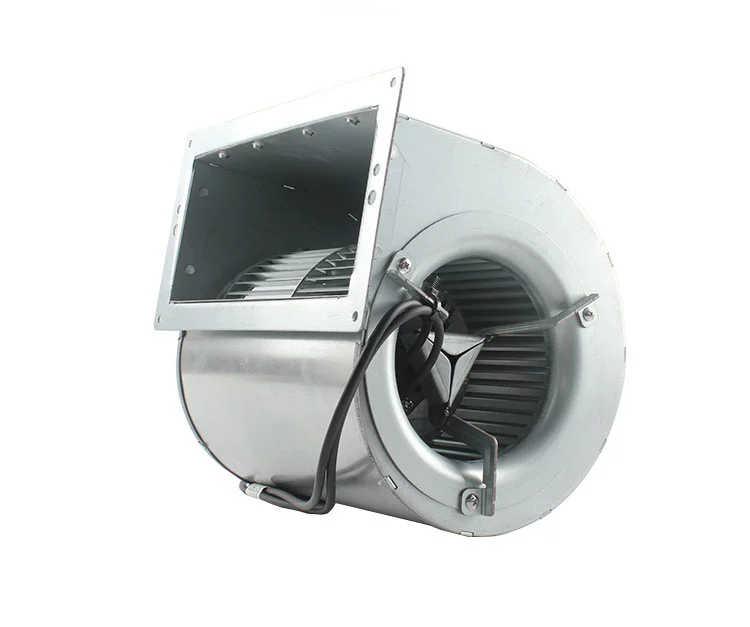

Sanju SG146HE2 220-240V 2.0A ec centrifugal blower

Description

The SANJUN SG146HE2 is a high-performance AC Axial Fan measuring 232 x 206 mm. It operates on a dual-frequency nominal voltage of 220V-240V AC at 50/60 Hz. This powerful fan has a maximum power input of 190 W, with a current draw of 2.0 A, and delivers a robust airflow of 1200 m³/h (706.3 CFM) at a speed of 1900 RPM. With a relatively short service life of 5000 h, it generates a noise level of 73 dBA and is constructed with a substantial mass of 4.4 kg. The fan is designed for operation in a wide temperature range of -25 °C to 60 °C, making it suitable for heavy-duty industrial and harsh environmental ventilation tasks.

SG146HE2 Fan Parameters

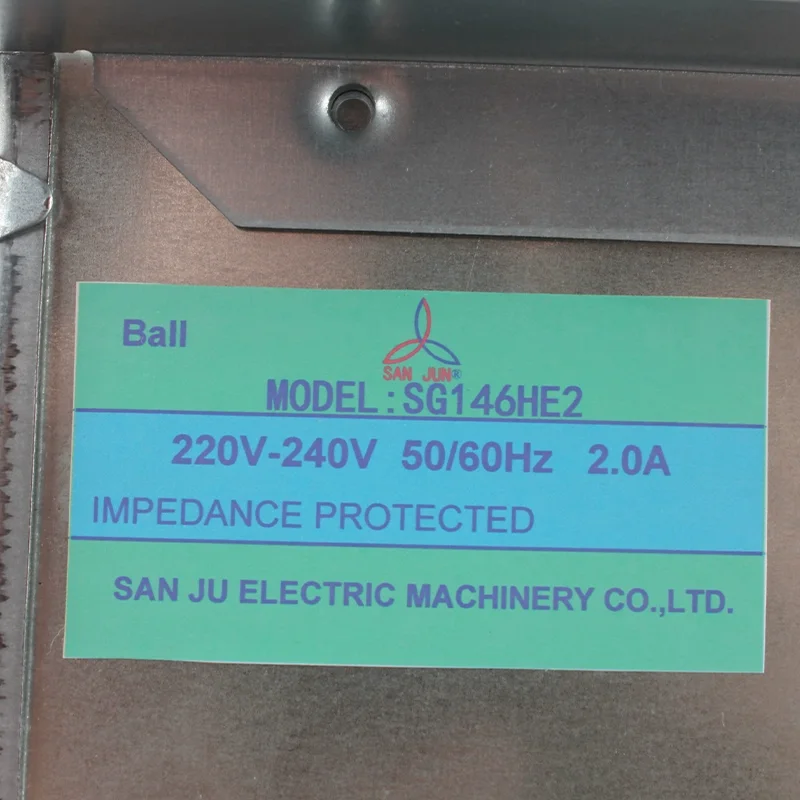

Model: SG146HE2
Manufacturer: SANJUN
Type: EC ec centrifugal blower
Dimensions: 232 x 206 mm
Nominal Voltage: 220V-240V AC
Frequency: 50/60 Hz
Power Input: 190 W
Current Draw: 2.0 A
Speed: 1900 RPM
Airflow: 1200 m³/h (706.3 CFM)
Noise Level: 73 dBA
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 60 °C
Weight: 4.4 kg
Service Life: 5000 h

Application
The SG146HE2 is a heavy-duty AC axial fan engineered for industrial and equipment ventilation where high airflow is required against medium resistance. Its robust construction and wide operating temperature range make it highly suitable for cooling large power distribution cabinets, manufacturing machinery, HVAC systems, and other fixed installations in industrial and commercial environments.
