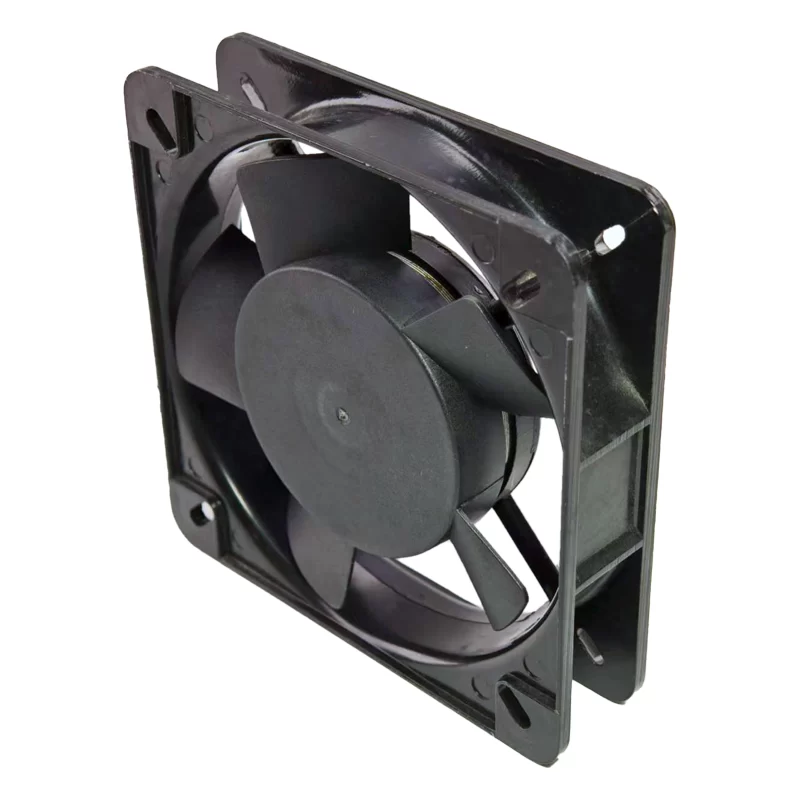

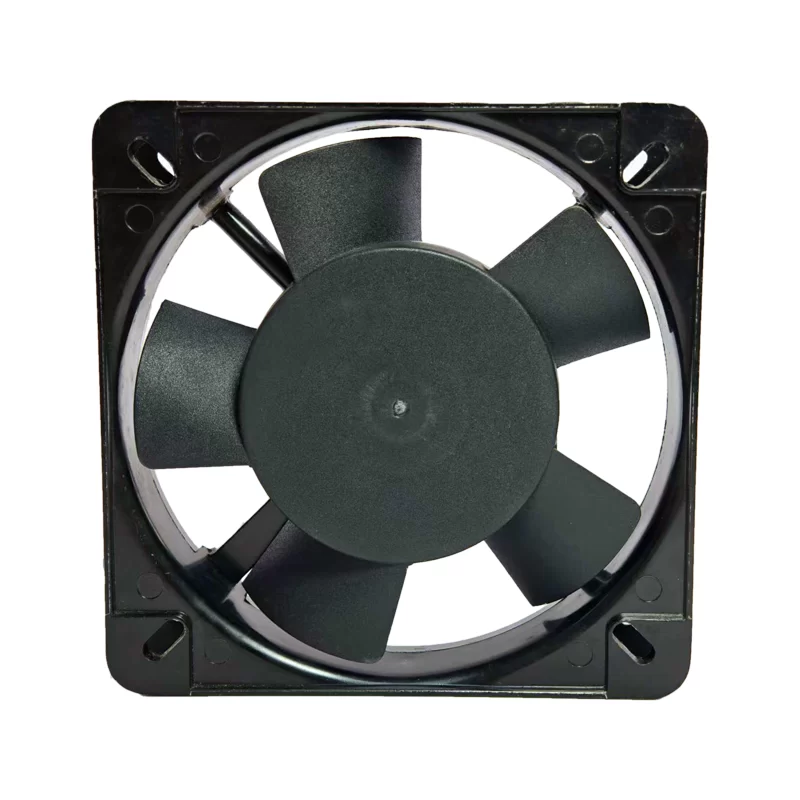

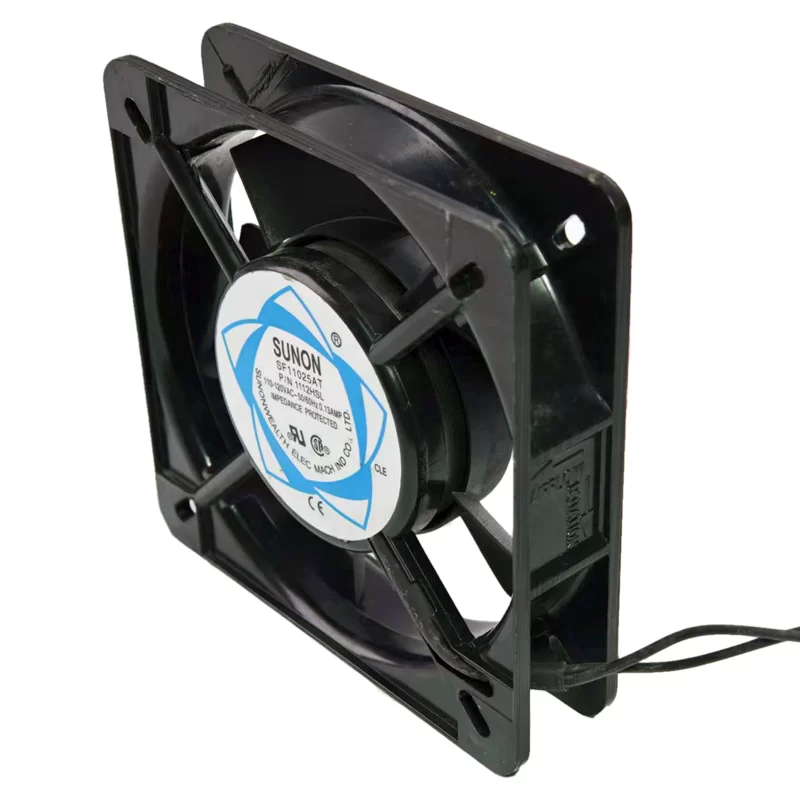

SF11025AT P/N 1112HSL SUNON 110-120V AC Axial Fan

Description

The SUNON SF11025AT P/N 1112HSL is an AC Axial Fan with dimensions of 110x110x25mm, designed for operation on 110-120VAC at both 50Hz and 60Hz. It draws 0.13A, with a power consumption of approximately 14W. This model features durable sleeve bearings, a robust aluminum alloy frame, and a plastic (UL94V-0 PBT) impeller. It includes impedance protection for the motor and connects via 2-wire leads. It is commonly used in power supplies, industrial equipment, ventilation systems, and other general cooling applications where reliable and efficient airflow is needed.

SF11025AT P/N 1112HSL Fan Parameters
Model: SF11025AT P/N 1112HSL
Manufacturer: SUNON
Type: AC Axial Fan
Dimensions: 110 x 110 x 25 mm
Nominal Voltage: 110-120 V AC
Frequency: 50/60 Hz
Rated Current: 0.13 A
Power Consumption: 14 W
Bearing Type: Sleeve Bearing
Frame Material: Aluminum alloy
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy: 30000 h at 40°C
Termination: 2-wire leads
Motor Protection: Impedance Protected
Approval: UL, TUV, CE
Application: Power supplies, industrial equipment, ventilation systems, and general cooling applications.
