Description
The Sunon SF23080A 2083HBL.GN is a reliable and robust AC Axial Cooling Fan designed for continuous operation in various electronic and industrial applications. Operating on a 220-240V AC power supply, its performance varies slightly with frequency: at 50Hz, it draws 0.09A (18W), producing 24 CFM of airflow at 2400 RPM and 32 dBA of noise; at 60Hz, it draws 0.08A (16W), delivering 31 CFM at 2850 RPM and 36.5 dBA. Measuring 80mm x 80mm x 38mm, this fan is built with a durable die-cast aluminum frame and a PBT impeller. Equipped with 2-wire leads and a precision ball bearing system, it ensures a long operational lifespan and quiet performance for an AC fan of its class. Features like impedance protection and various international safety approvals (CE, CUR, TUV, UL) make the SF23080A 2083HBL.GN a common choice for cooling in cabinets, control panels, and industrial machinery.

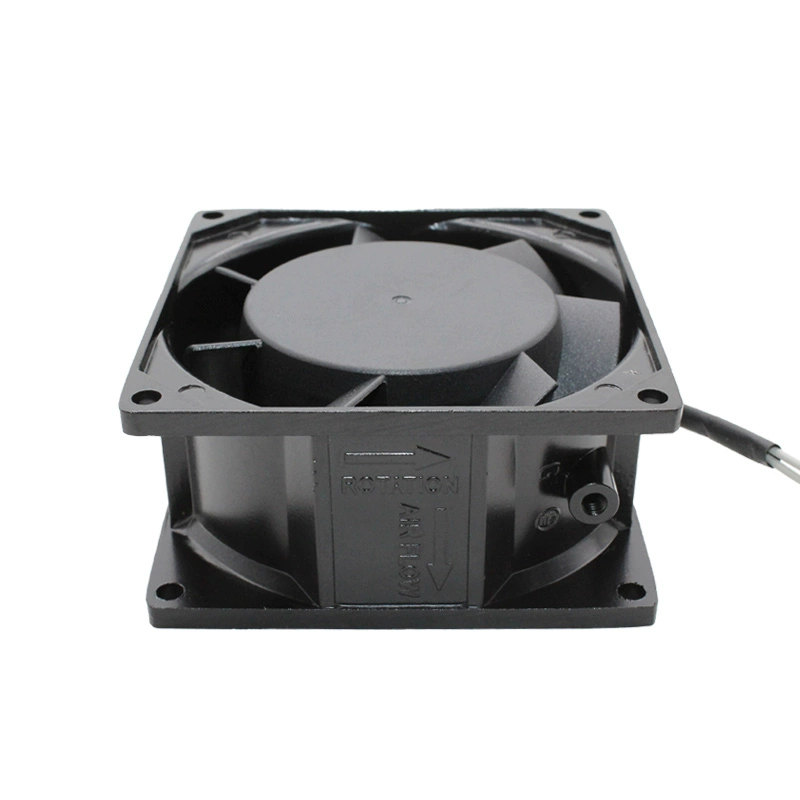

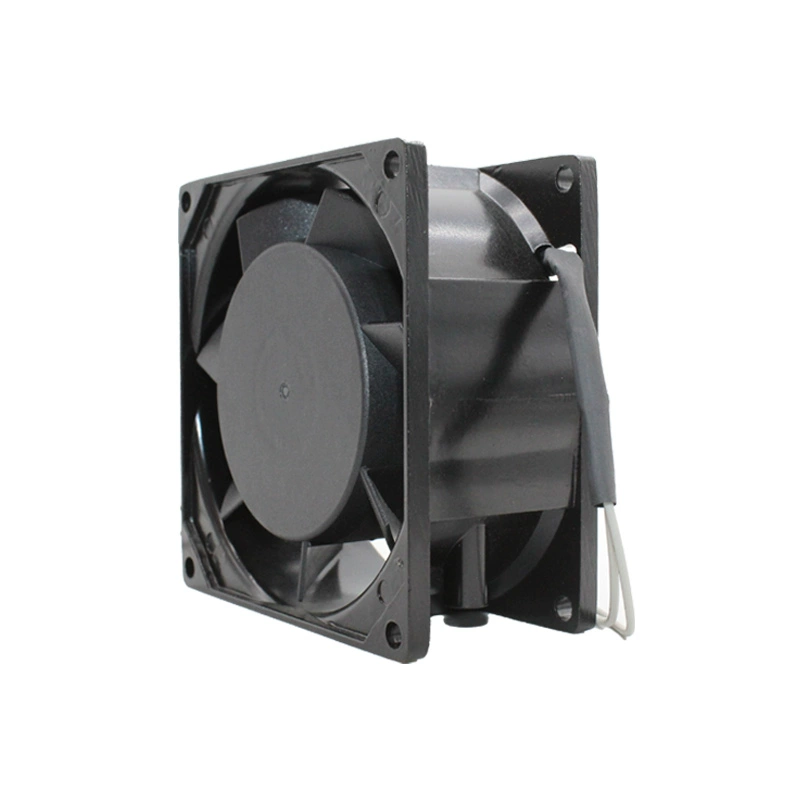

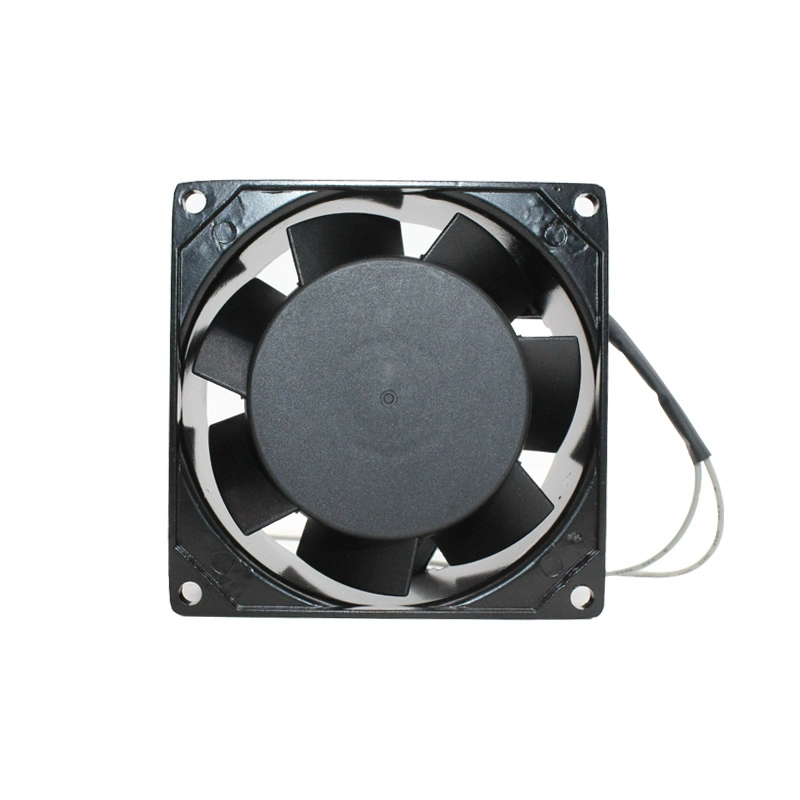

SF23080A 2083HBL.GN Built-in SUNON AC 220V AC8038 8cm axial flow cabinet fan
Manufacturer: Sunon
Model Number: SF23080A 2083HBL.GN
Type: AC Axial Cooling Fan
Rated Voltage: 220-240V AC
Rated Current:
50Hz: 0.09A
60Hz: 0.08A
Rated Power:
50Hz: 18W
60Hz: 16W
Speed:
50Hz: 2400 RPM
60Hz: 2850 RPM
Airflow:
50Hz: 24 CFM
60Hz: 31 CFM
Static Pressure:
50Hz: 0.13 inH2O (32.3 Pa)
60Hz: 0.19 inH2O (47.3 Pa)
Noise Level:
50Hz: 32 dBA
60Hz: 36.5 dBA
Dimensions: 80mm x 80mm x 38mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing (Precision Ball Bearing System)
Operating Temperature: -10°C to +70°C
Features: Impedance Protected Motor, RoHS Compliant, CE, CUR, TUV, UL Approved
Material:
Frame: Die-Cast Aluminum
Impeller: Thermoplastic PBT of UL 94V-0
