SF23080AT 2082HBL.GN SUNON 220-240V AC axial fan

Description

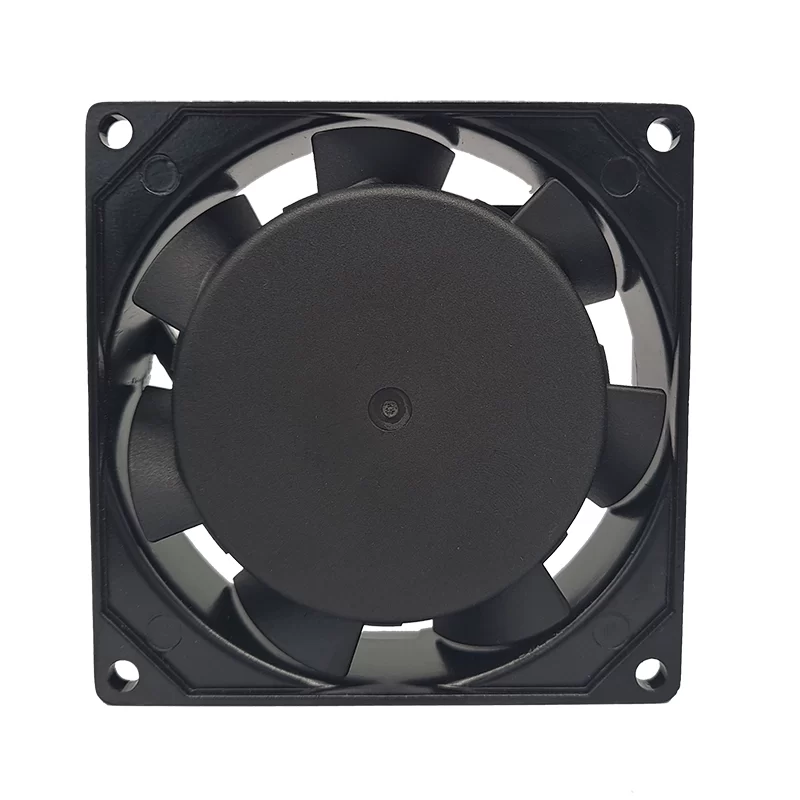

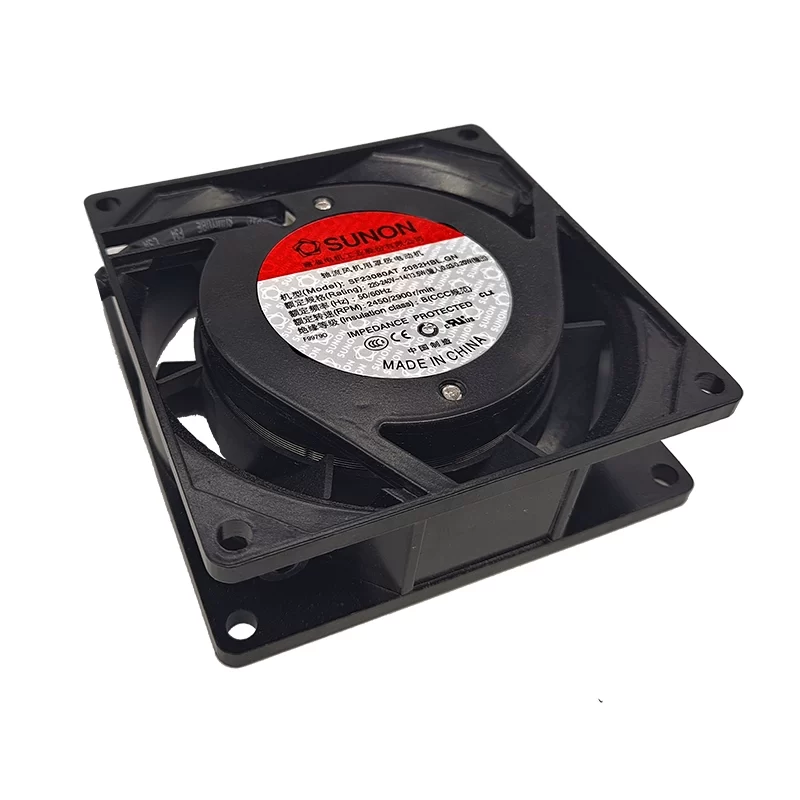

The SUNON SF23080AT 2082HBL.GN is a compact AC axial fan measuring 80x80x25mm. It operates on 220-240 VAC at 50/60 Hz. This fan features ball bearings for reliable operation and connects via 2 wire leads. The frame is made of die-cast aluminum, and the impeller is thermoplastic (PBT) with a UL94V-0 flammability rating. It incorporates a shaded-pole motor with impedance protection. For 50 Hz operation, it typically draws 0.07 A with a power consumption of 14 W, achieving a speed of 2450 RPM, an airflow of 18 CFM (approximately 0.51 m³/min), and a noise level of 30 dB(A). For 60 Hz operation, it also typically draws 0.07 A with a power consumption of 13.5 W, achieving a speed of 2900 RPM, an airflow of 22 CFM (approximately 0.62 m³/min), and a noise level of 34.5 dB(A). This fan is commonly used in computer cases, CPU cooling, cabinet ventilation, and various electronic equipment applications requiring compact and durable AC cooling.
Model: SF23080AT 2082HBL.GN
Manufacturer: SUNON
Type: AC Axial Fan
Dimensions: 80x80x25 mm
Rated Voltage: 220-240 VAC
Operating Voltage Range: 185 to 245 VAC
Frequency: 50/60 Hz
Rated Current: 0.07 A (at 50 Hz) / 0.07 A (at 60 Hz)
Power Consumption: 14 W (at 50 Hz) / 13.5 W (at 60 Hz)
Speed: 2450 RPM (at 50 Hz) / 2900 RPM (at 60 Hz)
Speed Tolerance: ±10%
Airflow: 18 CFM (0.51 m³/min) (at 50 Hz) / 22 CFM (0.62 m³/min) (at 60 Hz)
Static Pressure: 0.13 inH2O (at 50 Hz) / 0.19 inH2O (at 60 Hz)
Noise Level: 30 dB(A) (at 50 Hz) / 34.5 dB(A) (at 60 Hz)
Bearing Type: Ball Bearing

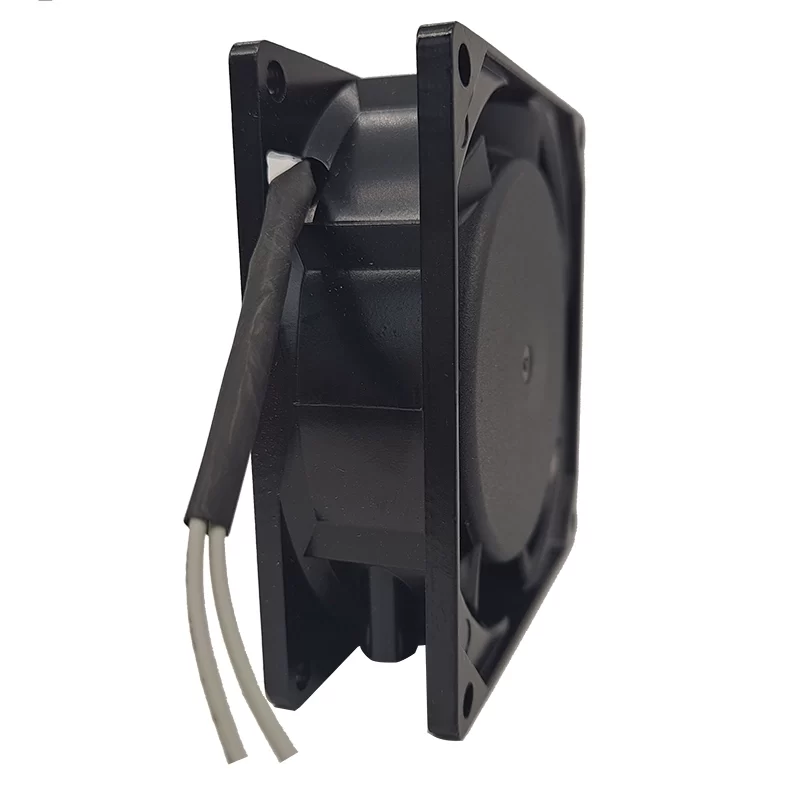

Termination: 2 Wire Leads (typically 300-330mm length)
Frame Material: Die-cast Aluminum
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Resistance: 500 MΩ minimum (at 500 VDC)
Dielectric Strength: 1500 VAC for 1 second
Motor Protection: Impedance Protected (Shaded-pole motor)
Operating Temperature: -10 to 70°C (some sources list up to 90°C)
Expected Life: 50,000 hours (at 25°C)
Weight: 0.260 kg (260 g)
Application: Computer cases, CPU cooling, cabinet ventilation, general electronic equipment.
