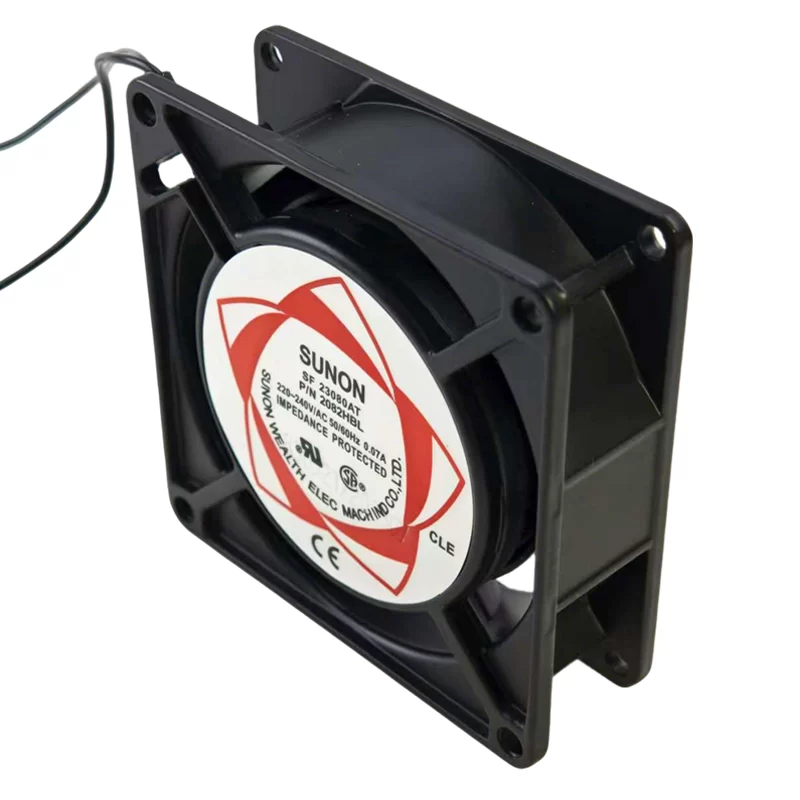

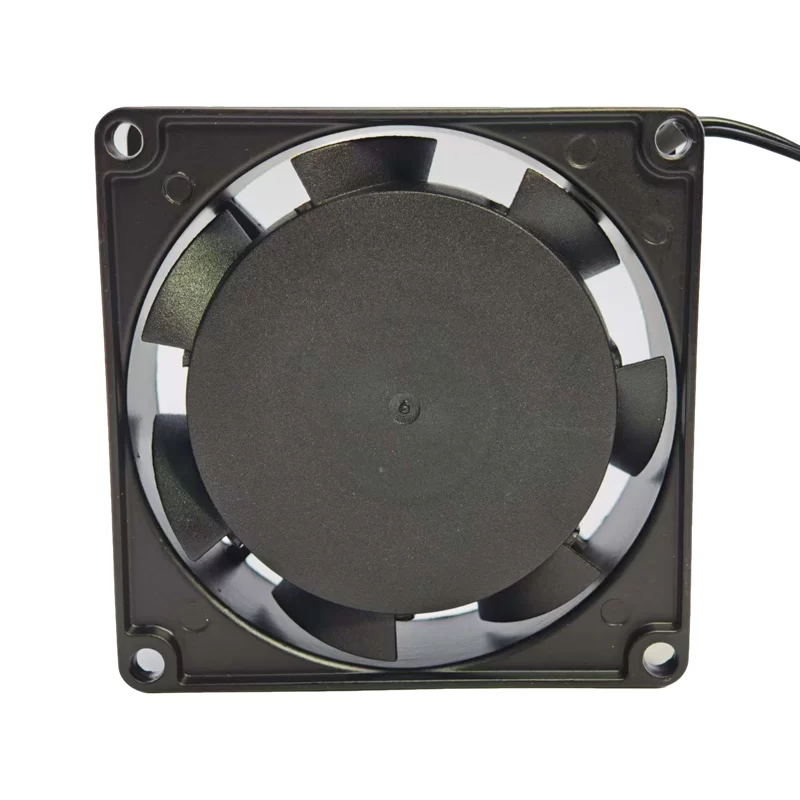

SF23080AT P/N 2082HBL SUNON 220-240V AC Axial Fan

Description

The SUNON SF23080AT P/N 2082HBL is a 220-240VAC AC axial fan with dimensions of 80 x 80 x 25 mm. It is designed for operation at two frequencies, 50Hz and 60Hz, with performance specifications varying accordingly. At 50Hz, it draws 0.07A of current, consumes 14W of power, provides 30.6m³/h (18CFM) of airflow, achieves 32.4Pa (0.13 inch H₂O) of static pressure, and operates at 2450RPM with a noise level of 30dB(A). When running at 60Hz, it draws 0.07A of current, consumes 13.5W of power, delivers 37.4m³/h (22CFM) of airflow, achieves 47.3Pa (0.19 inch H₂O) of static pressure, and runs at 2900RPM with a noise level of 34.5dB(A). This fan utilizes a precision ball bearing system, features a die-cast aluminum frame with a thermoplastic (UL 94V-0 PBT) impeller, and is terminated with two wire leads. It has a reliable shaded-pole motor with impedance protection and is suitable for ambient temperatures from -10 to 70°C. It is ideal for cooling in compact electronic enclosures, industrial control cabinets, and general ventilation where reliable airflow is required.

SF23080AT P/N 2082HBL Fan Parameters
Manufacturer: SUNON
Model: SF23080AT P/N 2082HBL
Fan Type: AC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 220-240 VAC
Operating Frequency: 50 Hz / 60 Hz

Performance at 50 Hz:
Current Rating: 0.07 A
Power Consumption: 14 W
Airflow: 30.6 m³/h (18 CFM)
Static Pressure: 32.4 Pa (0.13 inch H₂O)
Speed: 2450 RPM
Noise Level: 30 dB(A)

Performance at 60 Hz:
Current Rating: 0.07 A
Power Consumption: 13.5 W
Airflow: 37.4 m³/h (22 CFM)
Static Pressure: 47.3 Pa (0.19 inch H₂O)
Speed: 2900 RPM
Noise Level: 34.5 dB(A)

Bearing Type: Ball Bearing
Termination: Two Wire Leads
Motor Design: Shaded-Pole Motor
Motor Protection: Impedance Protected
Housing Material: Die-cast Aluminum
Impeller Material: Thermoplastic (PBT UL 94V-0)
Operating Temperature: -10 ~ 70°C
Storage Temperature: -40 ~ 70°C
Weight: 0.26 kg
Approval Agency: TUV, UL, CUR, CE

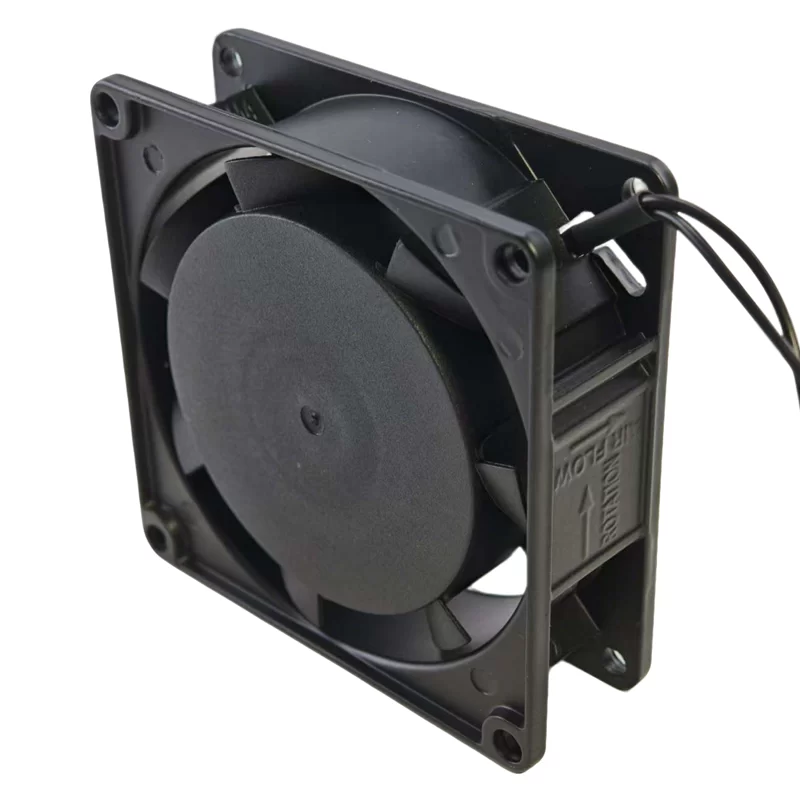

Air Flow Direction: Toward label side
Best Mounting Direction: Any orientation
Application: This SUNON AC axial fan is suitable for cooling in compact electronic enclosures, industrial control cabinets, and general ventilation where reliable airflow is required.
