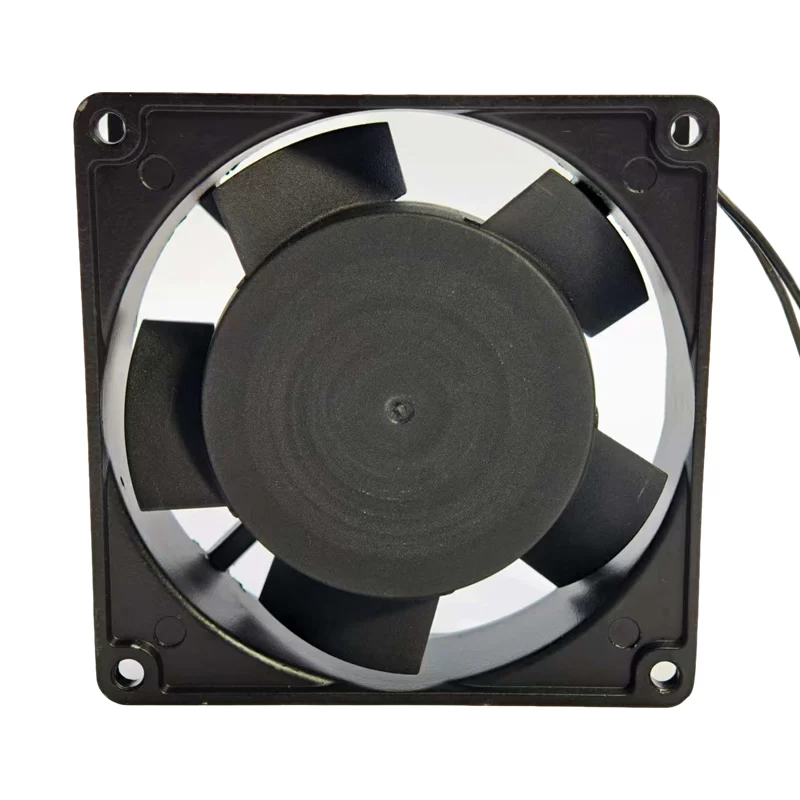

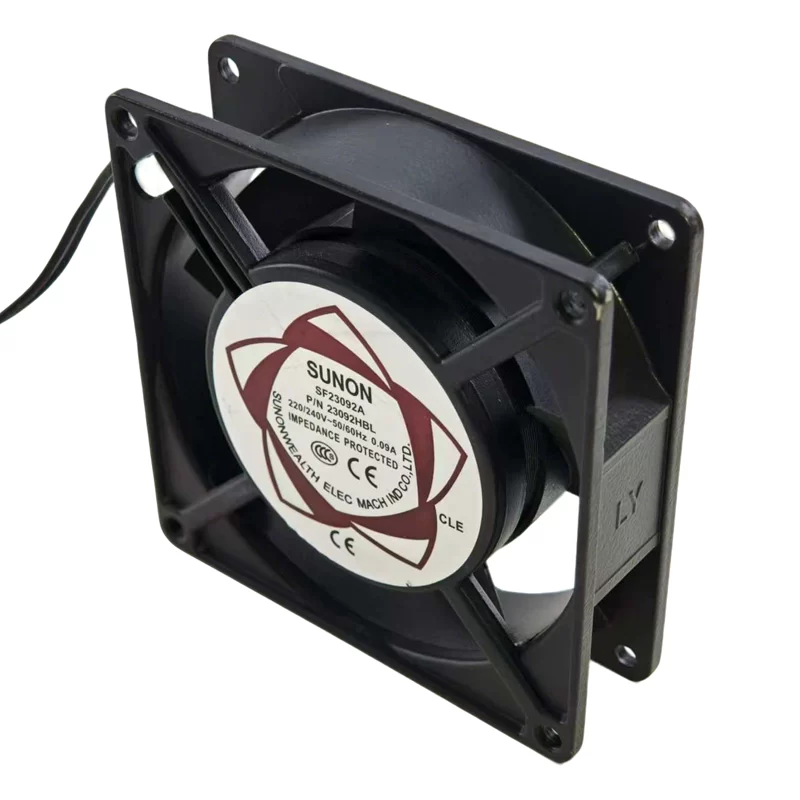

SF23092A P/N 23092HBL SUNON 220-240V AC Axial Fan

Description

The SUNON SF23092A P/N 23092HBL is a high-performance 220-240V AC axial fan with dimensions of 92 x 92 x 25 mm. Designed to operate on 50/60 Hz power supplies, it draws 0.09 A of current, consuming 14.5 W. This fan delivers 37 CFM (62.9 m³/h) of airflow and achieves 0.19 inch H₂O (47.3 Pa) of static pressure. With a speed of 2850 RPM and a noise level of 40 dB(A), it is built with a die-cast aluminum frame, a thermoplastic impeller, and features ball bearings for a long service life. The fan is suitable for cooling in telecommunication cabinets, electrical enclosures, and industrial control systems.

SF23092A P/N 23092HBL Fan Parameters
Manufacturer: SUNON
Model: SF23092A P/N 23092HBL
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 220-240V
Rated Frequency: 50/60 Hz
Current Rating: 0.09 A
Power Consumption: 14.5 W
Airflow: 37 CFM (62.9 m³/h)
Static Pressure: 0.19 inch H₂O (47.3 Pa)
Speed: 2850 RPM
Noise Level: 40 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Thermoplastic PBT
Weight: 280 g
Application: The SF23092A P/N 23092HBL is suitable for cooling in telecommunication cabinets, electrical enclosures, and industrial control systems.
