Description
The SANJUN SG146HA2 is a high-performance 220VAC AC Centrifugal Blower with a 146 mm specialized impeller, specifically engineered for mission-critical cooling in Industrial Frequency Converters and specialized ventilation systems. Driven by a high-torque external rotor motor with precision dual ball bearings, this 4100.0 g unit operates within a 220 – 240 VAC range across 50/60 Hz frequencies, delivering a Max. Power Consumption of 266.0 W and a Max. Current Draw of 1.50 A at a rated speed of 1620 RPM. This High-performance unit features a forward-curved aerodynamic impeller designed for maximum static pressure, achieving a Max. Air Flow of 1000.0 m³/h (588.0 CFM / 16.67 m³/min) and a Max. Static Pressure of 45.90 mmH₂O (450.12 Pa / 1.81 inAq). Featuring a maintenance-free structure and integrated thermal protection, this IP54-rated blower is optimized for environments requiring high-pressure stability and long-term reliability in industrial VFD and power electronics systems at the end.
SG146HA2 Fan Parameters

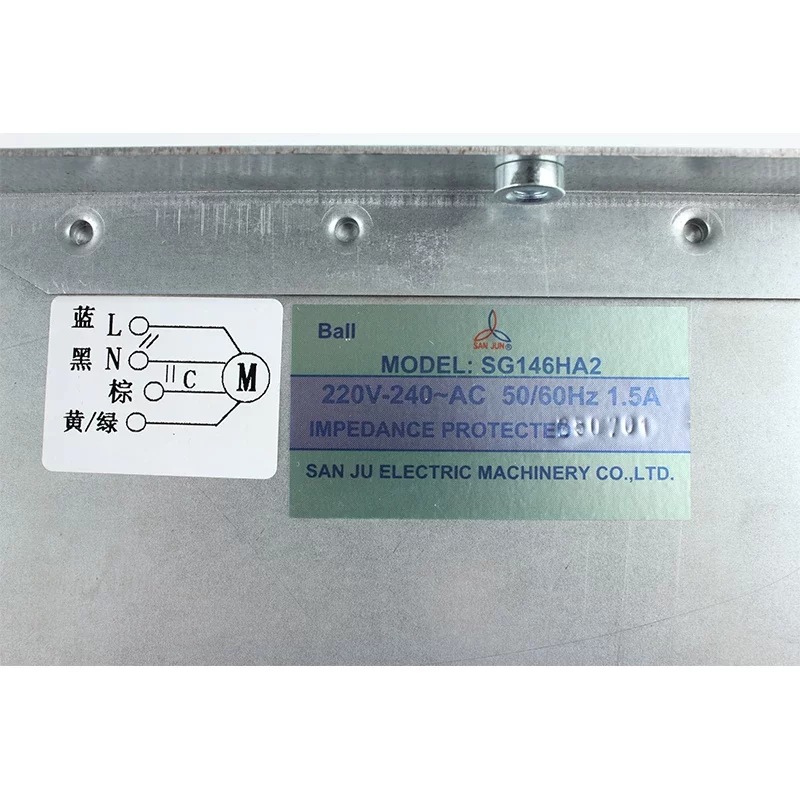

Model Number: SG146HA2
Manufacturer: SANJUN
Type: AC Centrifugal Blower
Impeller Size: 146 mm
Dimensions: 272 x 240 x 205 mm
Weight: 4100.0 g
Bearing Type: Dual ball bearing
Nominal Voltage: 220 VAC
Voltage Range: 220 – 240 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 1.50 A
Max. Power Consumption: 266.0 W
Rated Speed: 1620 RPM
Max. Air Flow: 588.0 CFM (1000.0 m³/h / 16.67 m³/min)
Max. Static Pressure: 45.90 mmH₂O (450.12 Pa / 1.81 inAq)
Working Air Flow: 1000.0 m³/h
Static Pressure Increase: 450.12 Pa
Motor Protection: Thermal overload protector (TOP) wired internally
Insulation Class: Class B
Degree of Protection: IP54
Electrical Hookup: Lead wires
Direction of Rotation: Clockwise (viewed toward rotor)
Impeller Material: Galvanized sheet steel
Frame Material: Die-cast aluminum / Galvanized steel housing
Sound Pressure Level: 66.0 dB(A)
Service Life: 50,000 h (at 40 °C)
Operating Temperature: -20 – +70 °C
Standard Compliance: CE; UL; TUV
Application
The SANJUN SG146HA2 centrifugal blower is the primary cooling component for industrial frequency converters, cabinet climate control, and industrial air curtains requiring robust airflow and high-pressure stability in 220VAC environments.
