Description

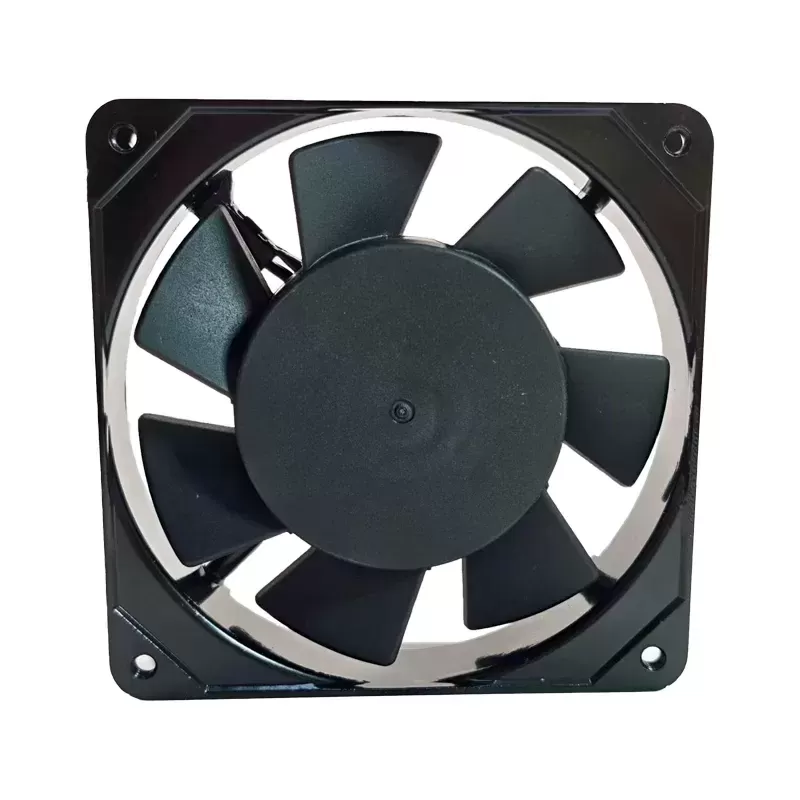

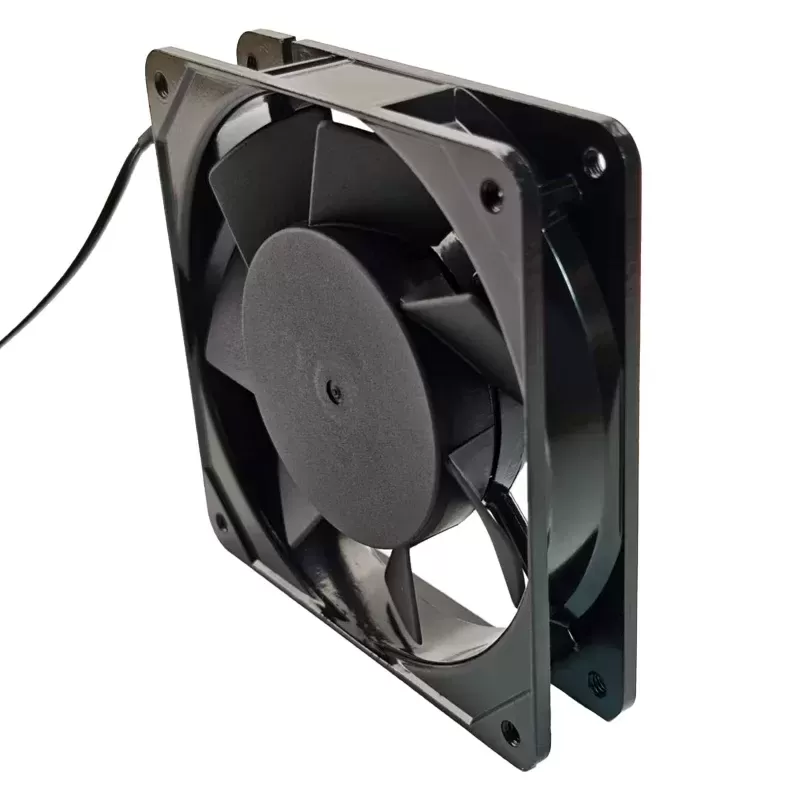

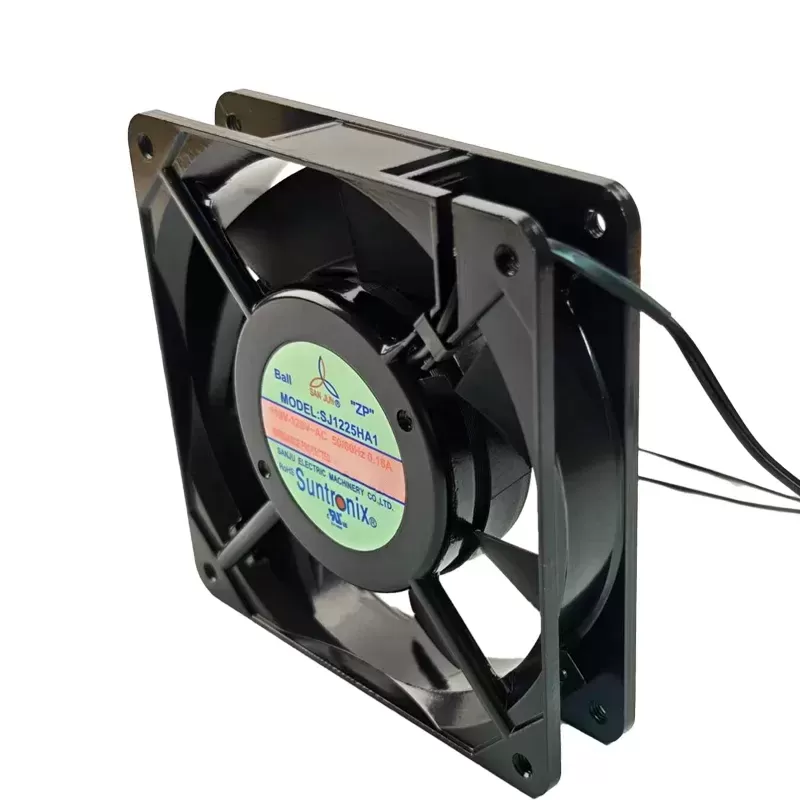

The Sanju SJ1225HA1 is an AC axial fan measuring 120x120x25mm. It operates on 110-120 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.18 A of current. Power consumption is 14 W at 50 Hz and 16 W at 60 Hz. This fan achieves a speed of 2400 RPM at 50 Hz and 2700 RPM at 60 Hz, providing an airflow of 60 CFM at 50 Hz and 76 CFM at 60 Hz, with a static pressure between 0.11 and 0.14 in H2O. The noise level ranges from 40 dB(A) at 50 Hz to 44 dB(A) at 60 Hz. It is available with either ball bearings or sleeve bearings depending on the specific variant and features lead wire termination or a power plug cord. Constructed with a die-cast aluminum frame and thermoplastic impeller, it is designed for cooling and ventilation in various electronic equipment and custom projects.
SJ1225HA1 Fan Parameters
Model: SJ1225HA1
Manufacturer: Suntronix
Type: AC Axial Fan
Dimensions: 120x120x25 mm
Rated Voltage: 110-120 VAC
Voltage Range: 100 – 120 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.18 A
Power Consumption (50Hz / 60Hz): 14 W / 16 W
Speed (50Hz / 60Hz): 2400 RPM / 2700 RPM
Airflow (50Hz / 60Hz): 60 CFM / 76 CFM
Static Pressure (50Hz / 60Hz): 0.11 in H2O / 0.14 in H2O
Noise Level (50Hz / 60Hz): 40 dB(A) / 44 dB(A)
Bearing Type: Ball Bearing or Sleeve Bearing
Termination: Lead Wire or Power Plug Cord (2 wires)
Weight: 0.338 kg (338g)
Frame Material: Die-cast aluminum
Impeller Material: Thermoplastic (Plastic)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Life Expectancy: 67,000 hours (for dual ball bearing variant)
Motor Protection: Not specified
Approval Agency: UL, CE, RoHS
Application: Projects requiring cooling or ventilation, replacement fan for various products.
