Description
Model Number: SJ1225HD2
Product Name: Small Cooling Fan
Dimensions L x H x W: 120 mm x 120 mm x 25 mm
Operating Voltage: DC24V
Operating Current: 0.07A
Product Power: 1.7W
Fan Speed: 2200 r/min
Air Volume: 110 m³/h
Static Pressure: 10 mm-H₂O
Noise: 38 dB
Weight: 140g
Frame Material: Plastic
Fan Blades: Plastic
Life: 50,000H
Working Temperature: -20°C ~ 70°C
Working Humidity: 35% ~ 85% RH
Storage Temperature: -40°C ~ 85°C
Storage Humidity: 20% ~ 95% RH

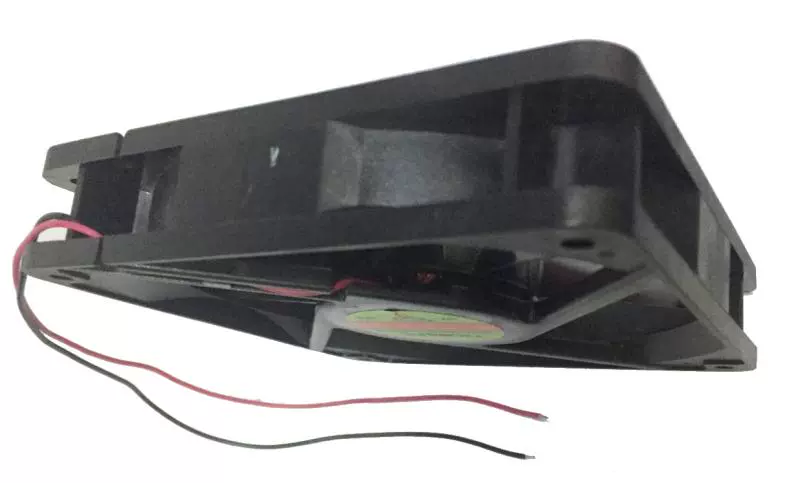

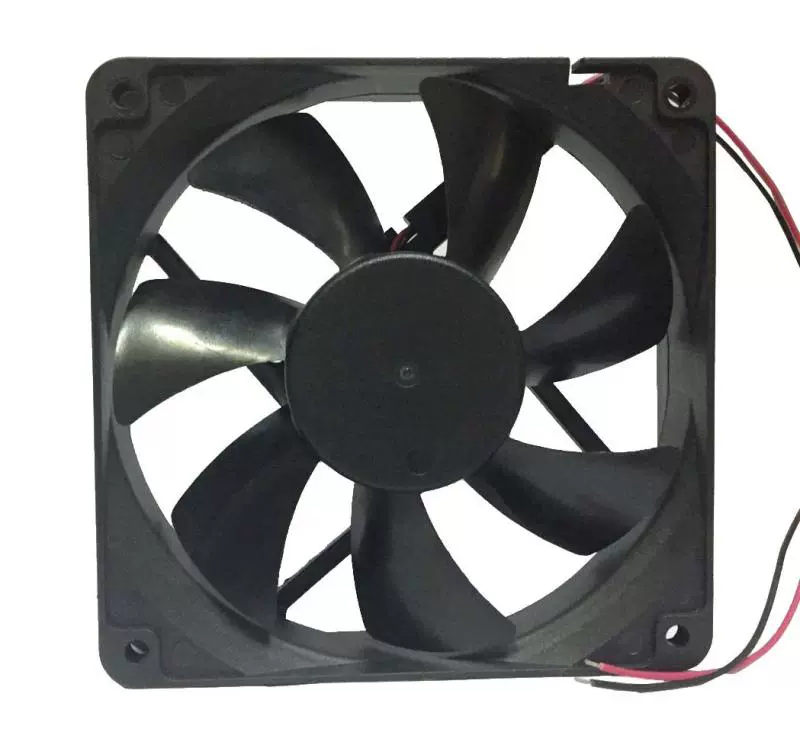

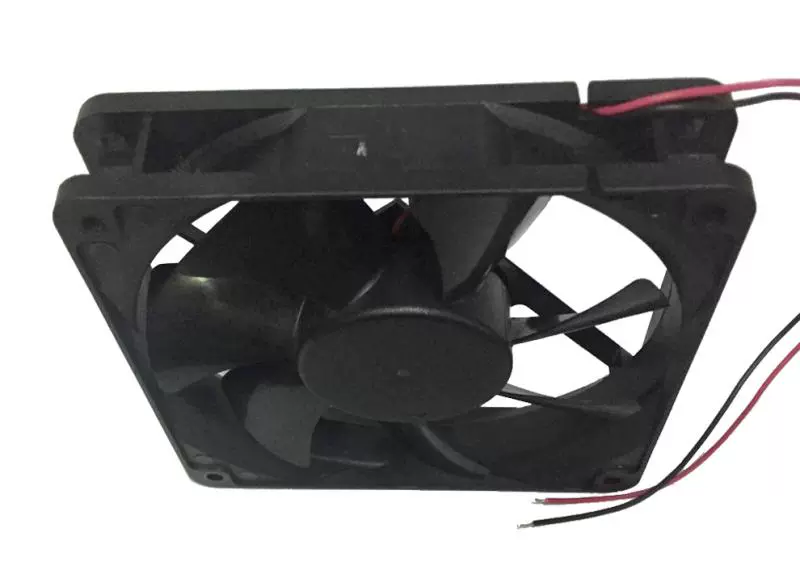

Brand new Taiwan SANJU SJ1225HD2 24V 120*120*25MM Double Ball Bearings Heat Dissipation Fan
The SJ1225HD2 is a compact 120x120x25mm DC cooling fan designed for various electronic applications. Operating on DC24V, it consumes a low 1.7W of power with an operating current of 0.07A. This fan delivers an air volume of 110 m³/h at a speed of 2200 r/min, generating a static pressure of 10 mm-H₂O and a quiet noise level of 38 dB. Constructed with plastic frame and blades, it is lightweight at 140g and has a long expected life of 50,000 hours. It is built to operate reliably across a wide temperature range of -20°C to 70°C and is suitable for various environments.
